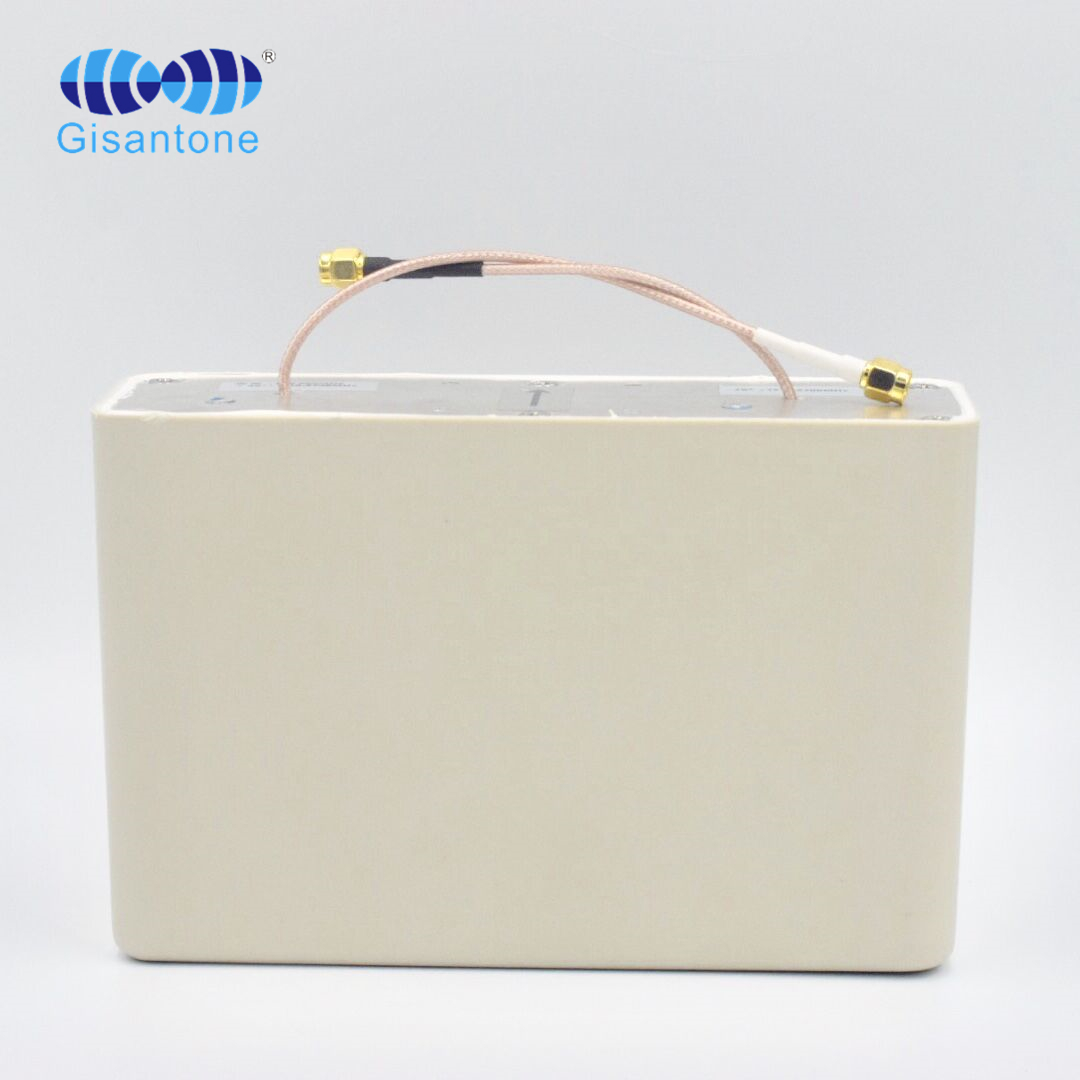

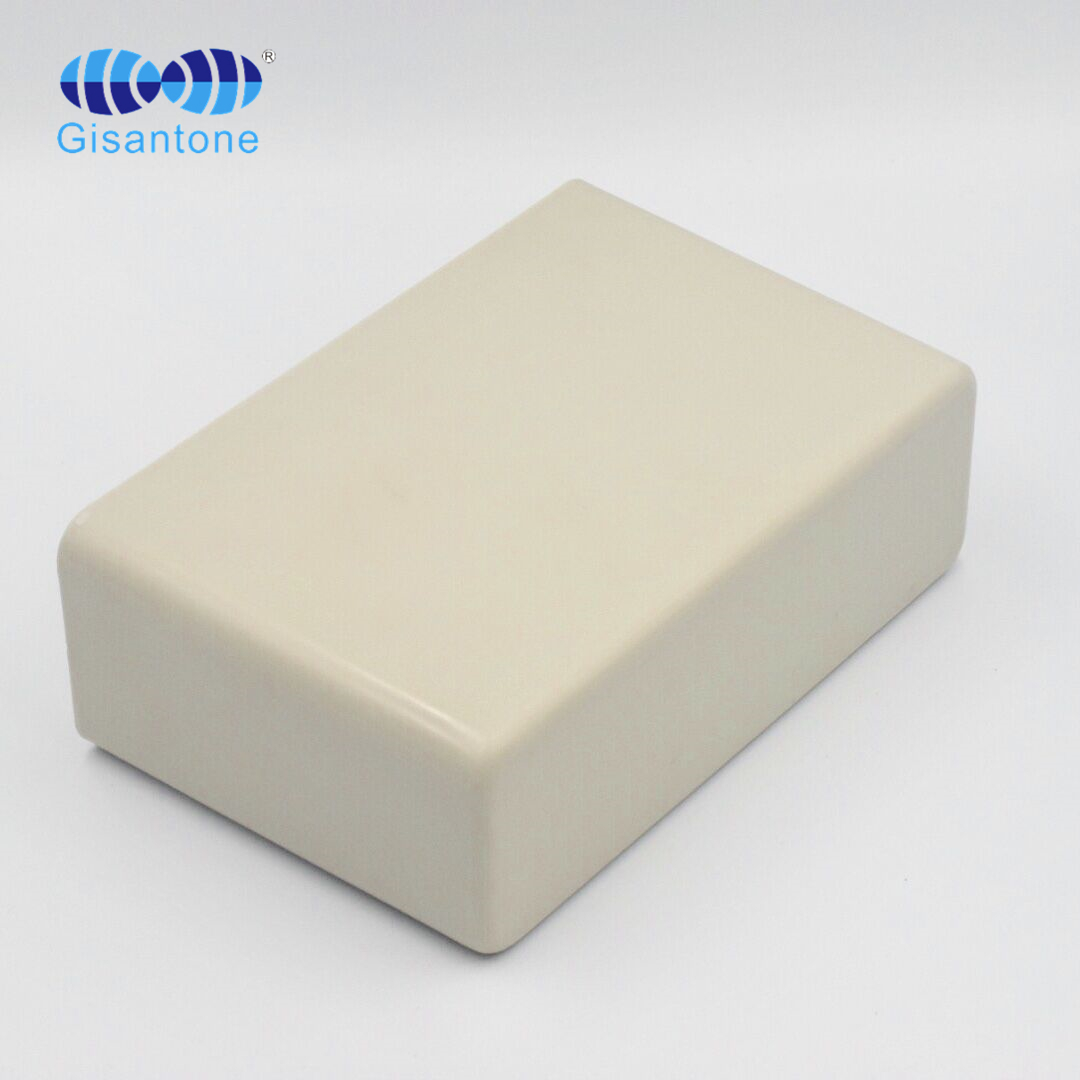

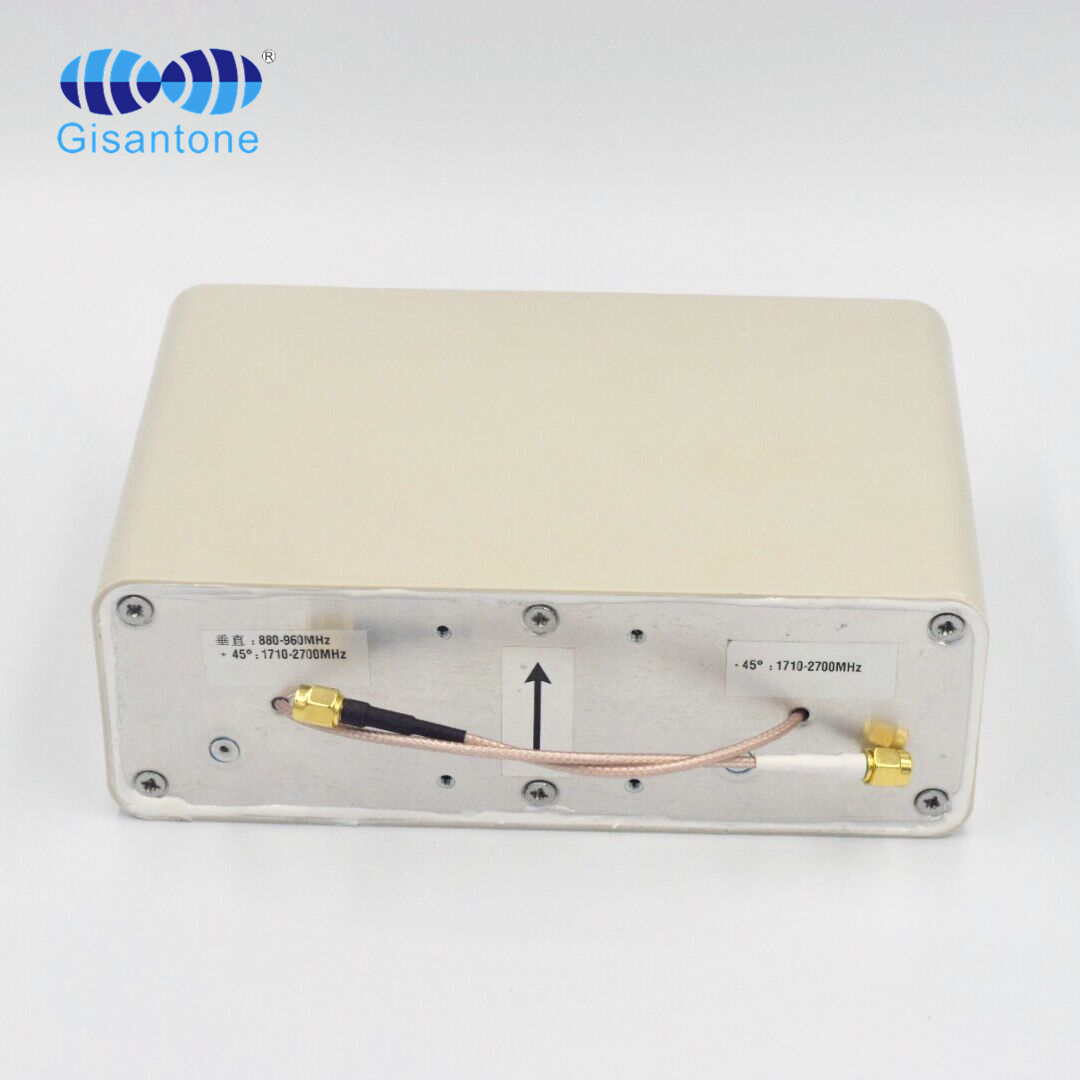

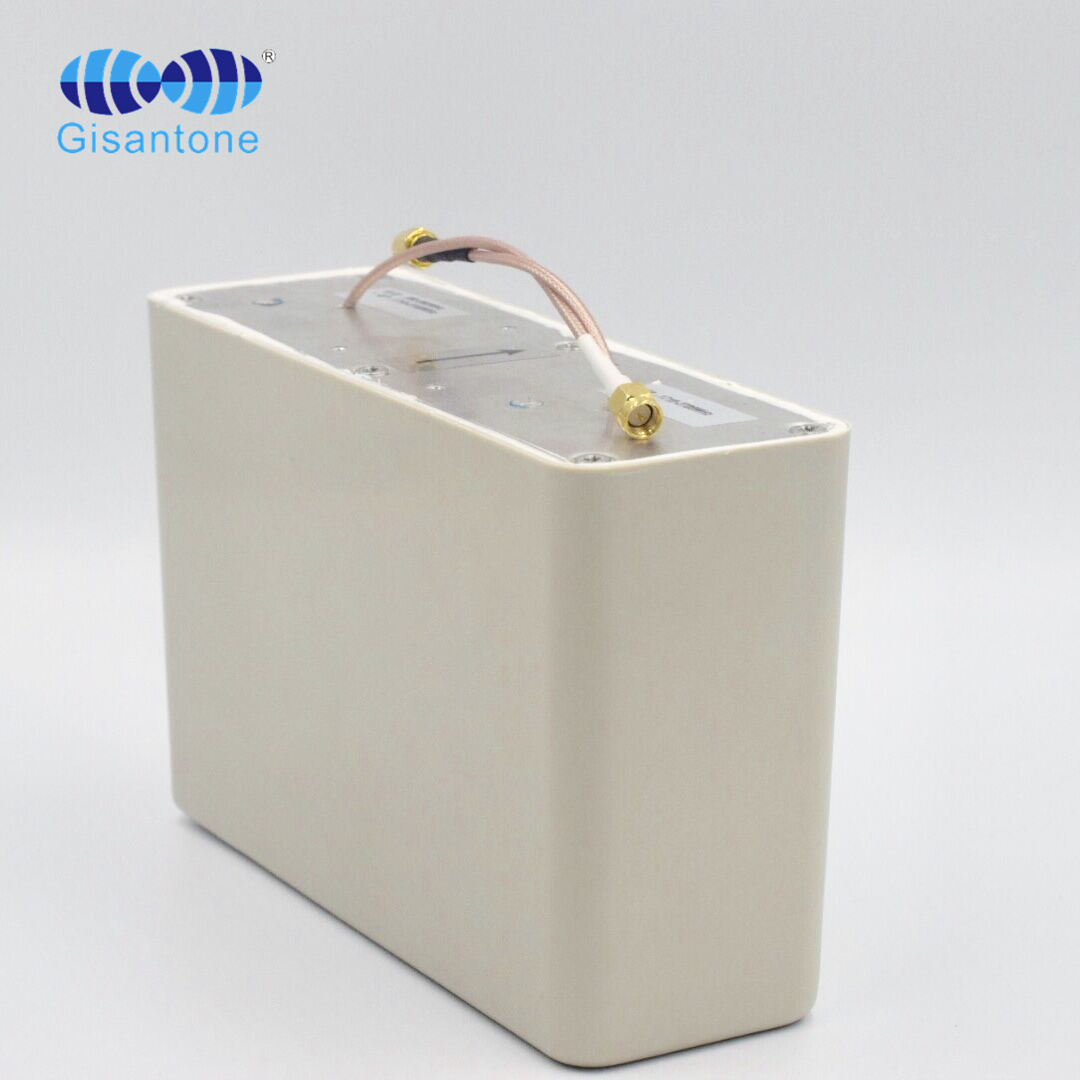

- Name：
880/2700MHz MIMO Panel antenna
- Model No.：
G11522B
- Frequency Range ：
880-960/1710-2700MHz
- Gain：
2*1.5/3.5DBI
- Cable Length：
2*18CM RG316
- Connector：
2*SMA male
|
Electrical Specifications |
||
|
Model No. |
G11522B |
|
|
Frequency Range |
880-960/1710-2700MHz |
|
|
Gain |
1.5dBi |
3.5dBi |
|
VSWR |
≤2.0 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
70° |
85° |
|
Max Input Power |
50W |
|
|
Front to Back Ratio |
≥ 25 dB |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
2*SMA-J |
|
|
Cable Type |
RG316 |
|
|
Cable Length |
2*18CM |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
500g |
|
|
Size |
185x120x65mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna Cover Material |
ABS |
|
|
Color |
Grey |
|
880/2700MHz MIMO Panel antenna
