>5G Antenna
- Name：

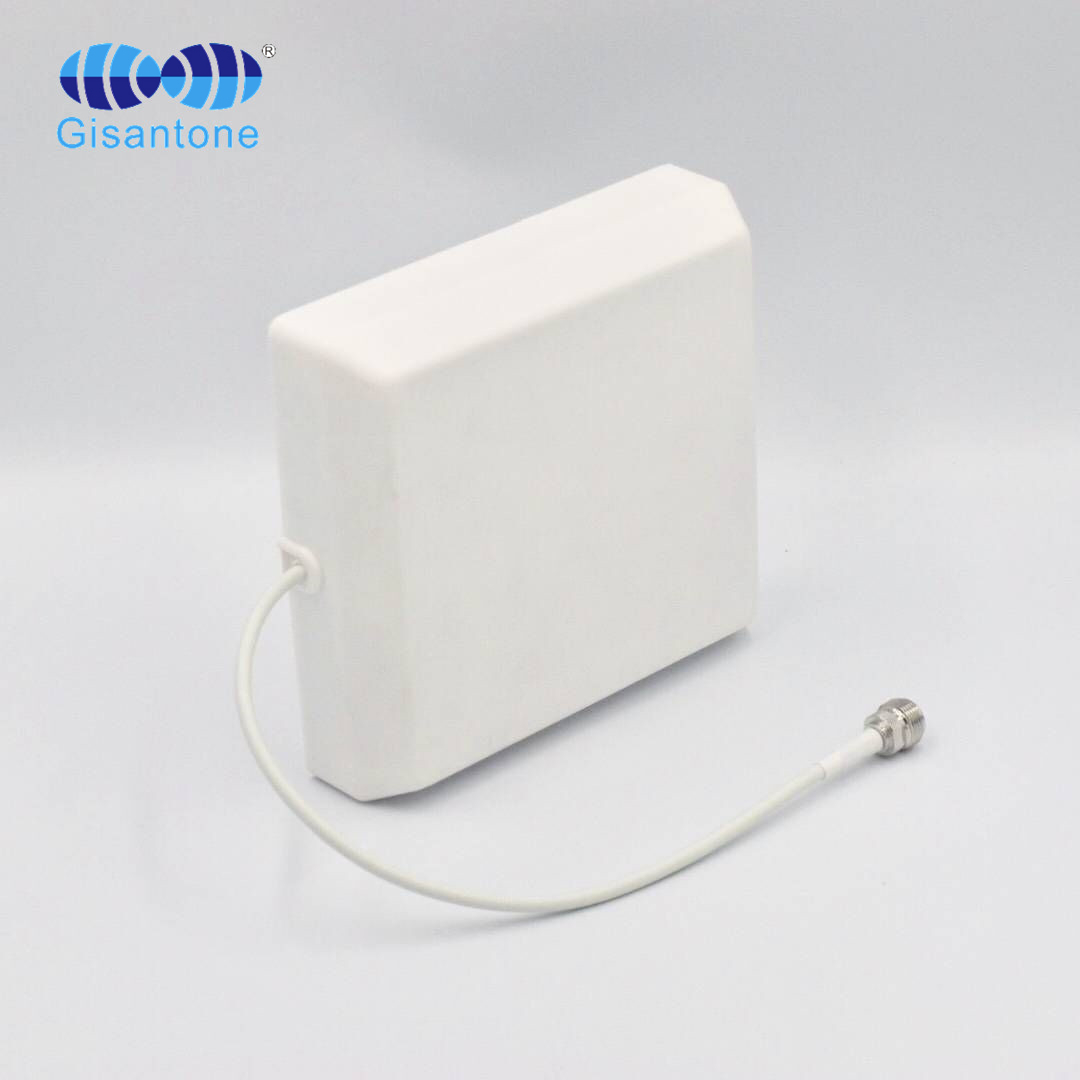

880/2635MHz outdoor type panel antenna
- Model No.：
G15109G
- Frequency Range ：
880-960/1710-2635MHz
- Gain：
7/8DBI
- Cable Length：
0.3M RG58U
- Connector：
N female
|
Electrical Specifications |
||
|
Model No. |
G15109G |
|
|
Frequency Range |
880-960/1710-2635MHz |
|
|
Gain |
7Dbi |
8Dbi |
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Front to Back Ratio |
≥18dB |
|
|
Horizontal Half Power Angle |
56° |
120° |
|
Vertical Half Power Angle |
34° |
80° |
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
N-female |
|
|
Cable Type |
RG58/U |
|
|
Cable Length |
0.3M |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
0.45kg |
|
|

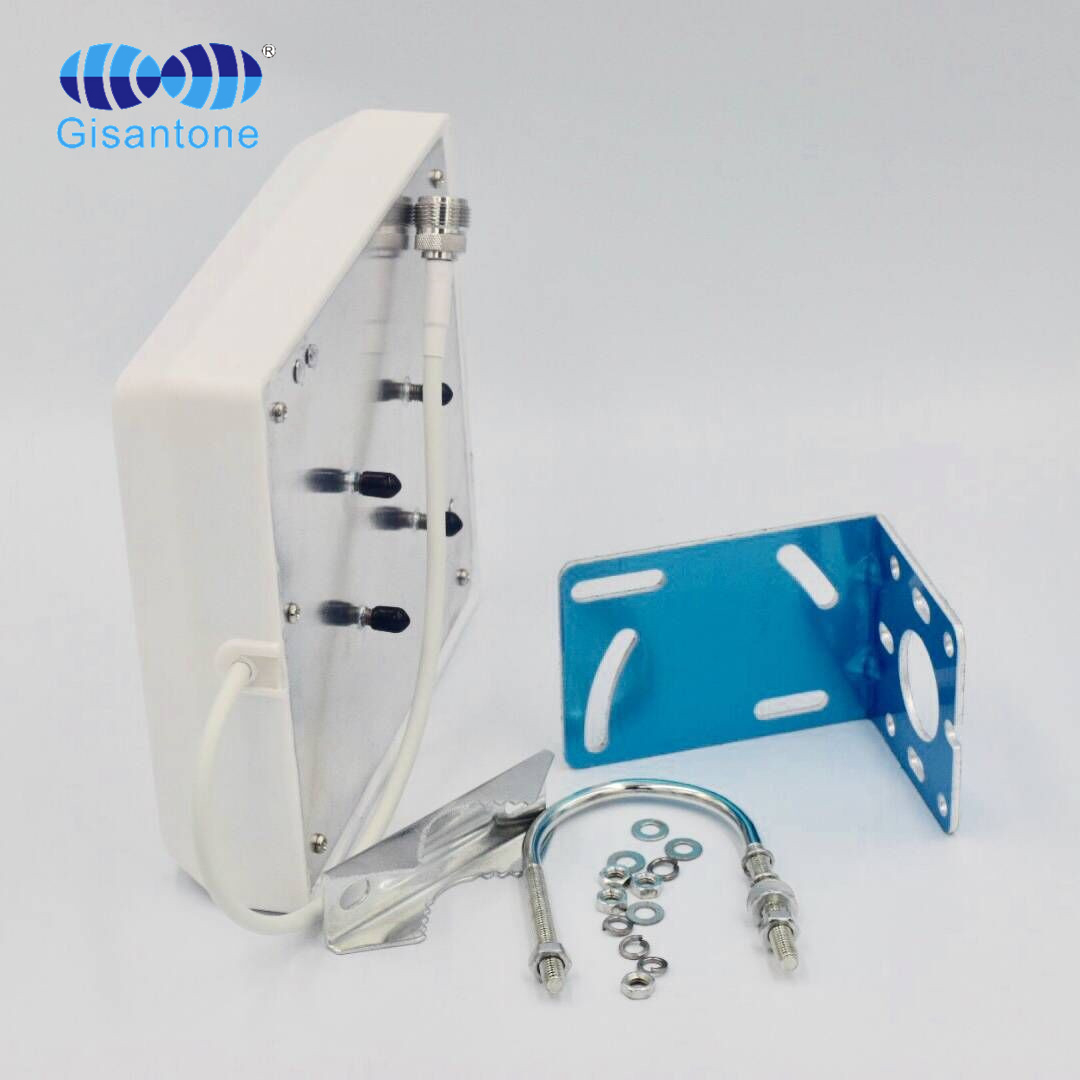

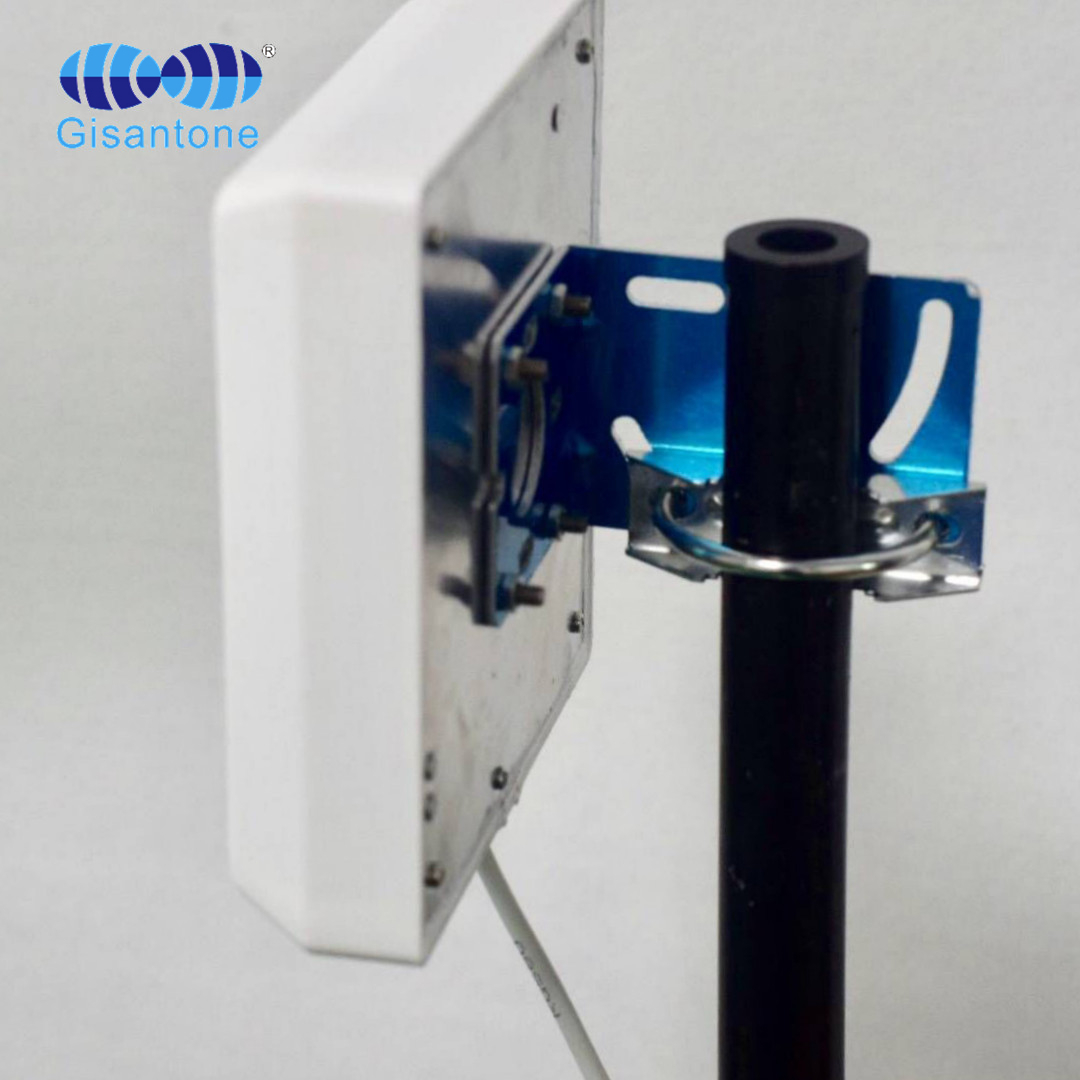

Pole Diameter |
Φ35~φ55mm |
|
|
Size |
165*155*45mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna cover material |
ABS |
|
|

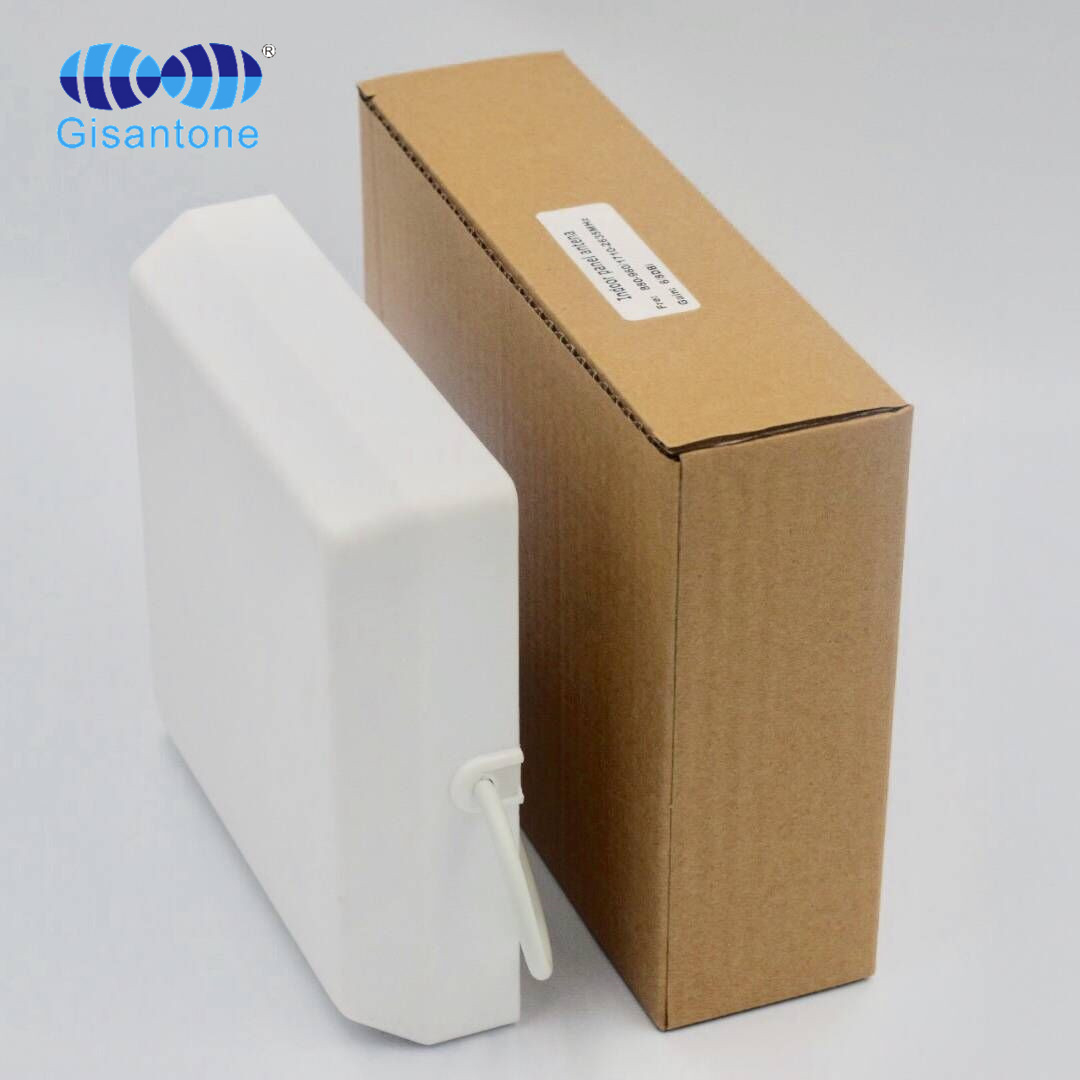

Packages |
65*35*34CM/30pcs |
|
|
Weight |
8.2KG |
|
880/2635MHz outdoor type panel antenna
