- Name：

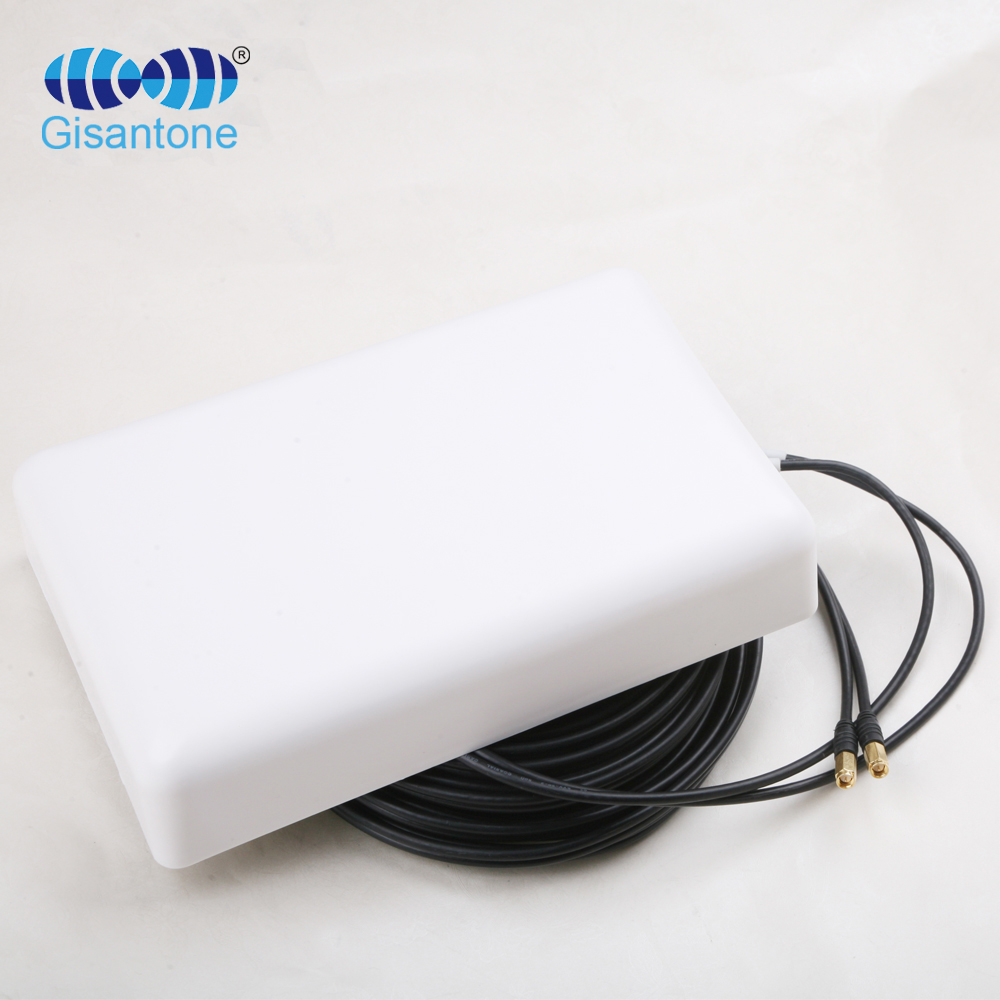

698/2700MHz 6DBi MIMO panel antenna
- Model No.：
G11509A
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
2*6/8DBI
- Cable Length：
2*30CM RG58U
- Connector：
2*SMA male
|
Electrical Specifications |
||
|
Model No. |
G11509A |
|
|
Frequency Range |
698-960MHz |
1710-2700MHz |
|
Gain |
6Dbi |
8Dbi |
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
Horizontal |
|
Front to Back Ratio |
≥12dB |
≥20dB |
|
Horizontal Half Power Angle |
90°±8 |
65°±8 |
|
Vertical Half Power Angle |
80°±5 |
60°±5 |
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|

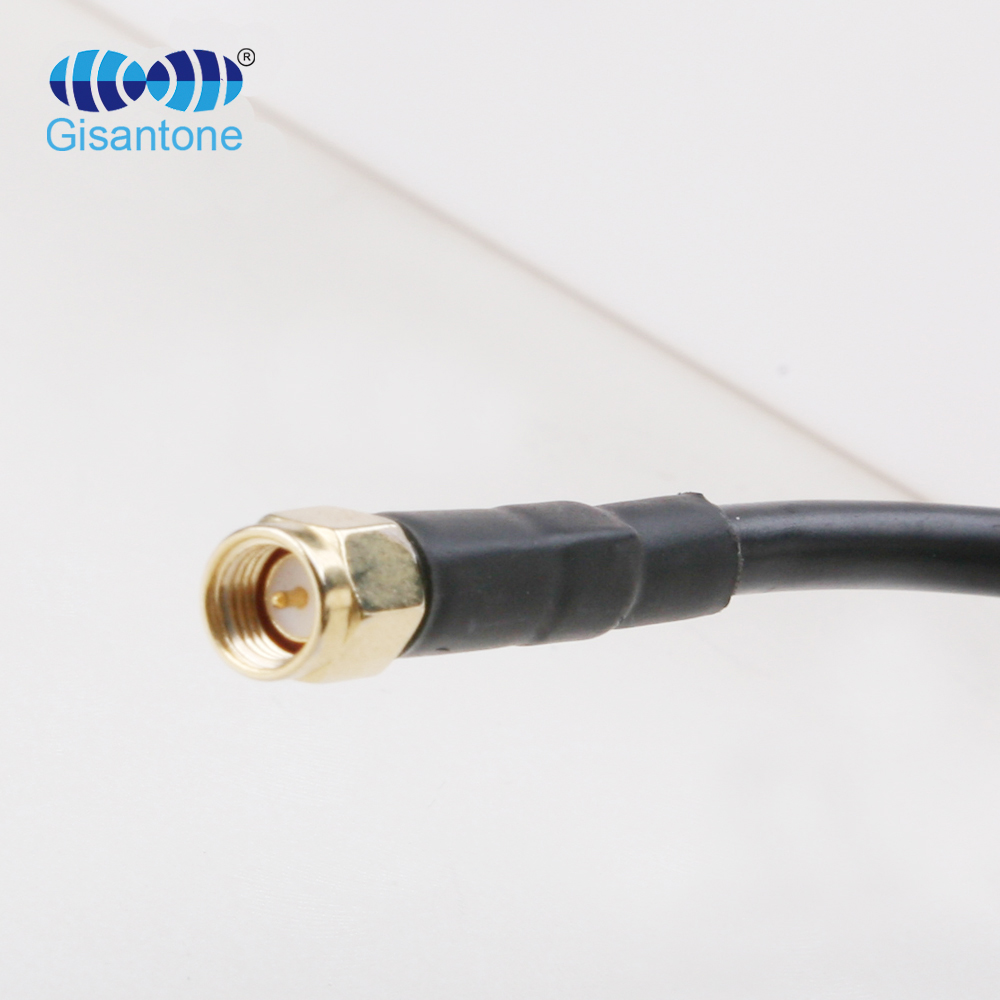

Connector Type |
2*SMA male |
|
|
Cable Type |
RG58U Black |
|
|
Cable Length |
0.3M |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
1.2kg |
|
|
Pole Diameter |
Φ35~φ55mm |
|
|
Size |
280*180*60mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna cover material |
ABS |
|

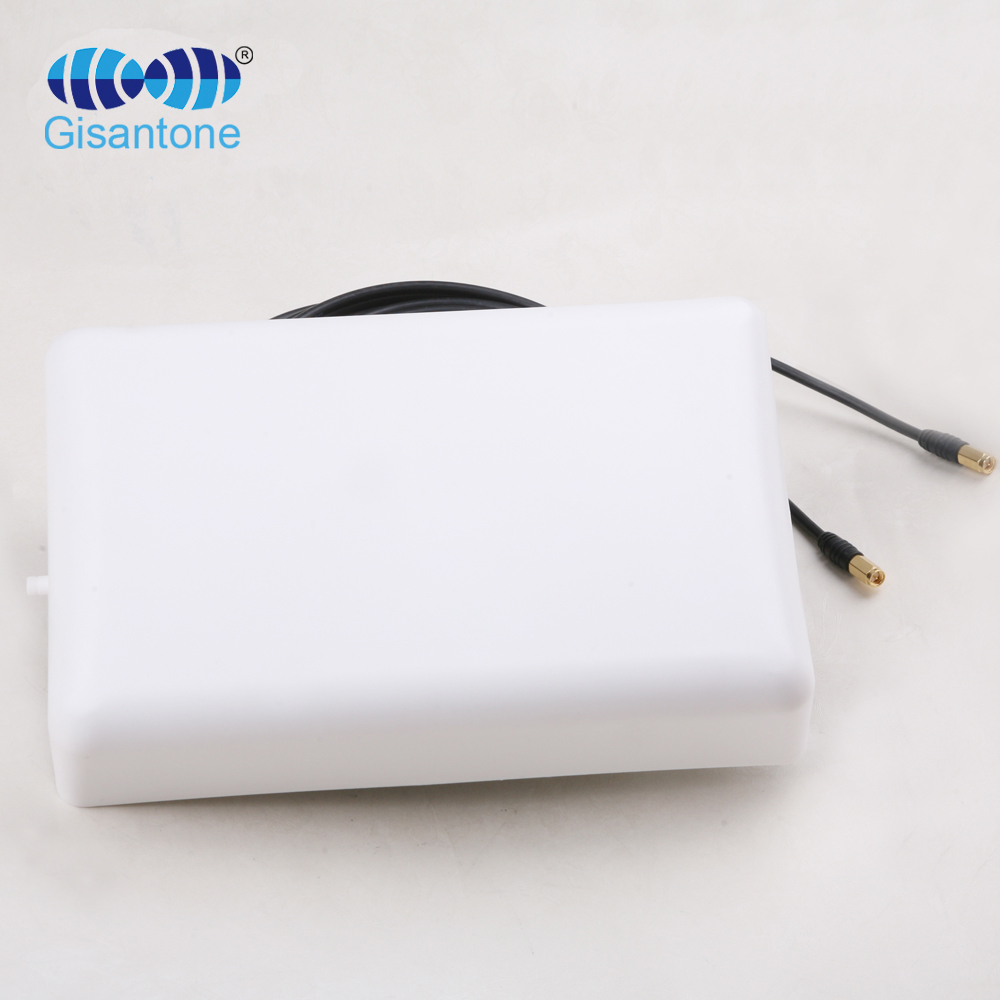

698/2700MHz 6DBi MIMO panel antenna
