- Name：

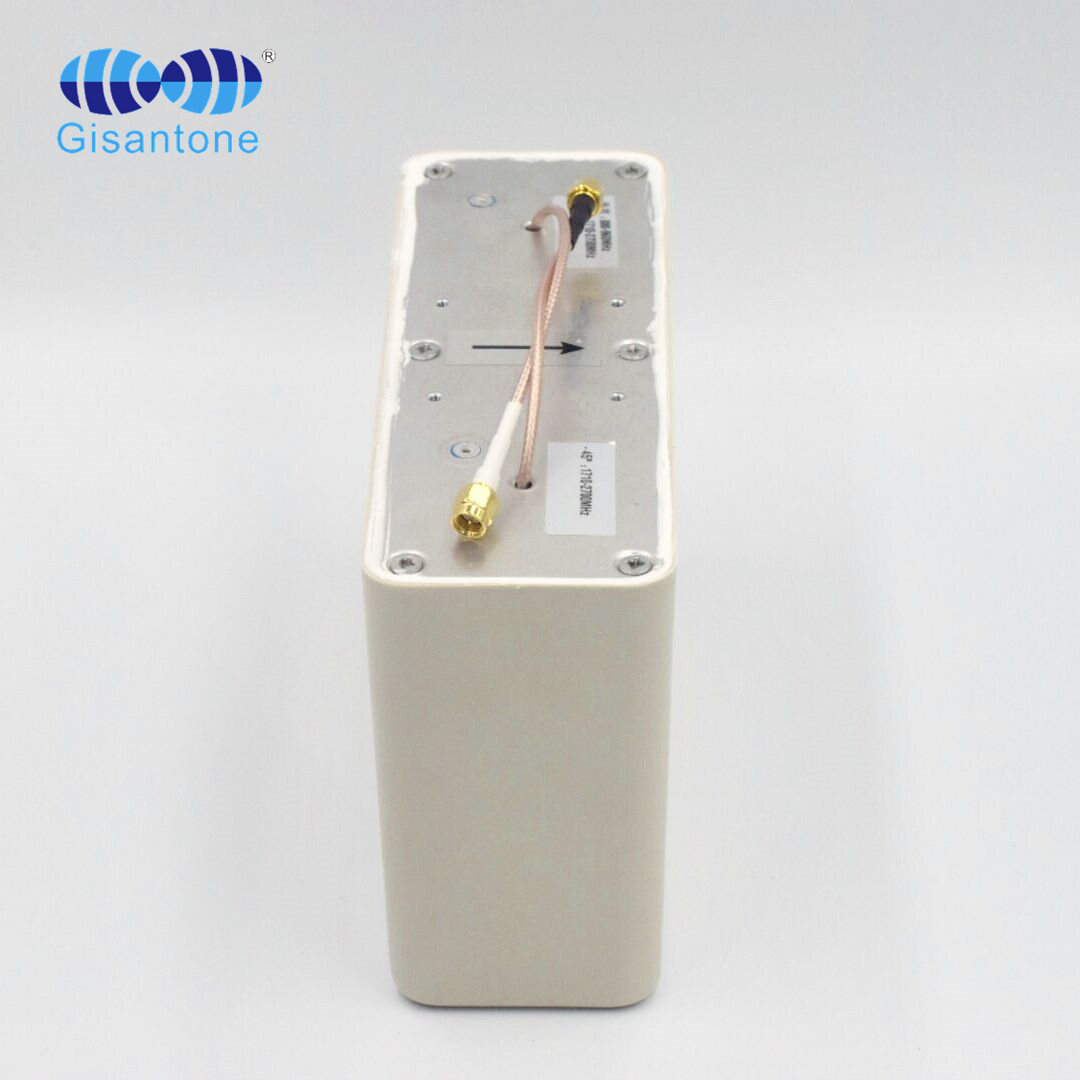

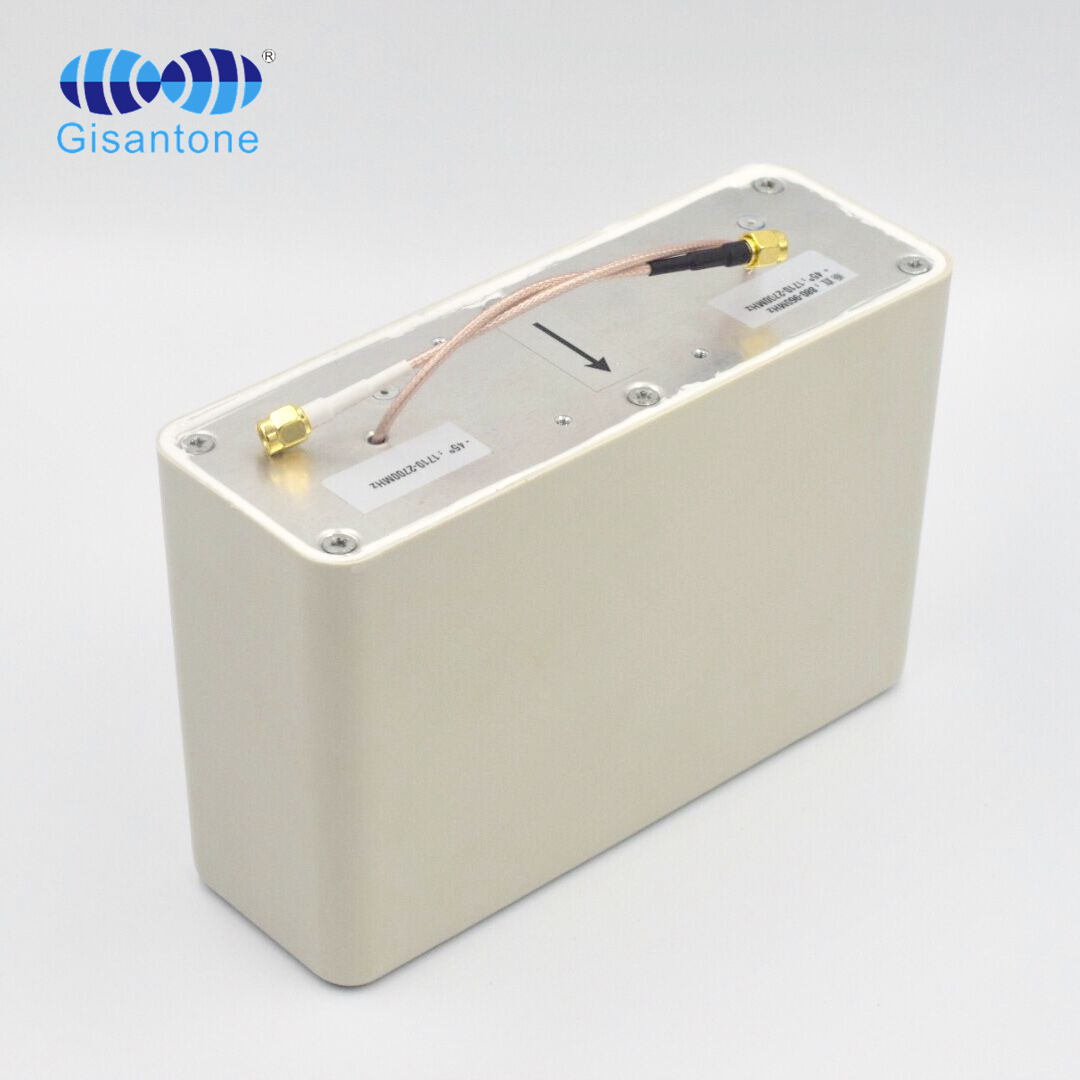

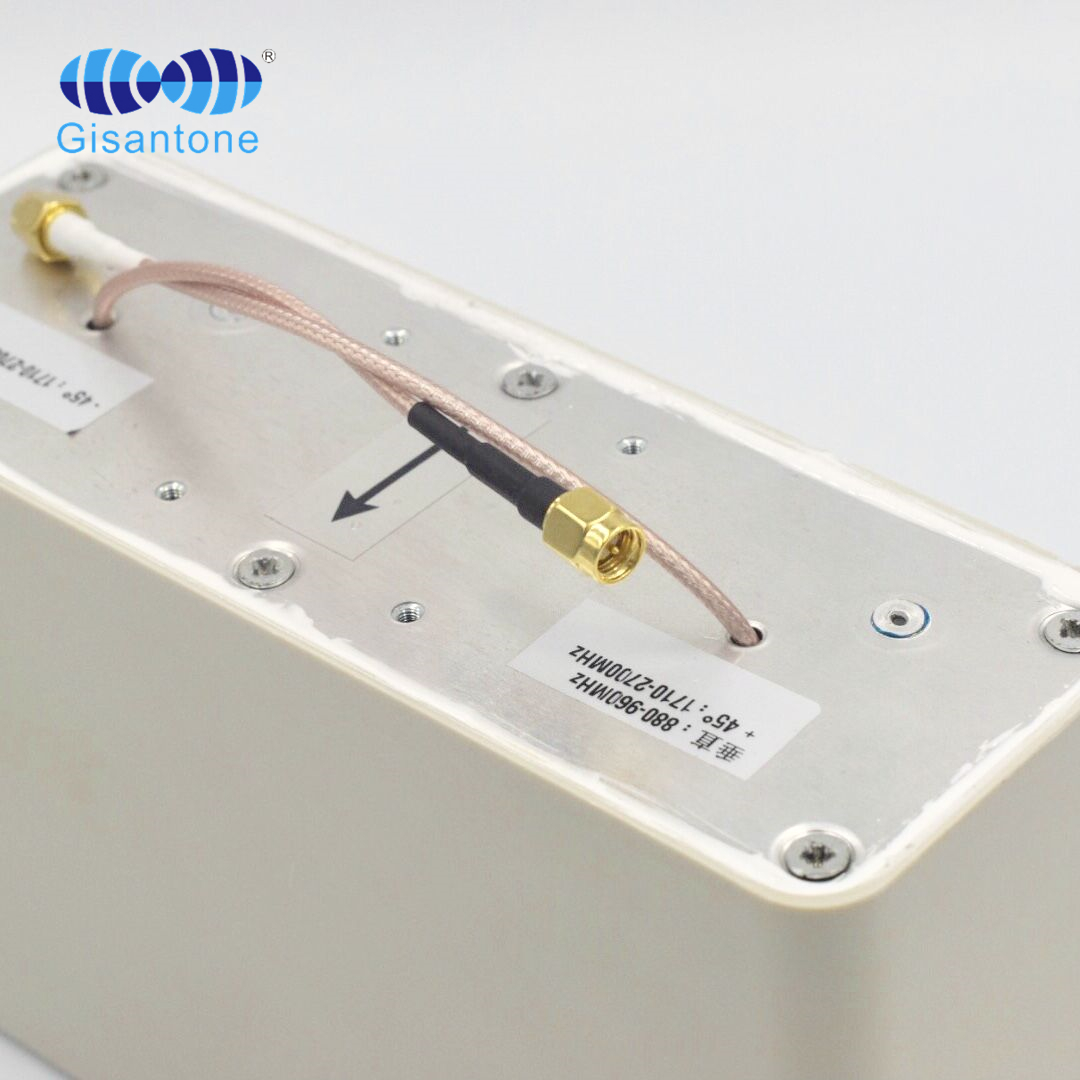

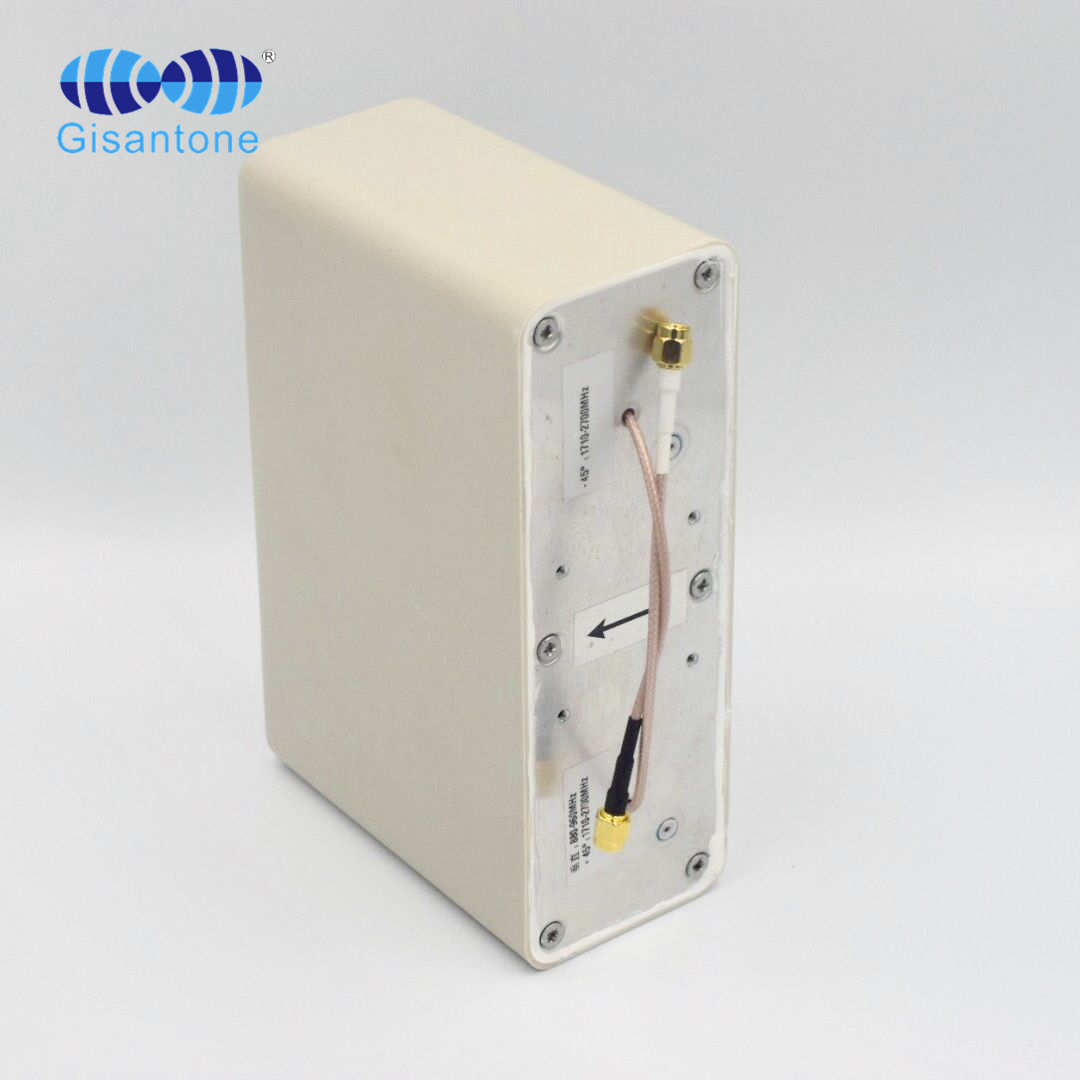

880-2700MHz directional MIMO antenna
- Model No.：
G11516B
- Frequency Range ：
880-960/1710-2700MHz
- Gain：
2*6/7.5DBI
- Cable Length：
2*18CM RG316
- Connector：
2*SMA male
|
Electrical Specifications |
||
|
Model No. |
G11516B |
|
|
Frequency Range |
880-960/1710-2700MHz |
|
|
Gain |
6dBi |
7.5dBi |
|
VSWR |
≤2.0 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
±45° |
|
Horizontal Half Power Angle |
75°±10 |
65°±10 |
|
Vertical Half Power Angle |
85° |
65° |
|
Max Input Power |
50W |
|
|
Front to Back Ratio |
≥ 10 dB |
≥ 15 dB |
|
Isolation Between Ports |
/ |
≥ 25±1 |
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
2*SMA-J |
|
|
Cable Type |
RG316 |
|
|
Cable Length |
2*18CM |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
500g |
|
|
Size |
185x120x65mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna Cover Material |
ABS |
|
|
Color |
Grey |
|
880-2700MHz directional MIMO antenna
