>5G Antenna

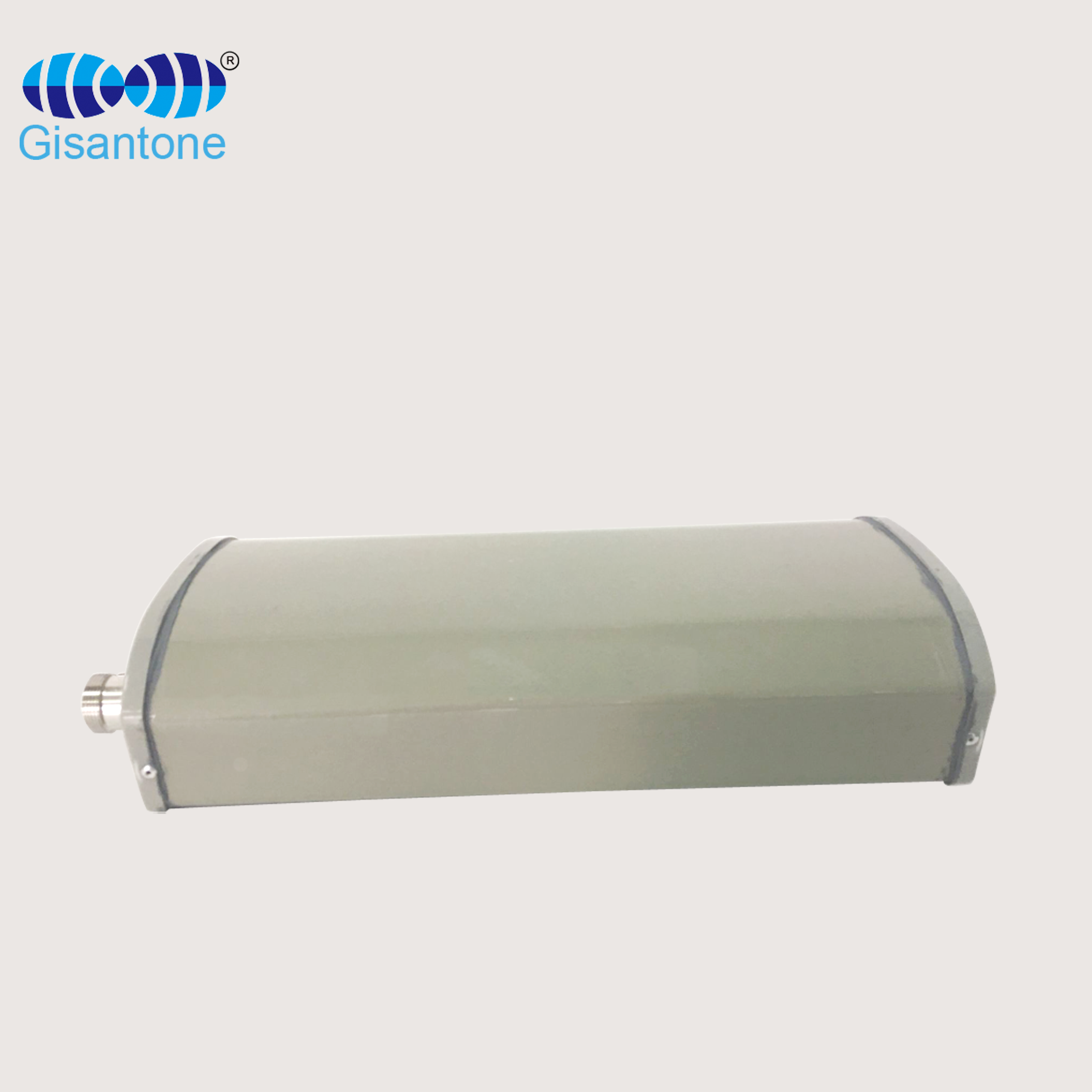

- Name：
1710-2700MHz MIMO Panel antenna
- Model No.：
G15027A
- Frequency Range ：
1710-2700MHz
- Gain：
2*11/12DBI
- Cable Length：
/
- Connector：
2*DIN female
|
Electrical Specifications |
|
|
Model NO. |
G15027A |
|
Frequency Range |
1710-2700MHz |
|
Gain |
2*11/12Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
±45o |
|
PIMD 3TH |
≤-97Dbm @2W*37dBM) |
|
Front to Back Ratio |
≥20dB |
|
Isolation |
≥25dB |
|
Horizontal Half Power Angle |
65° |
|
Vertical Half Power Angle |
32° |
|
Max Input Power |
150W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|

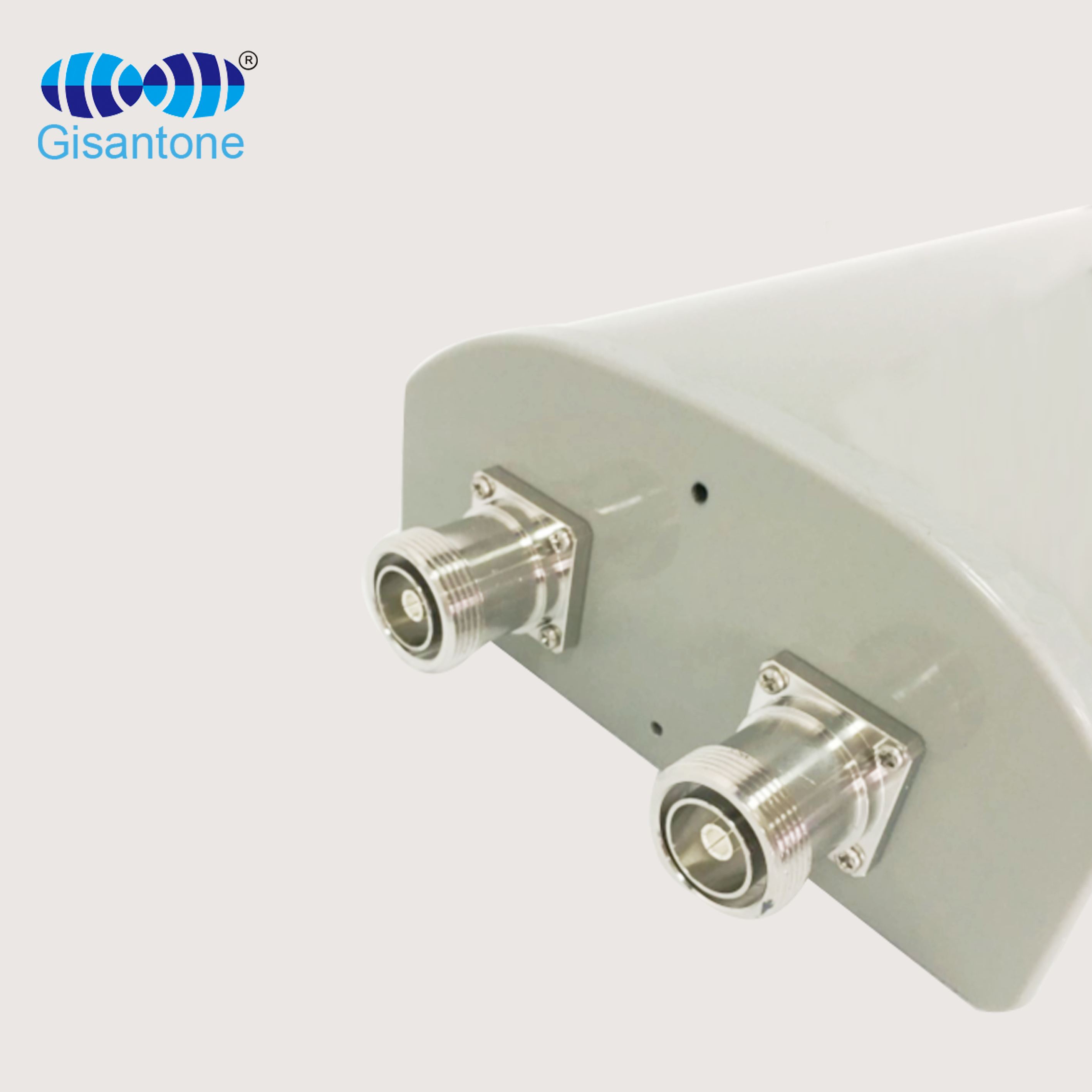

Connector Type |
2*7/16 DIN female |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
0.9kg |
|
Size |
260x165x85mm |
|

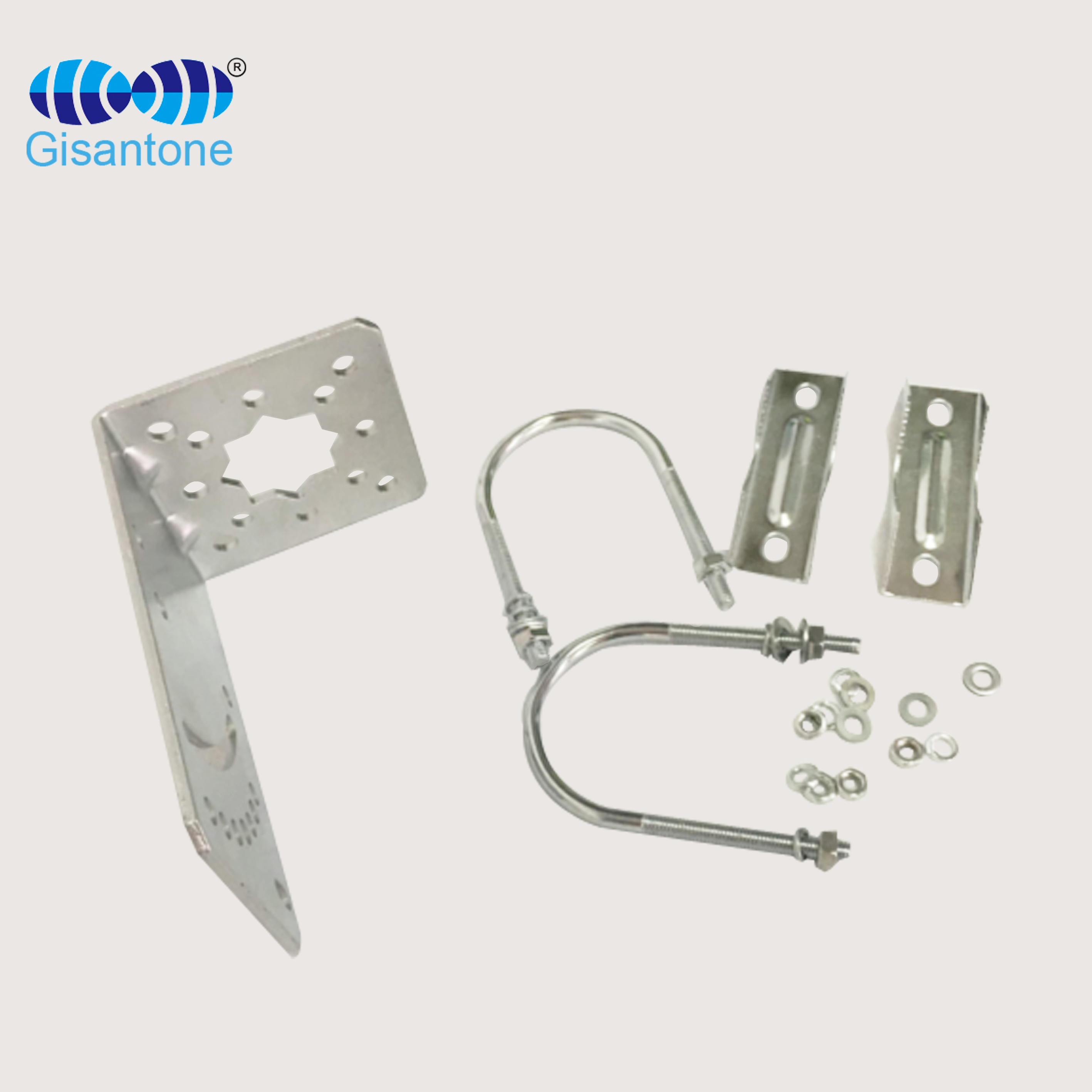

Pole Diameter |
Φ40~φ55mm |
|
Rated Wind Velocity |
210 km/h |
|
Antenna Cover Material |
PVC (3.5mm) |
|
Color |
Grey |
|
Package Size |
42*20*12CM / 1pcs |
|
Weight |
2KG |
1710-2700MHz MIMO Panel antenna
