- Name：

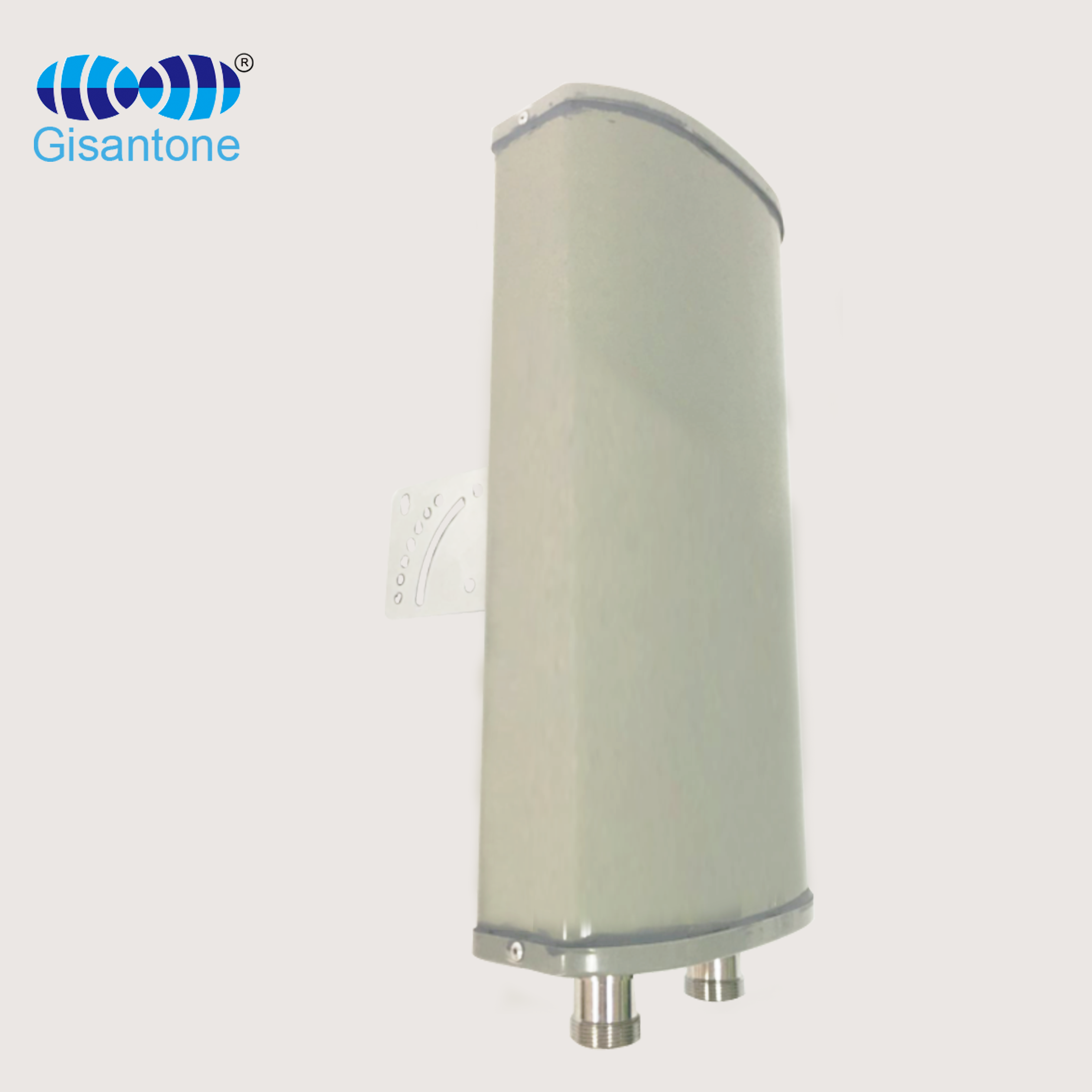

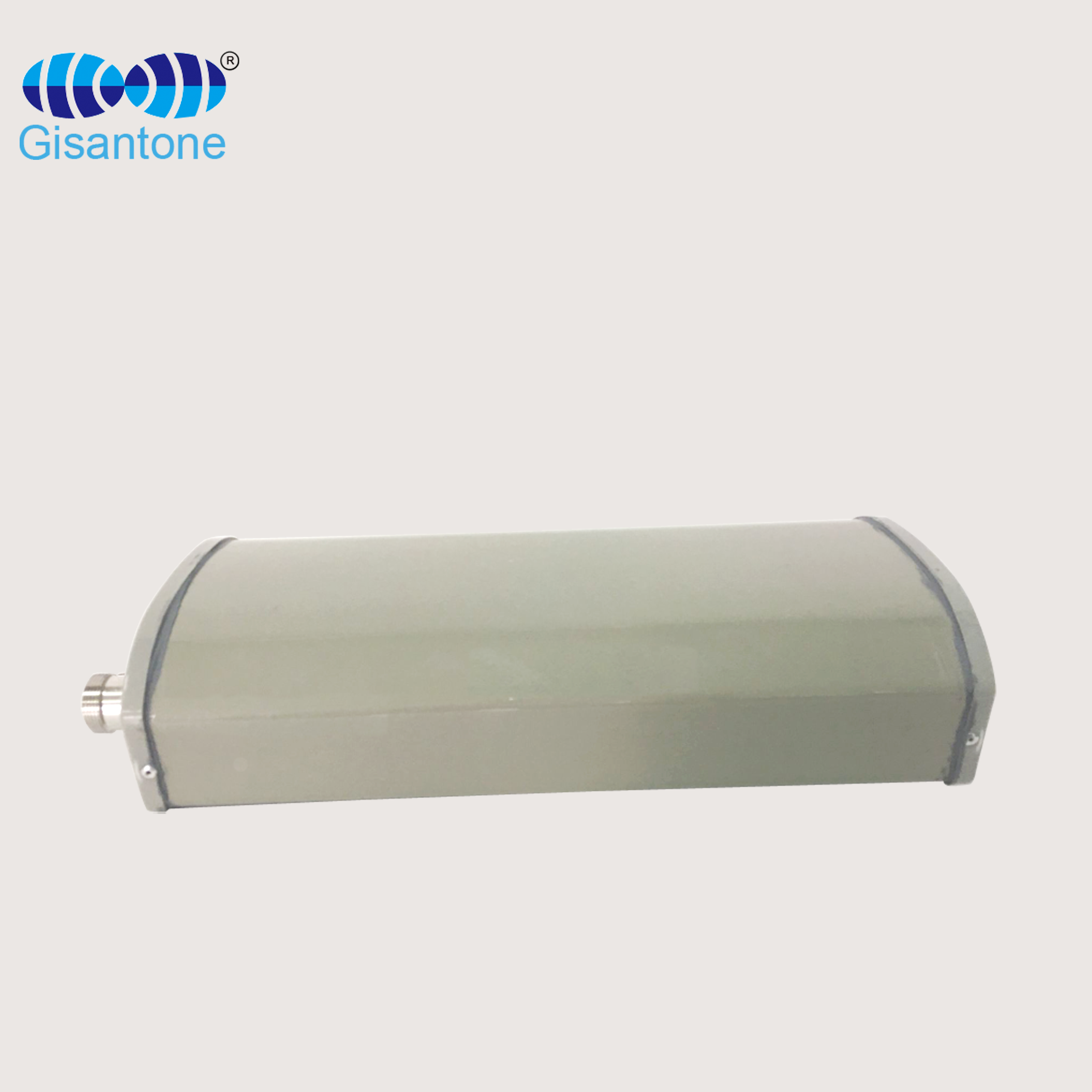

870/2635MHz MIMO BTS Antenna
- Model No.：
G15026A
- Frequency Range ：
870-960/1710-2635MHz
- Gain：
2*6/7DBI
- Cable Length：
/
- Connector：
DIN female
|
Electrical Specifications |
|
|
Model NO. |
G15026A |
|
Frequency Range |
870-960/1710-2635MHz |
|
Gain |
2*6/7Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
±45o |
|
PIMD 3TH |
≤-97Dbc @2W*37dBM |
|
Front to Back Ratio |
≥25dB |
|
Horizontal Half Power Angle |
65° |
|
Vertical Half Power Angle |
60° |
|
Max Input Power |
100W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
2*DIN female |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
0.9kg |
|
Size |
365x180x80mm |
|
Pole Diameter |
Φ40~φ55mm |
|
Rated Wind Velocity |
210 km/h |
|
Antenna Cover Material |
PVC |
|
Color |
Grey |
|
Package Size |
42*20*12 / 1pcs |
|
Weight |
2KG |
