5G Omni Antenna
- Name：
617-4000MHz Indoor Ceiling Antenna
- Model No.：
G15604B
- Frequency Range ：
617-960/1710-2700/3400-4000MHz
- Gain：
3/5dBi
- Cable Length：
RG141 40CM
- Connector：
N female
Share：
Product parameters
Download
Electrical Specifications | ||||
Model NO. | G15604B | |||
Frequency Range(MHz) | 617-960 | 1710-2700 | 3400-4000 | |
Gain(dBi) | 2dBi | 3dBi | 4dBi | |
VSWR | ≤2.0 | ≤1.8 | ≤1.8 | |
Input Impedance | 50Ω | |||
Polarization | Vertical | |||
Horizontal Half Power Angle | 360° | |||
Vertical Half Power Angle | 100°/50° | |||
PIMD 3th | ≤-107dBm（@2W） | |||
Max Input Power | 100W | |||
Lightning Protection | DC Ground | |||
Mechanical Specifications | ||||
Connector Type | 4*N female | |||
Cable Type | RG141 Blue | |||
Cable Length | 4*40CM | |||
Working Temperature | -30℃~﹢45℃ | |||
Antenna Weight | 350g | |||
Size | Φ360x24mm | |||
Antenna Cover Material | ABS | |||
Color | White | |||

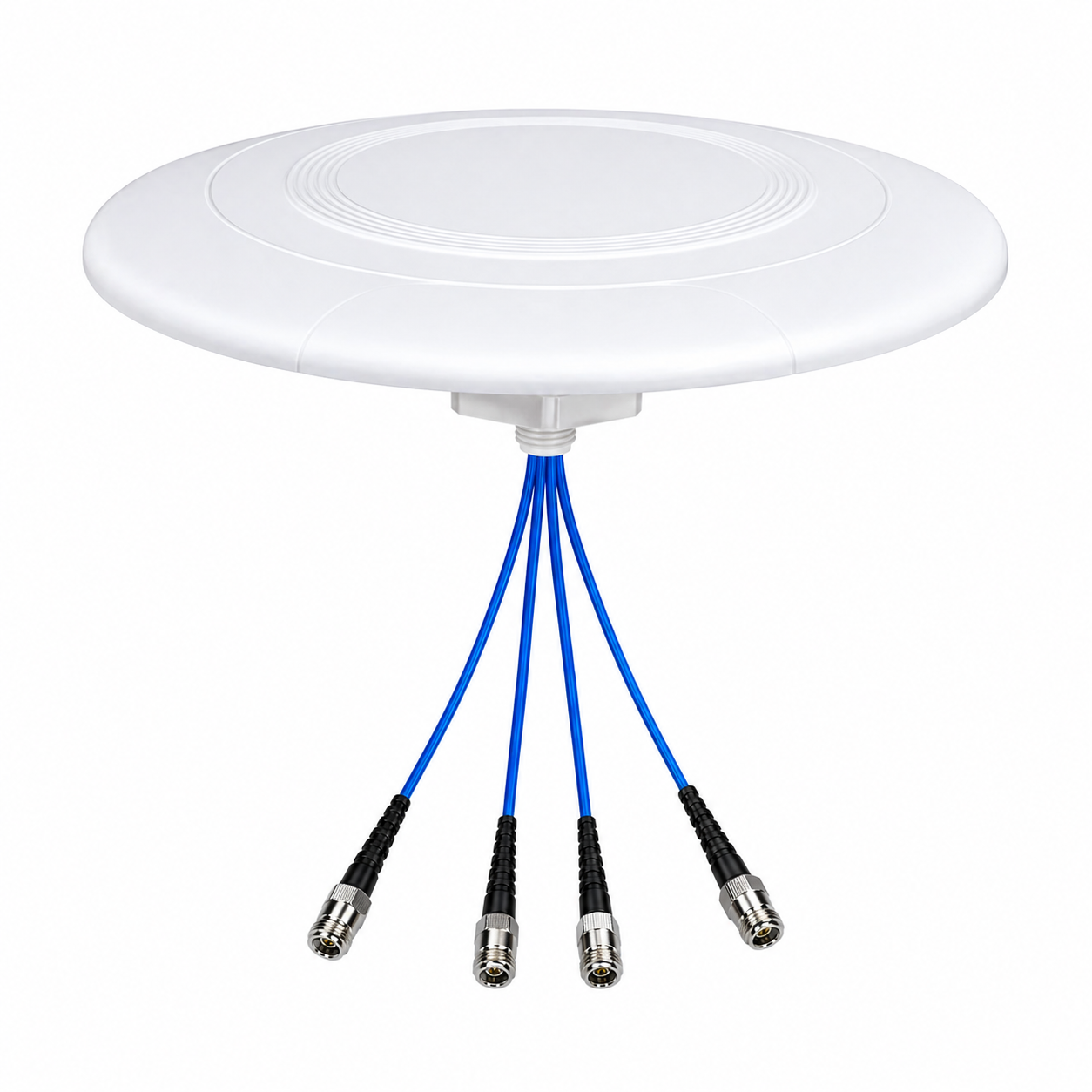

617-4000MHz Indoor Ceiling Antenna
