5G Omni Antenna
- Name：

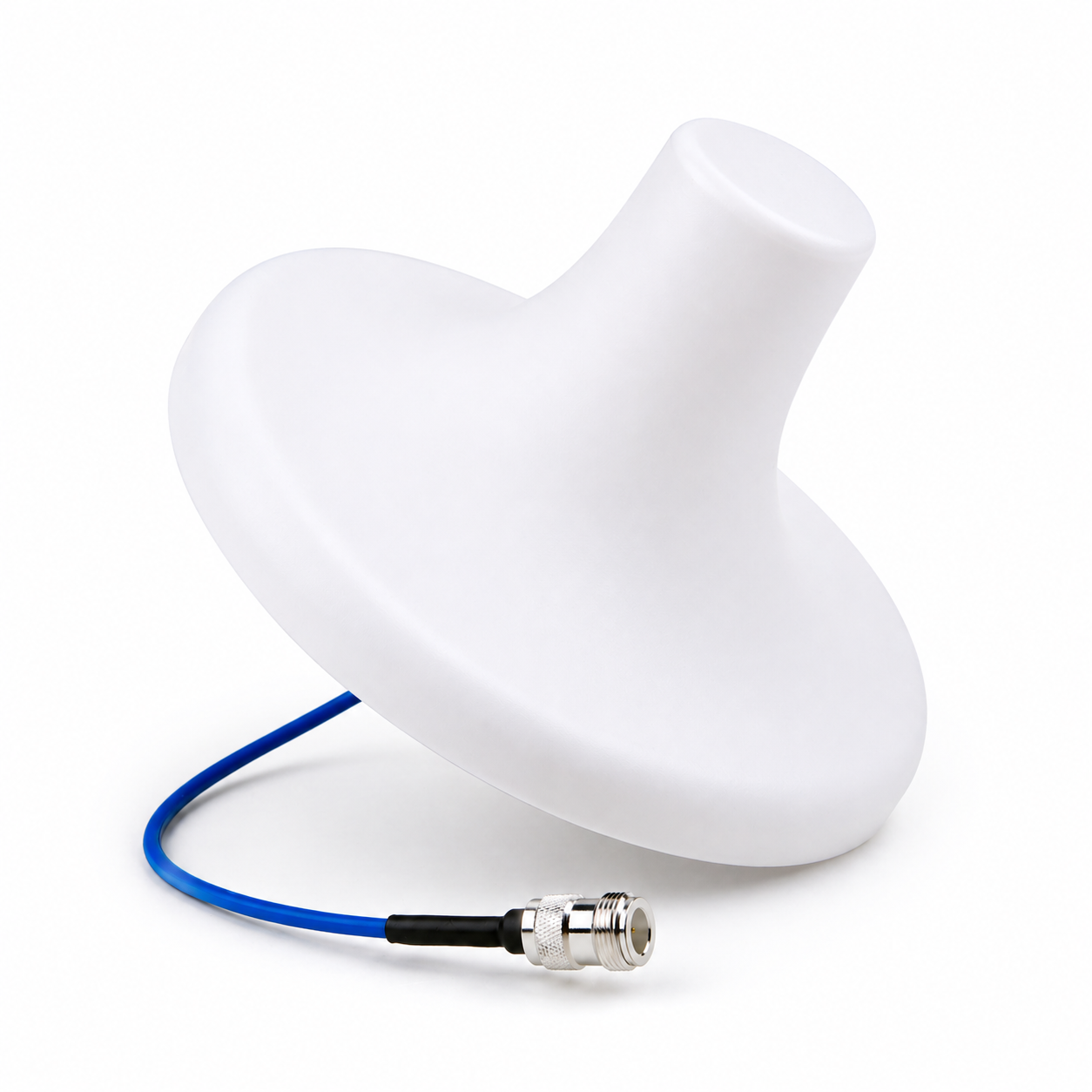

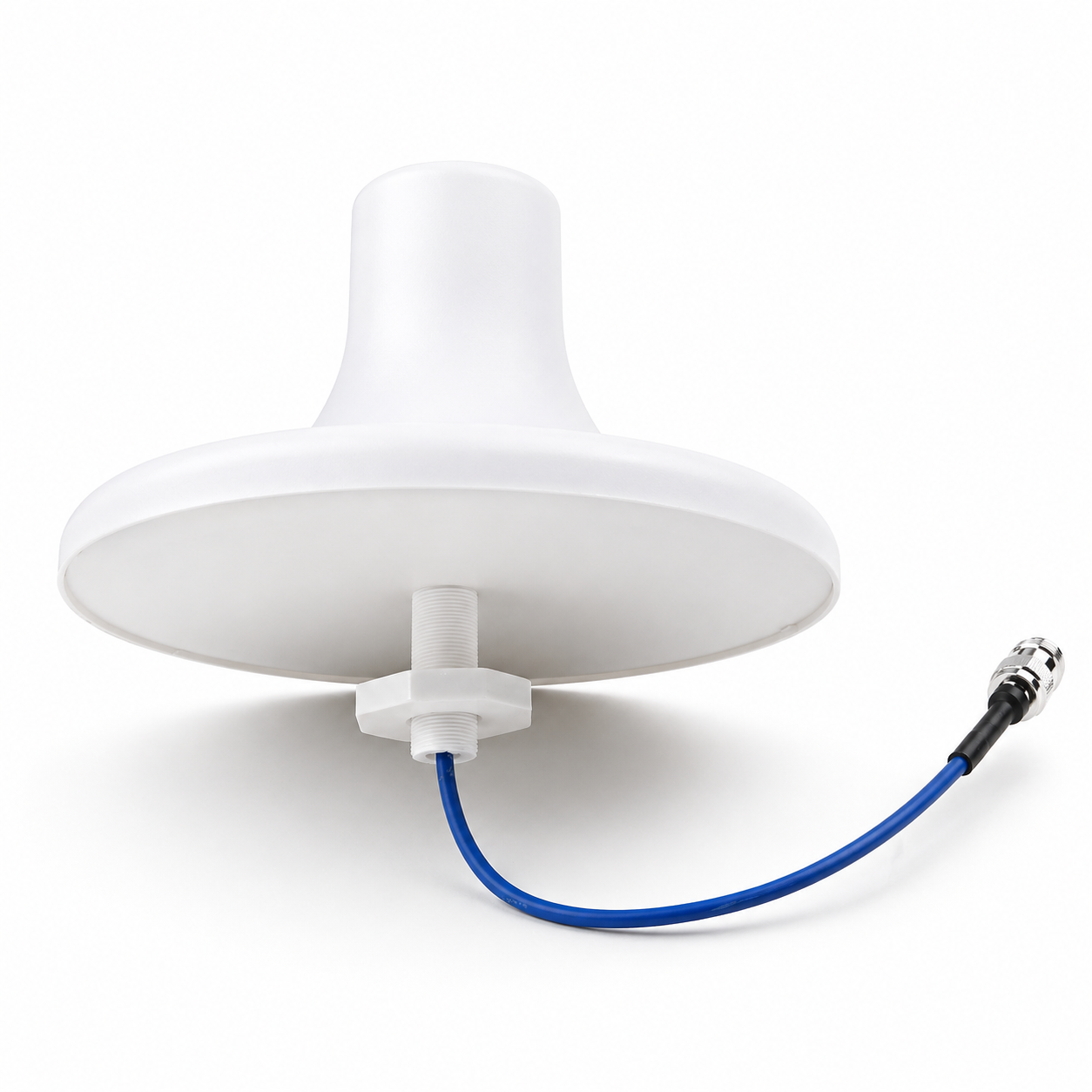

698-3800MHz Ceiling Antenna
- Model No.：
G15603A
- Frequency Range ：
698-960/1710-2700/3400-3800MHz
- Gain：
3/5dBi
- Cable Length：
40CM RG141
- Connector：
N female
Share：
Product parameters
Download
Electrical Specifications | |||
Model NO. | G15603A | ||
Frequency Range(MHz) | 698-960 | 1710-2700 | 3400-3800 |
Gain(dBi) | 2dBi | 3dBi | 5dBi |
VSWR | ≤2.0 | ≤1.8 | ≤1.5 |
Input Impedance | 50Ω | ||
Polarization | Vertical | ||
Horizontal Half Power Angle | 360° | ||
Vertical Half Power Angle | 100/50° | ||
PIMD 3th | ≤-107dBm（@2W） | ||
Max Input Power | 100W | ||
Lightning Protection | DC Ground | ||
Mechanical Specifications | |||
Connector Type | N-female | ||
Cable Type | RG141 Blue | ||
Cable Length | 40CM | ||
Working Temperature | -30℃~﹢45℃ | ||
Antenna Weight | 350g | ||
Size | Φ204x115mm | ||
Antenna Cover Material | ABS | ||
Color | White | ||
Package Size | 90*38*38 / 20pcs | ||
Weight | 8.5KG | ||
698-3800MHz Ceiling Antenna
