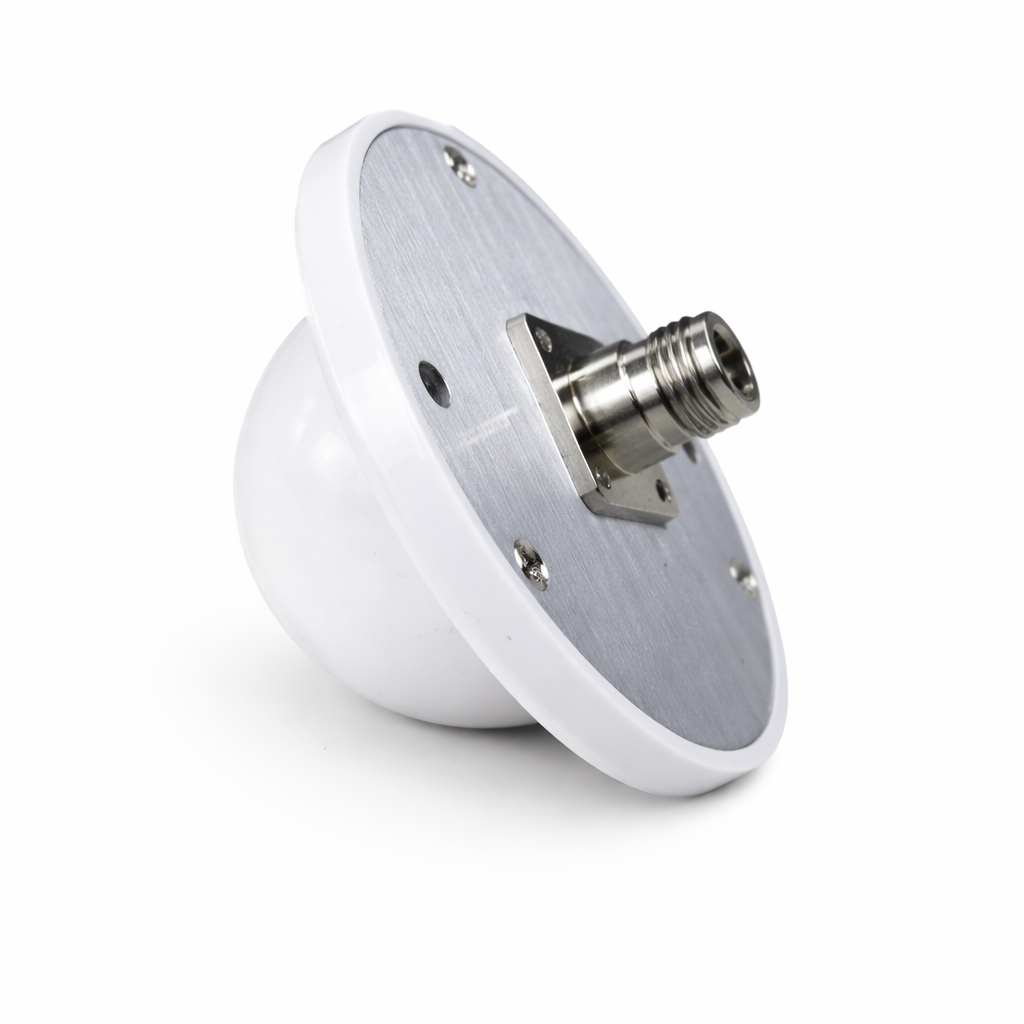

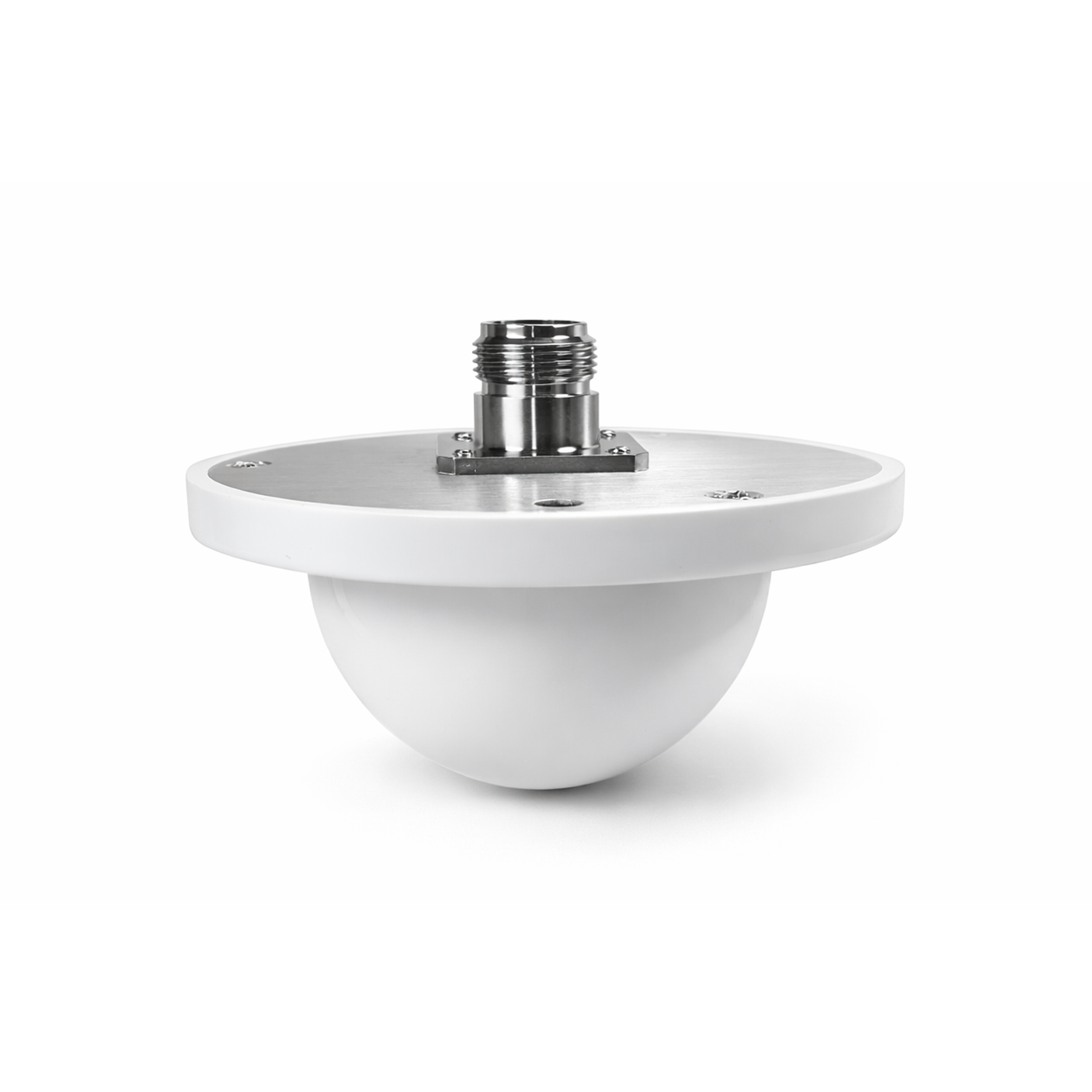

5G Omni Antenna
- Name：
G15633A
- Model No.：
2400-7000MHz Ceiling Antenna
- Frequency Range ：
2400-7000MHz
- Gain：
5dBi
- Cable Length：
Direct Mount
- Connector：
N female
Share：
Product parameters
Download
| Electrical Specifications | |
| Model No. | G15633A |
| Frequency Range | 2400 ~ 7000 MHz |
| Gain | 5 dBi |
| VSWR | ≤ 1.5 |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Horizontal Beam Width | 360° Omnidirectional |
| Port Isolation | ≥ 30 dB |
| Max Input Power | 100W |
| Mechanical Specifications | |
| Connector Type | N-Female |
| Dimensions | Φ87 × 59 mm |
| Weight | ≈ 105kg |
| Radome Material | ABS (UV-resistant white) |
| Back Plate | Aluminum Alloy (Brushed) |
| Mounting Method | Ceiling Flush Mount |
| Environmental Specifications | |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity | 5% ~ 95% RH (Non-Condensing) |
| IP Rating | IP54 |
| Protocol Compatibility | |
| Supported Standards | WiFi 4 (802.11n) · WiFi 5 (802.11ac) · WiFi 6 (802.11ax) · WiFi 6E (6GHz) · 5G NR Sub-6GHz (n77/n78/n79) · LTE · 4G |
| Frequency Bands | 2.4 GHz · 3.5 GHz · 5 GHz · 5.8 GHz · 6 GHz · 7 GHz |
G15633A
