- Name：

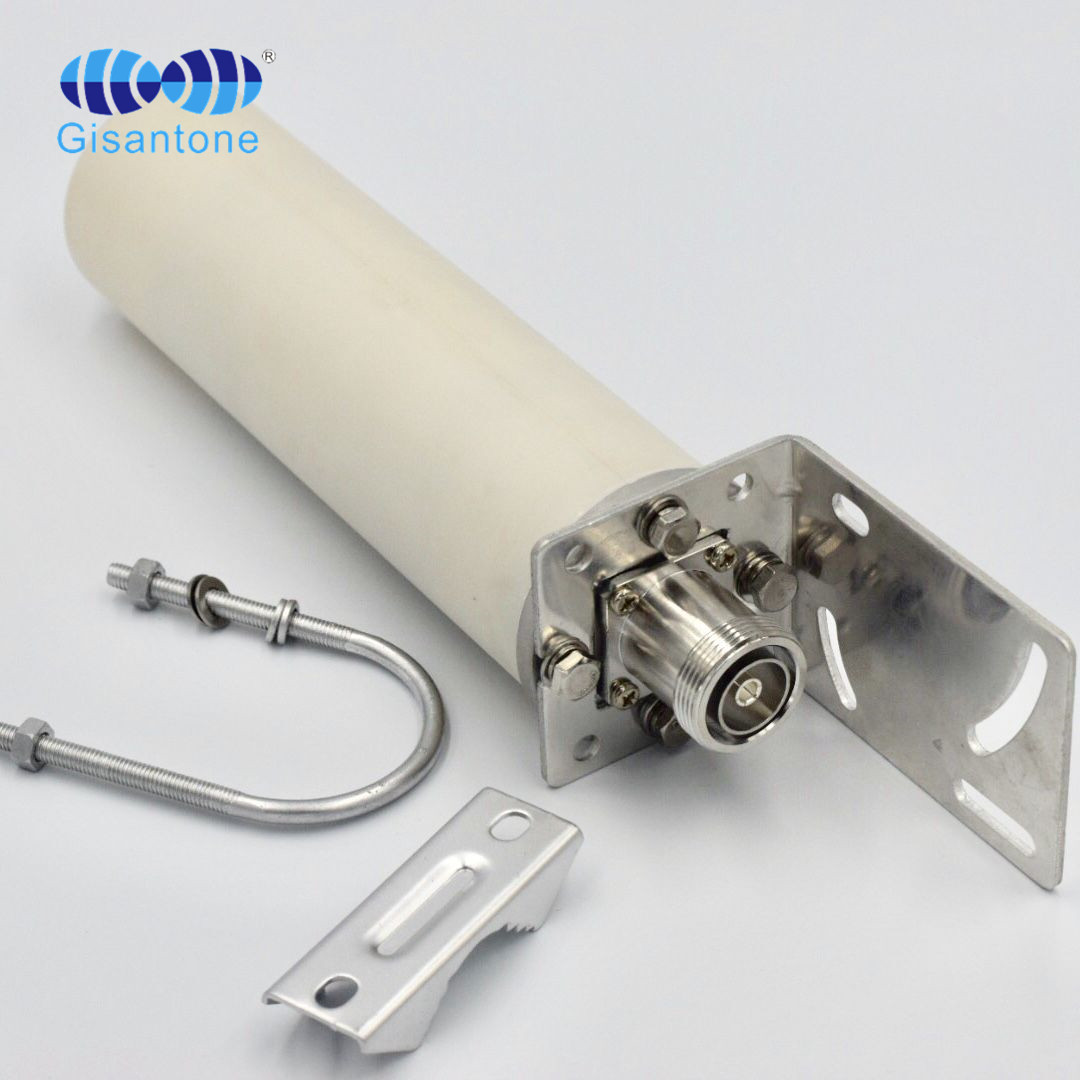

698-2700MHz 3/5DBI Fiberglass antenna
- Model No.：
G14111D
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
3/5DBi
- Cable Length：
/
- Connector：
DIN female
|
Electrical Specifications |
||
|
Model No. |
G14111D |
|
|
Frequency Range |
698-960/1710-2700MHz |
|
|
Gain |
3/5dBi |
|
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
PIMD 3th(@2*33dBm) |
≤-107dBm |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
70° |
50° |
|
Max Input Power |
100W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Working Temperature |
-40℃~﹢65℃ |
|
|

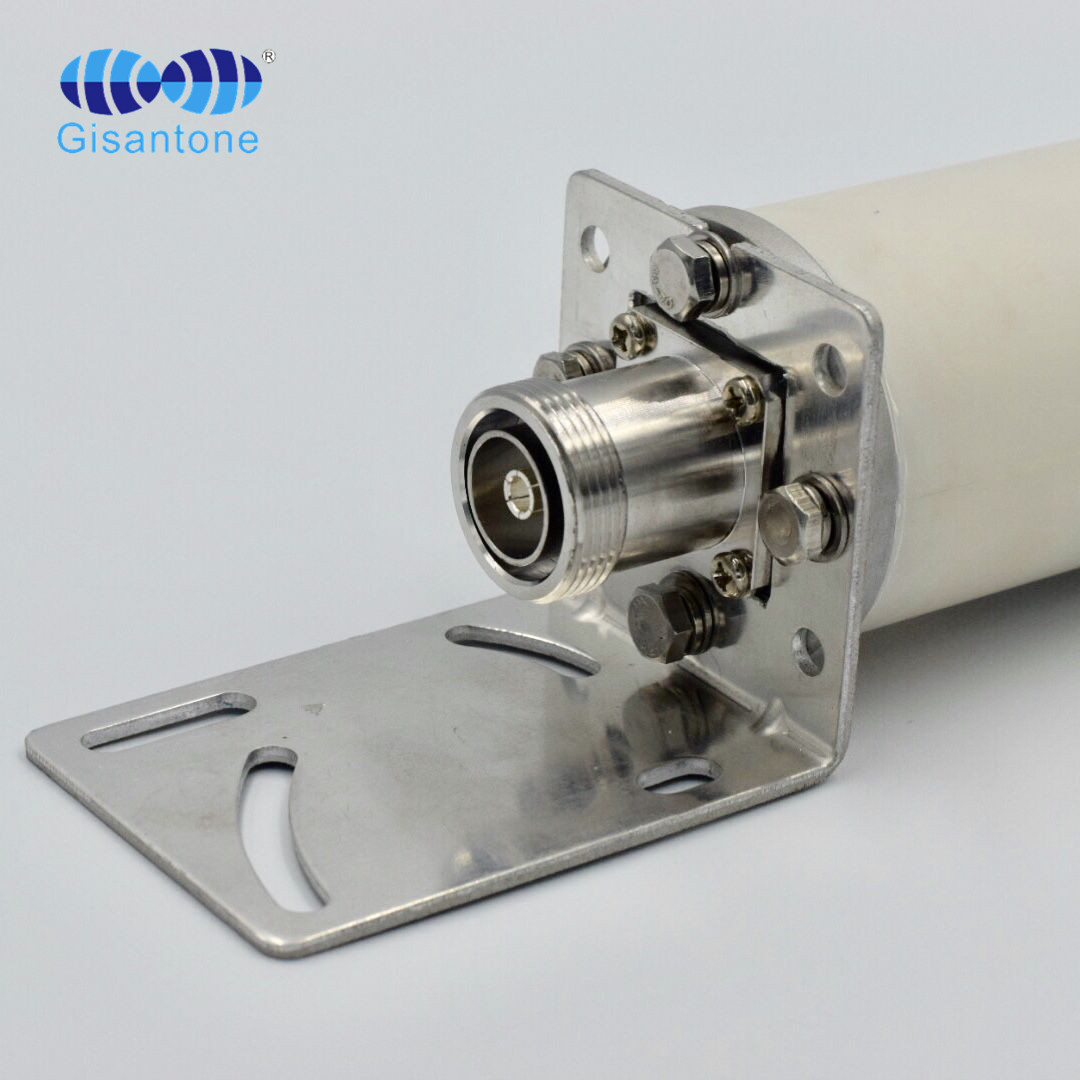

Connector Type |
DIN female |
|
|
Antenna Weight |
1.5kg |
|
|
Size |
Φ60x250mm |
|
|
Pole Diameter |
Φ40~65mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna Cover Material |
ABS |
|
|
Color |
White |
|
|
Package Size |
60*40*30CM / 20PCS |
|
|
Weight |
26KG |
|
