- Name：

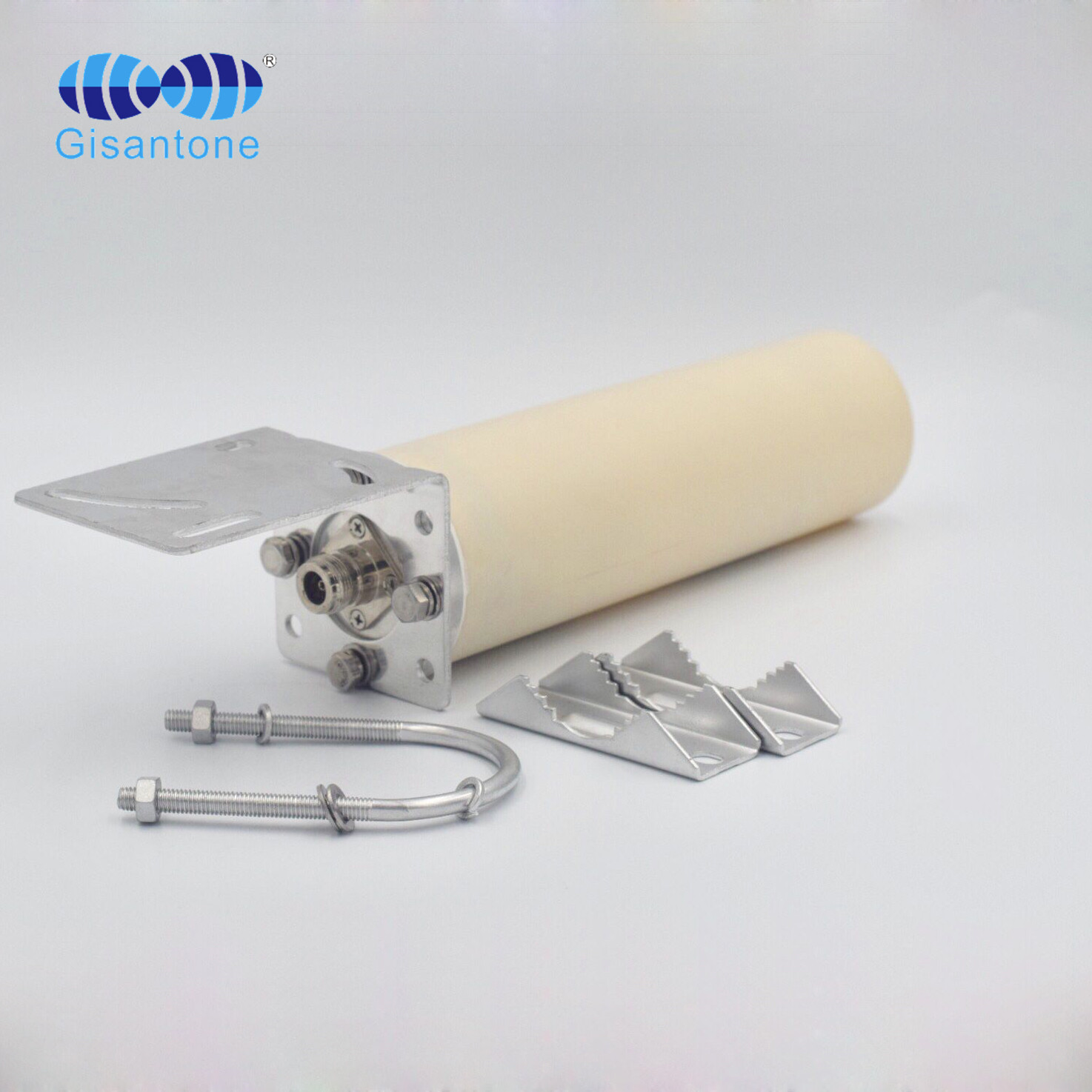

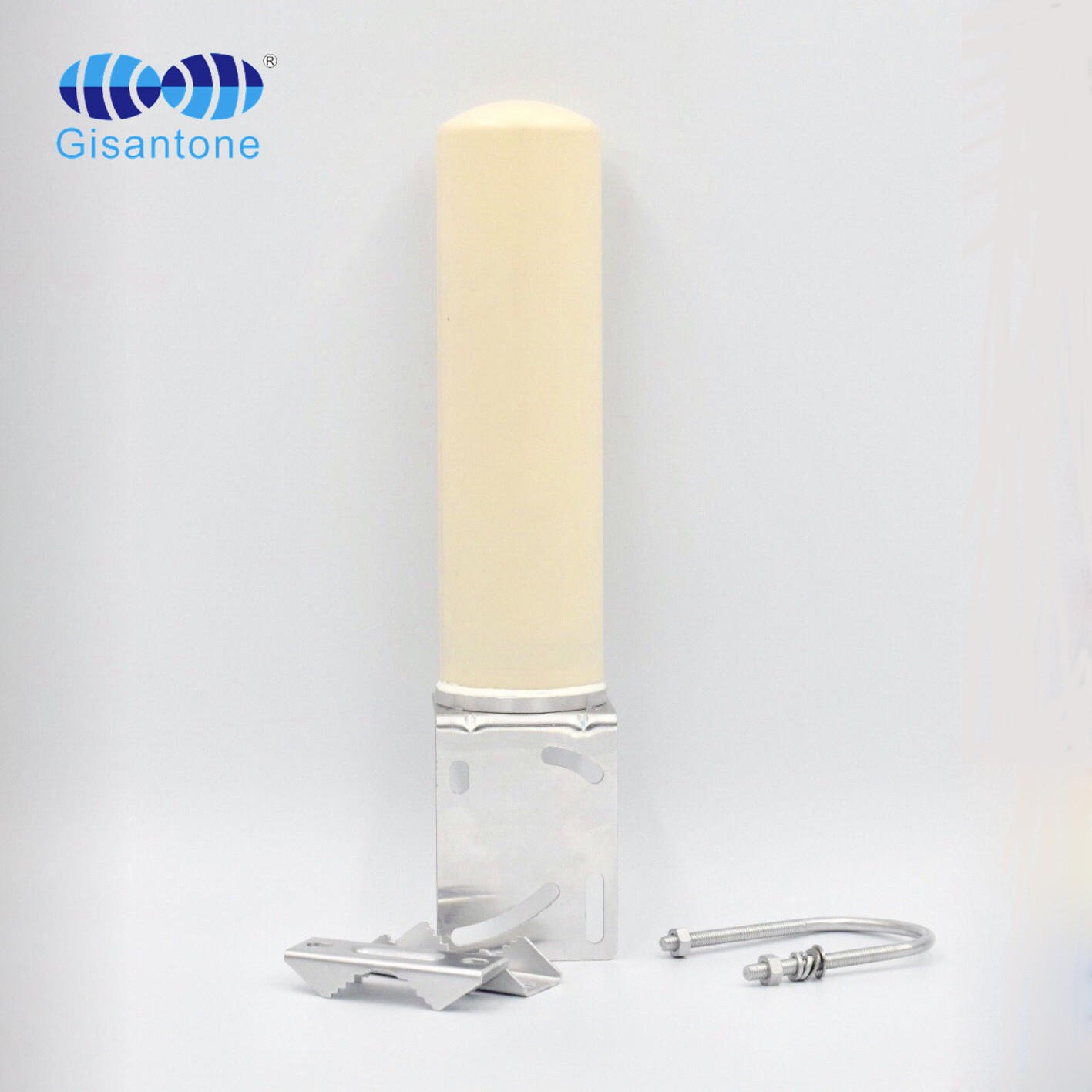

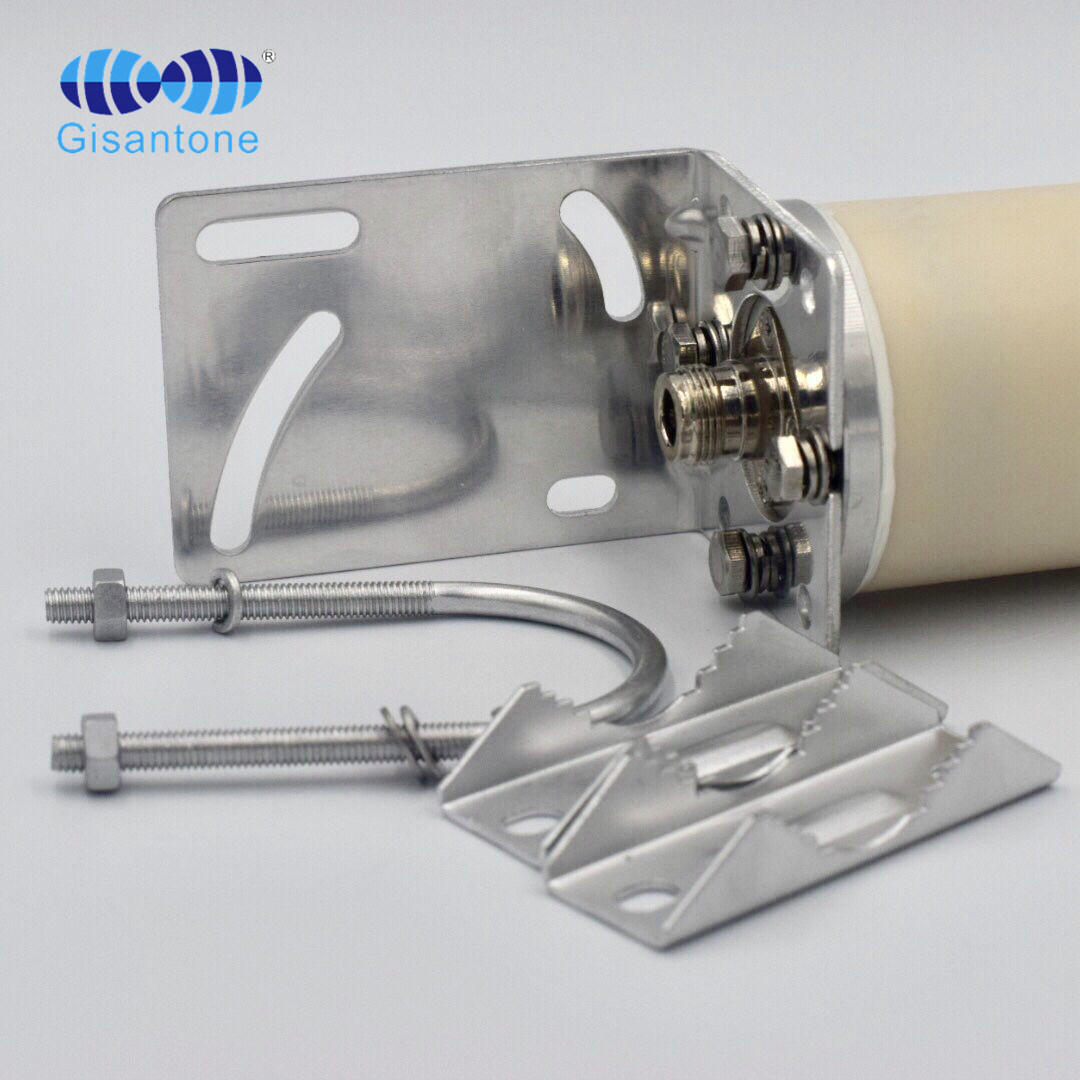

698/2700MHz 4/6DBI Fiberglass antenna
- Model No.：
G14111B
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
4/6DBI
- Cable Length：
/
- Connector：
N female
|
Electrical Specifications |
|
|
Model No. |
G14111B |
|
Frequency Range |
698-960/1710-2700MHz |
|
Gain |
4/6dBi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
70° |
|
Max Input Power |
100W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Connector Type |
N female |
|
Antenna Weight |
0.5kg |
|
Size |
Φ63x240mm |
|
Pole Diameter |
Φ35~55mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna Cover Material |
ABS |
|
Color |
White |
|
Package Size |
60*40*30CM / 20PCS |
|
Weight |
26KG |
698/2700MHz 4/6DBI Fiberglass antenna
