- Name：

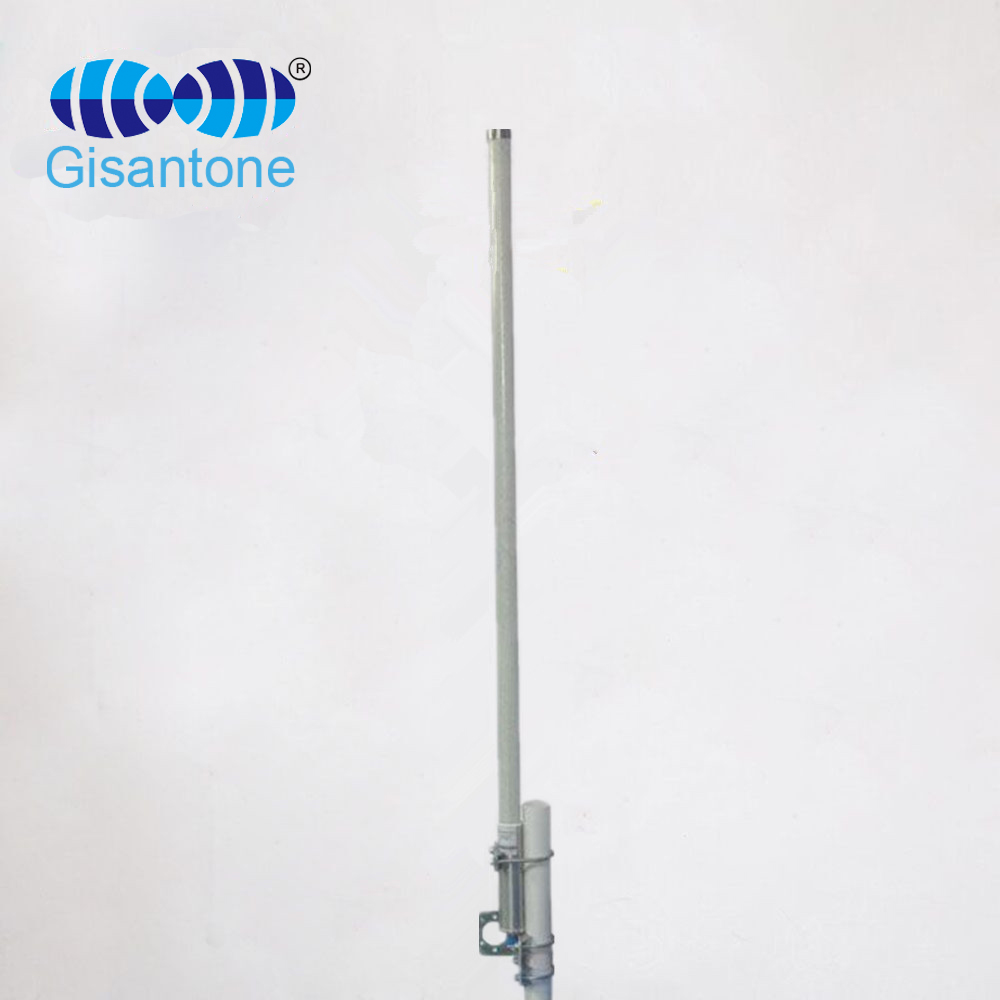

698/2700MHz Omni fiberglass antenna
- Model No.：
G14602A
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
2/3DBI
- Cable Length：
/
- Connector：
N female
|
Electrical Specifications |
||
|
Model No. |
G14602A |
|
|
Frequency Range |
698-960/1710-2600MHz |
|
|
Gain |
2/3Dbi |
|
|
VSWR |
≤4.0 |
≤3.5 |
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
85° |
70° |
|
Front to Back Ratio |
≥15dB |
|
|
Max Input Power |
100W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|

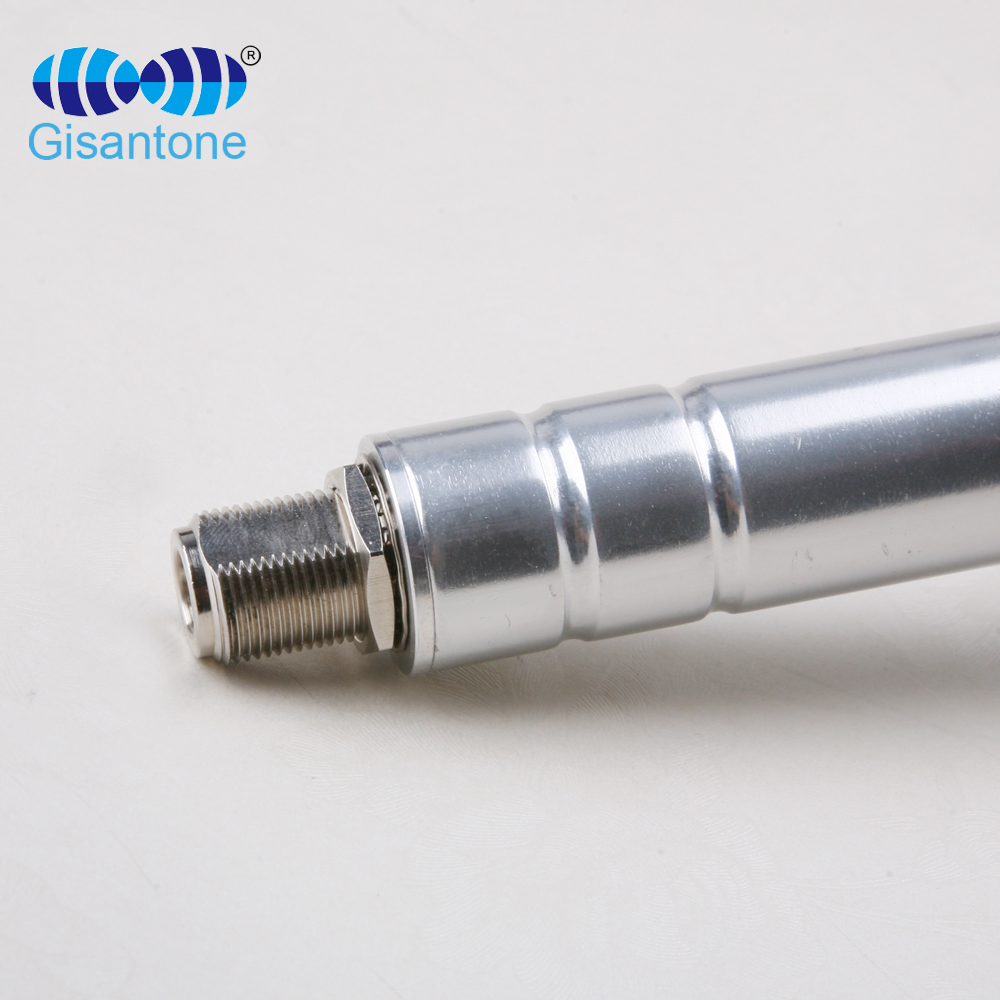

Connector Type |
N female |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
0.4kg |
|
|

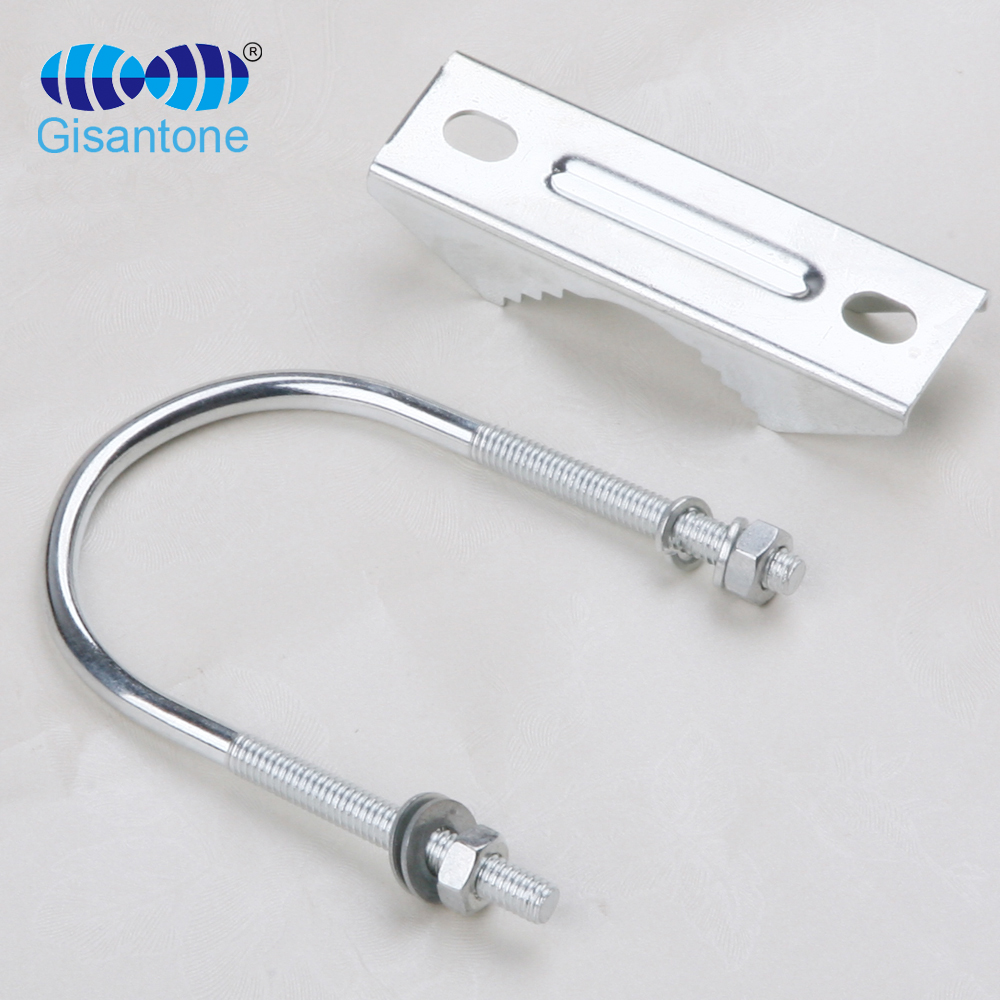

Pole Diameter |
Φ35~φ55mm |
|
|

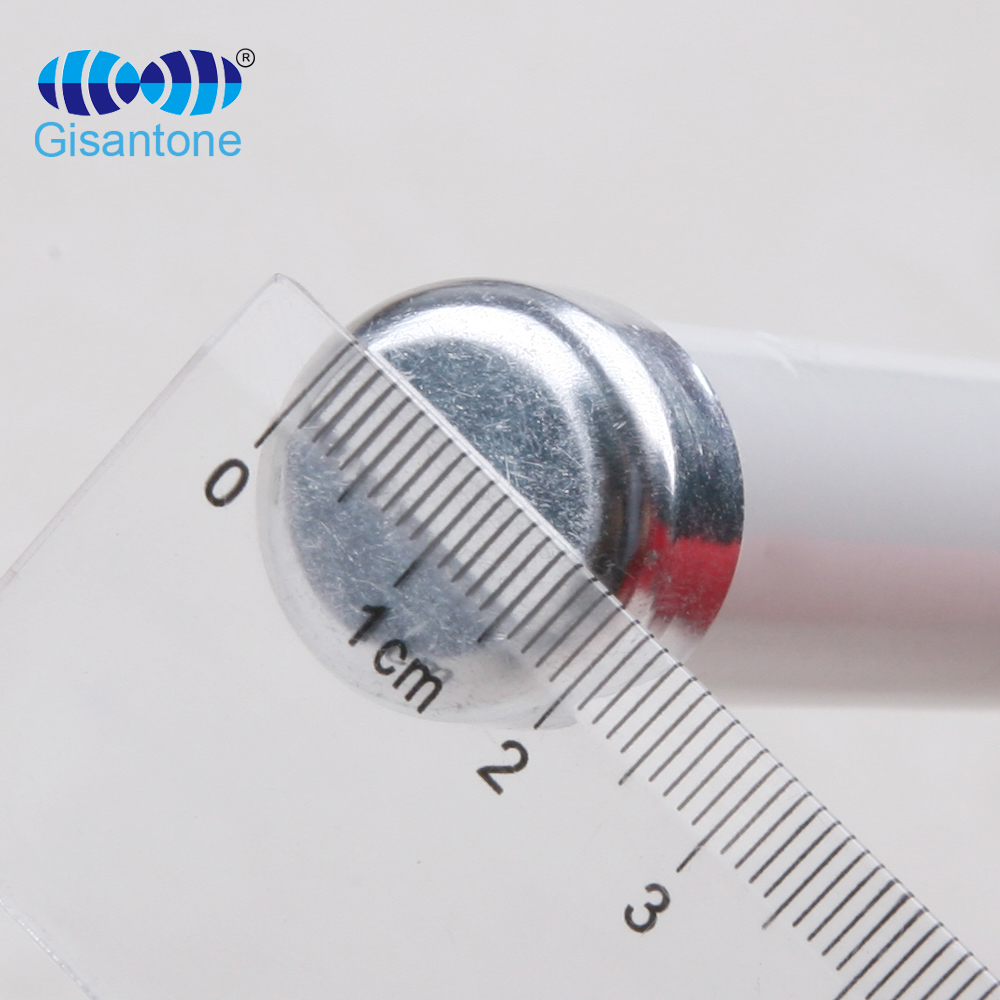

Size |
Φ20*1000mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Cover Material |
Fiberglass |
|
|
Color |
White |
|
