- Name：

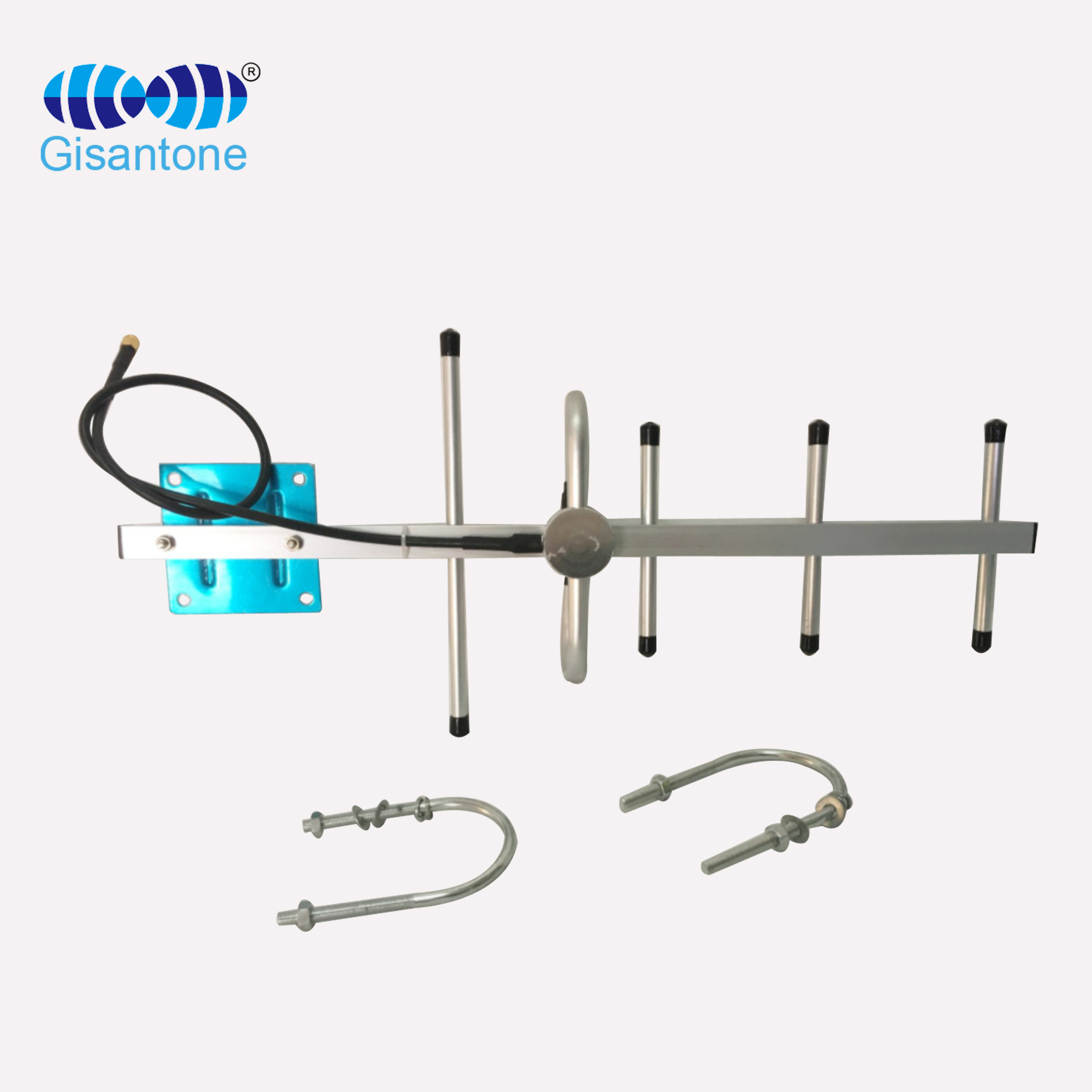

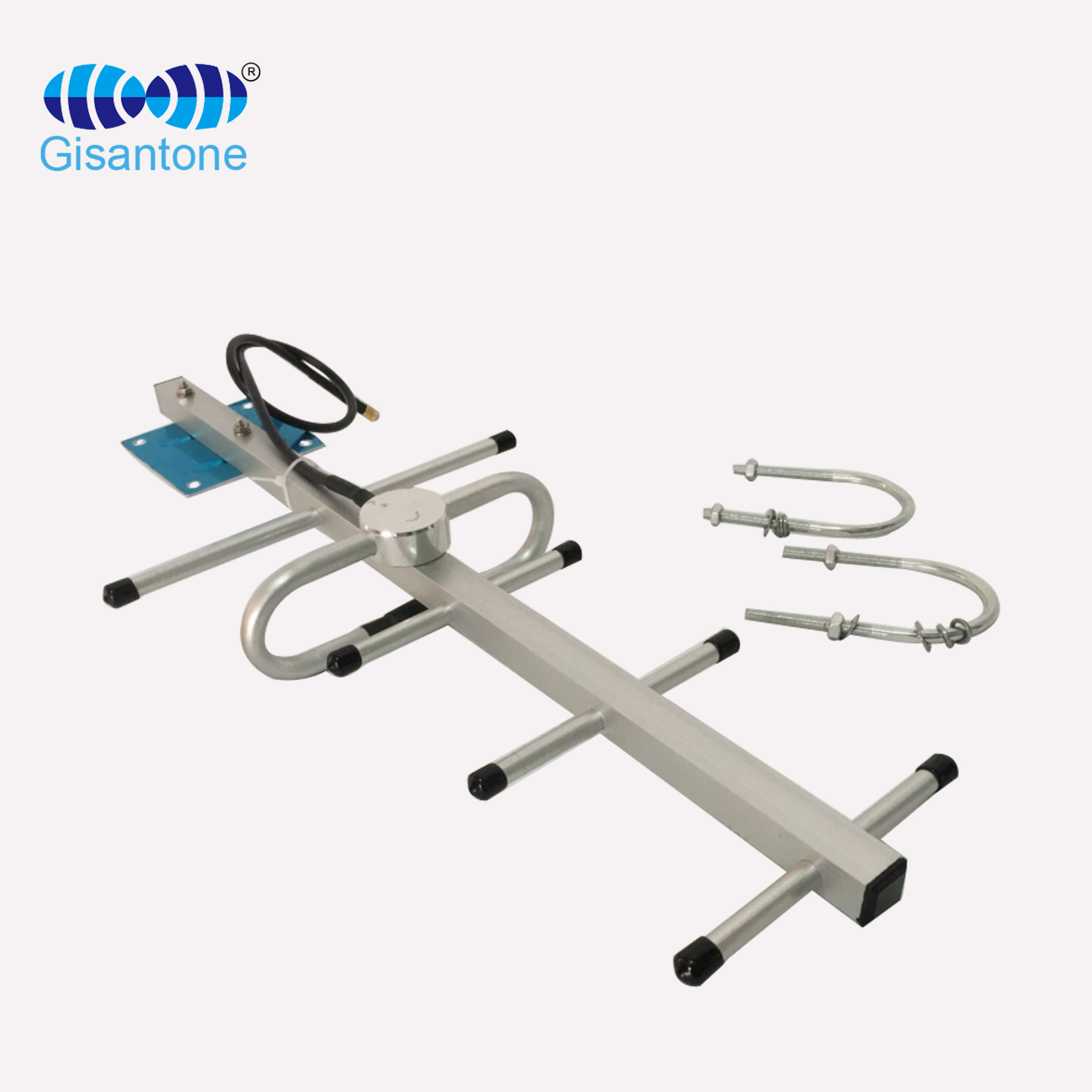

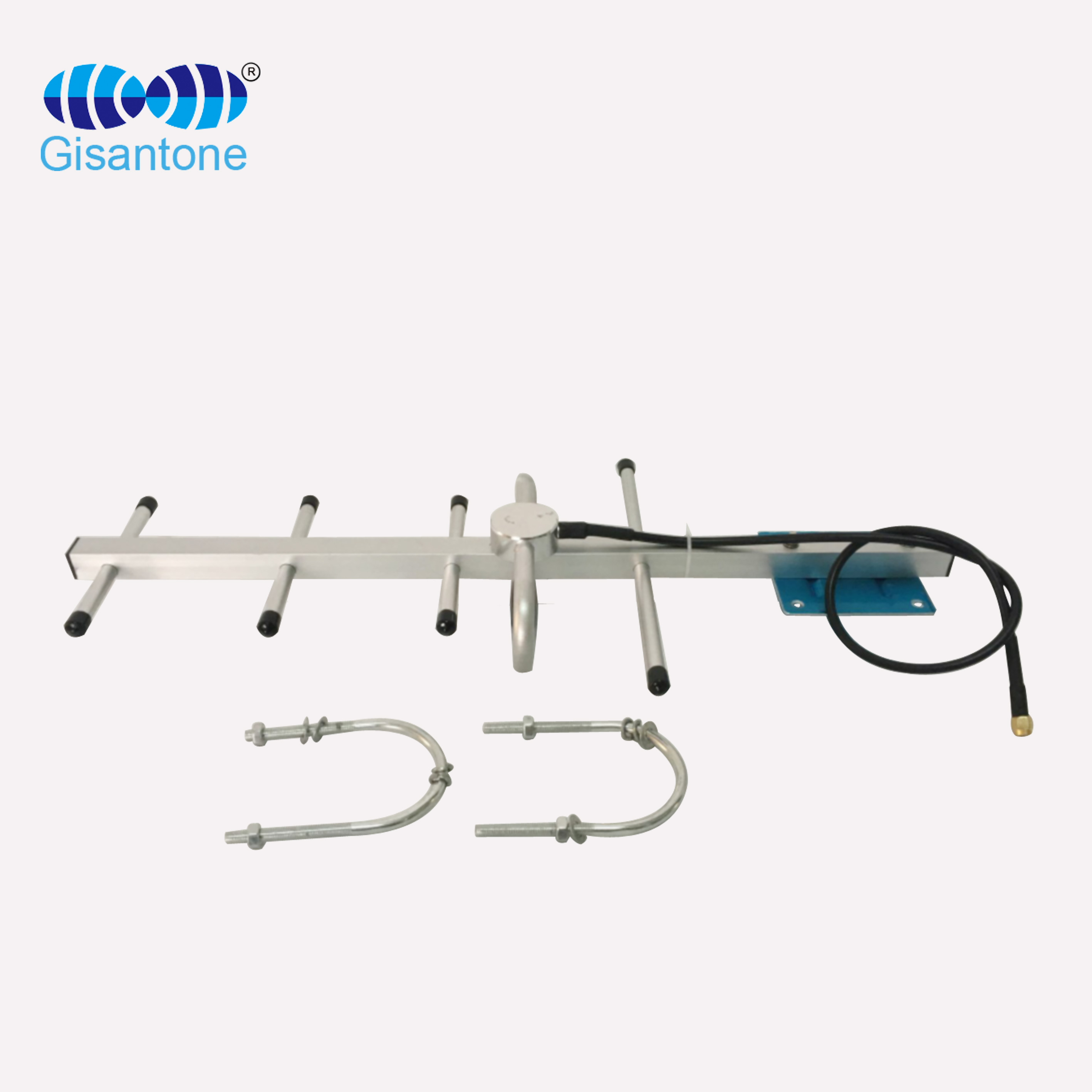

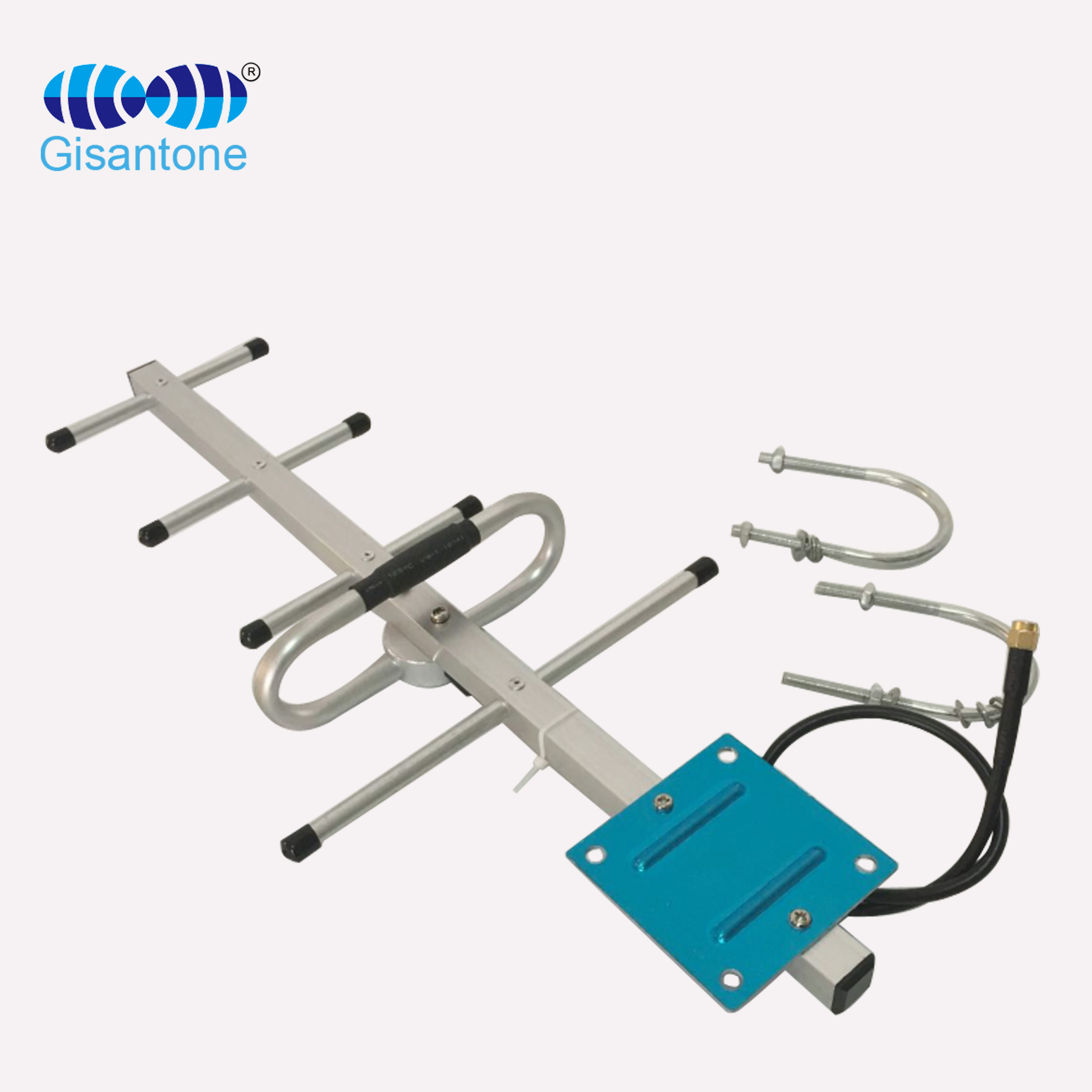

868MHz 5 elements 7DBI Yagi Antenna
- Model No.：
G13207H
- Frequency Range ：
868MHz
- Gain：
7DBI
- Cable Length：
0.5M LMR200 Black
- Connector：
SMA male
|
Electrical Specifications |
|
|
Model No. |
G13207H |
|
Frequency Range |
868MHz |
|
Gain |
7Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical &Horizontal |
|
Front to Back Ratio |
≥15dB |
|
Horizontal Half Power Angle |
80±3° |
|
Vertical Half Power Angle |
70±3° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
SMA male |
|
Cable Type |
LMR200 |
|
Cable Length |
0.5M |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
360g |
|
Pole Diameter |
Φ35~φ55mm |
|
Size |
455*205*45mm |
|
Rated Wind Velocity |
210km/h |
|
Radiating Element |
5 |
|
Package Size |
48*33*44CM / 20PCS |
|
Weight |
13.4KG |
