- Name：

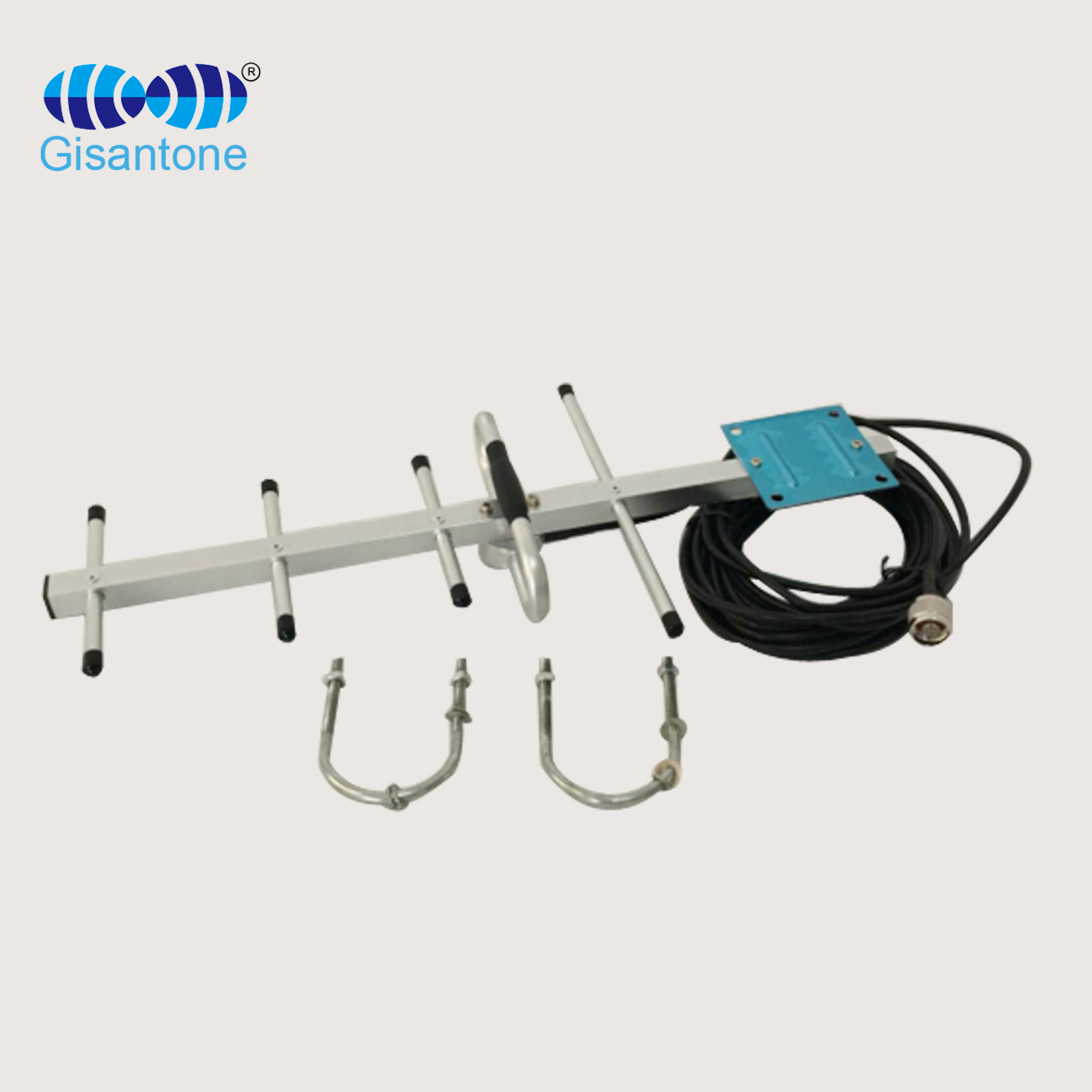

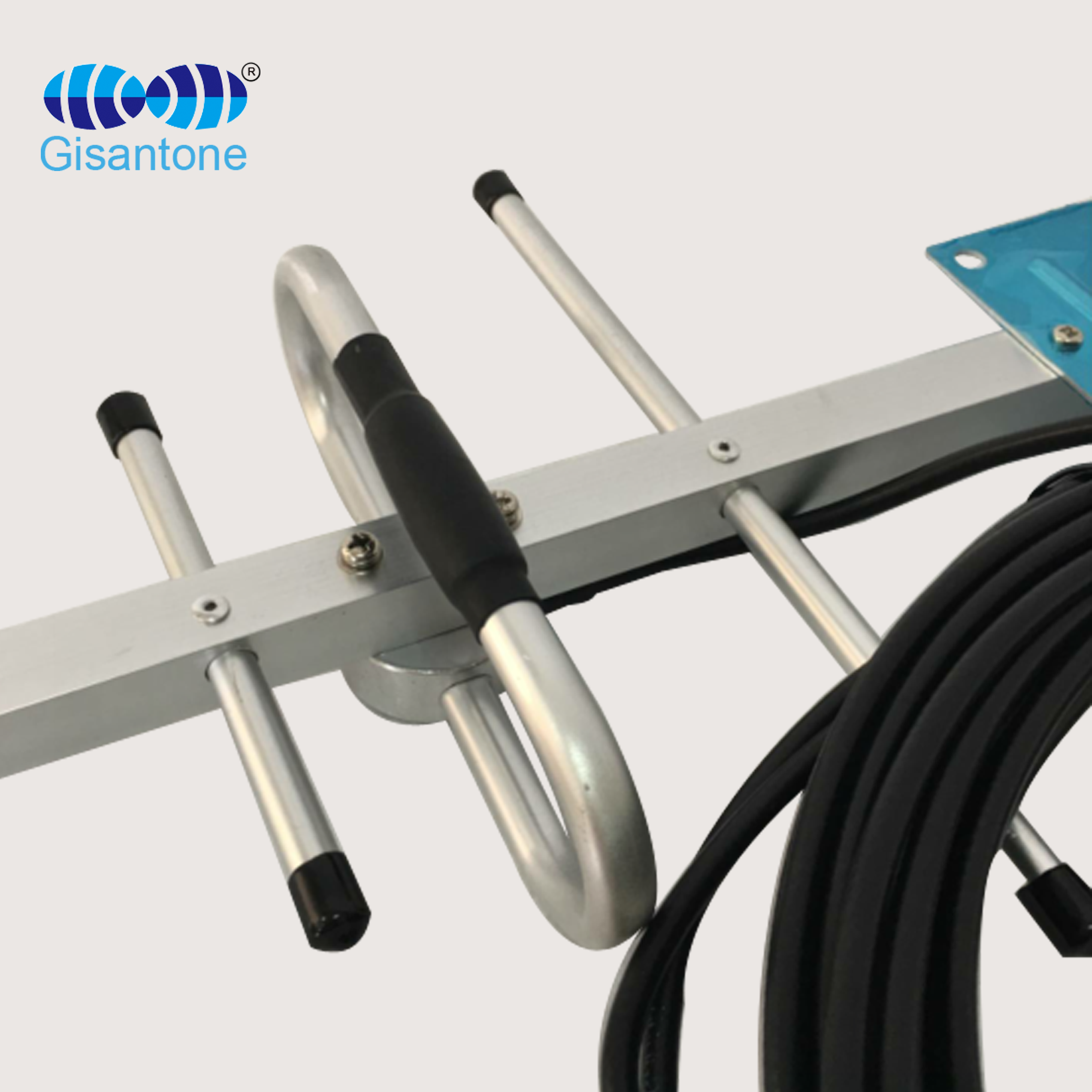

806-960MHz 8DBI Yagi antenna
- Model No.：
G13207B
- Frequency Range ：
806-960MHz
- Gain：
8DBI
- Cable Length：
10M RG58U
- Connector：
N male
|
Electrical Specifications |
|
|
Model No. |
G13207B |
|
Frequency Range |
806-960MHz |
|
Gain |
8Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical &Horizontal |
|
Front to Back Ratio |
≥15dB |
|
Horizontal Half Power Angle |
50±3° |
|
Vertical Half Power Angle |
55±3° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
N-male |
|

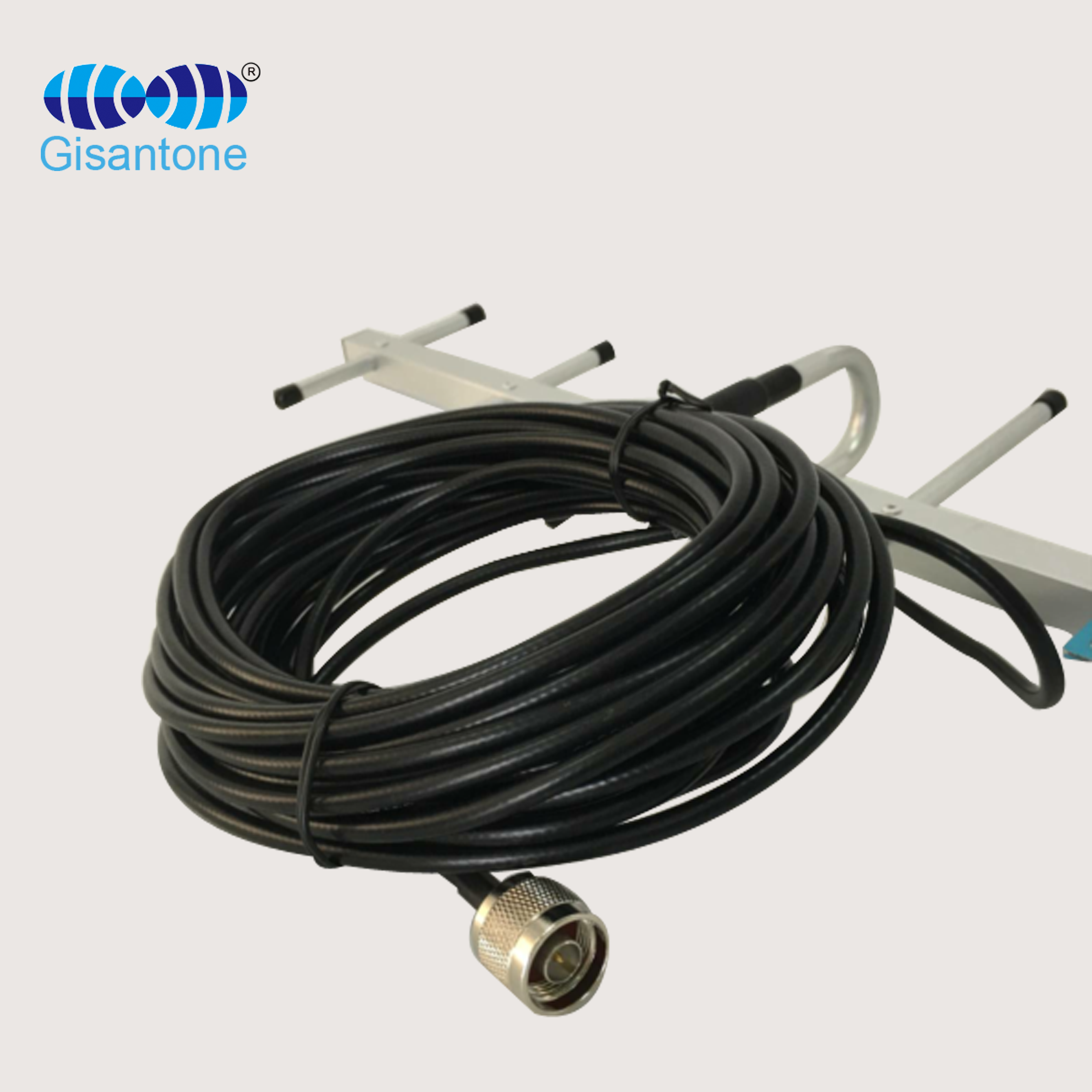

Cable Type |
RG58/U |
|
Cable Length |
10M |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
700g |
|
Pole Diameter |
Φ35~φ55mm |
|
Size |
430*165mm |
|
Rated Wind Velocity |
210km/h |
|
Radiating Element |
5 |
|
Package Size |
48*33*44CM / 20PCS |
|
Weight |
13.4KG |
806-960MHz 8DBI Yagi antenna
