- Name：

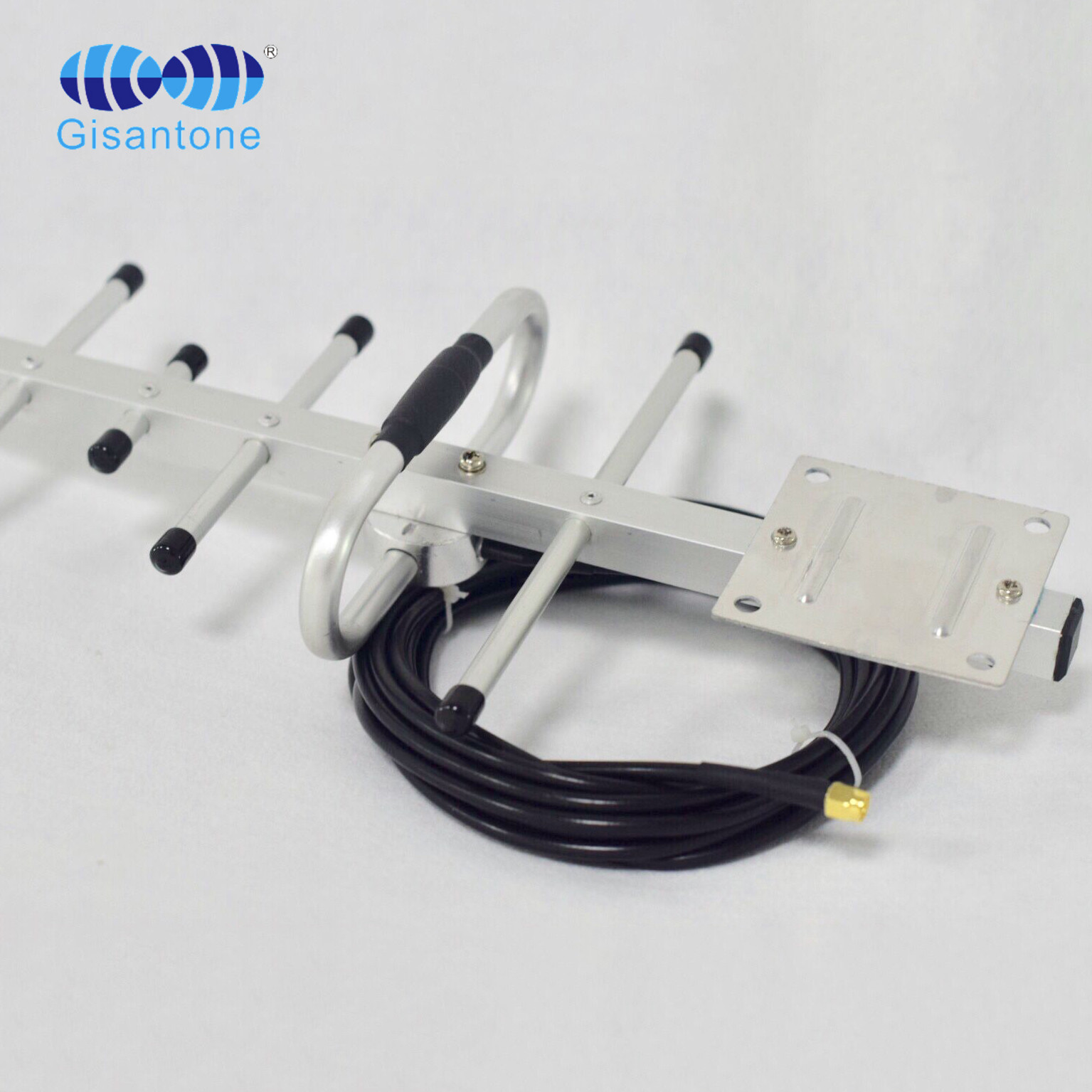

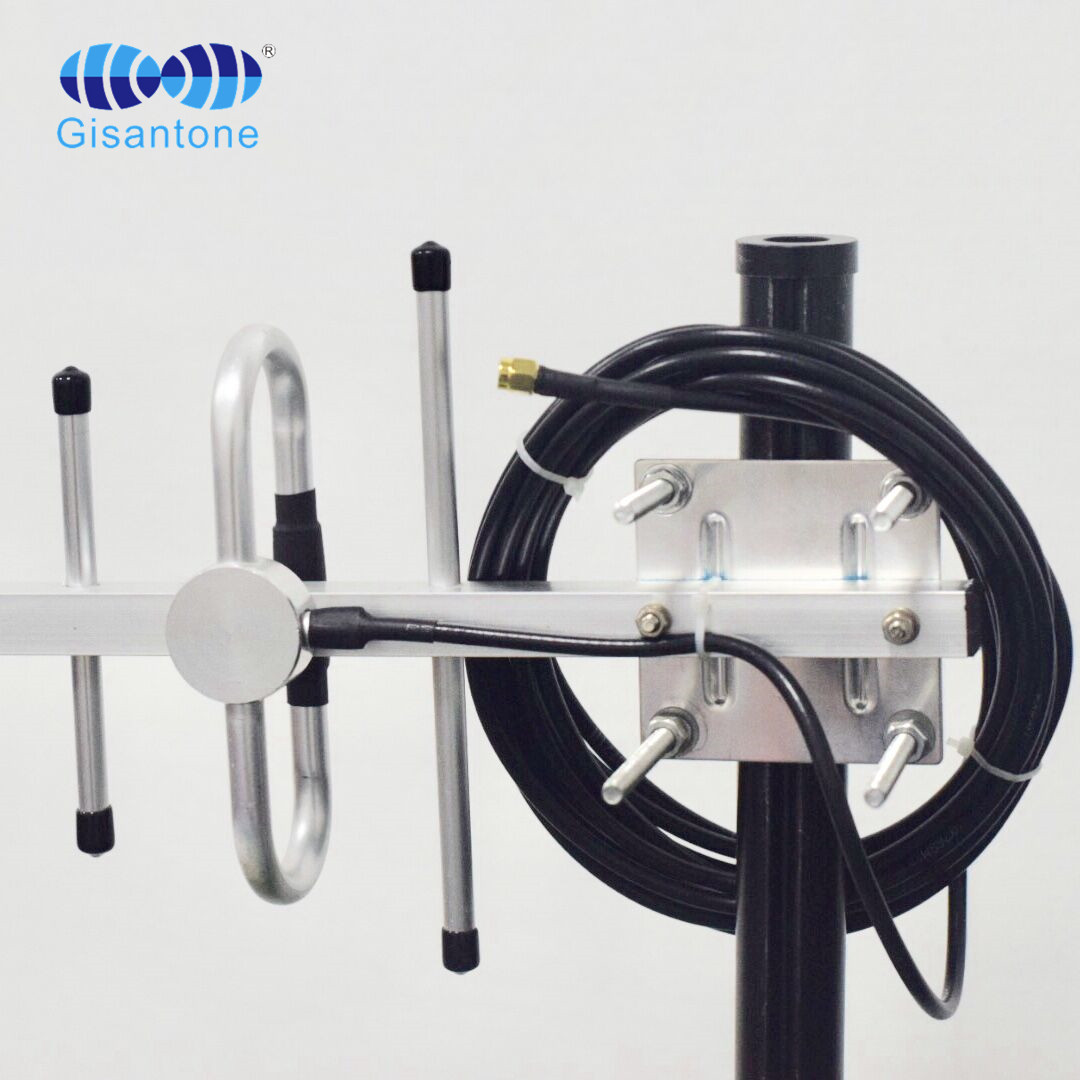

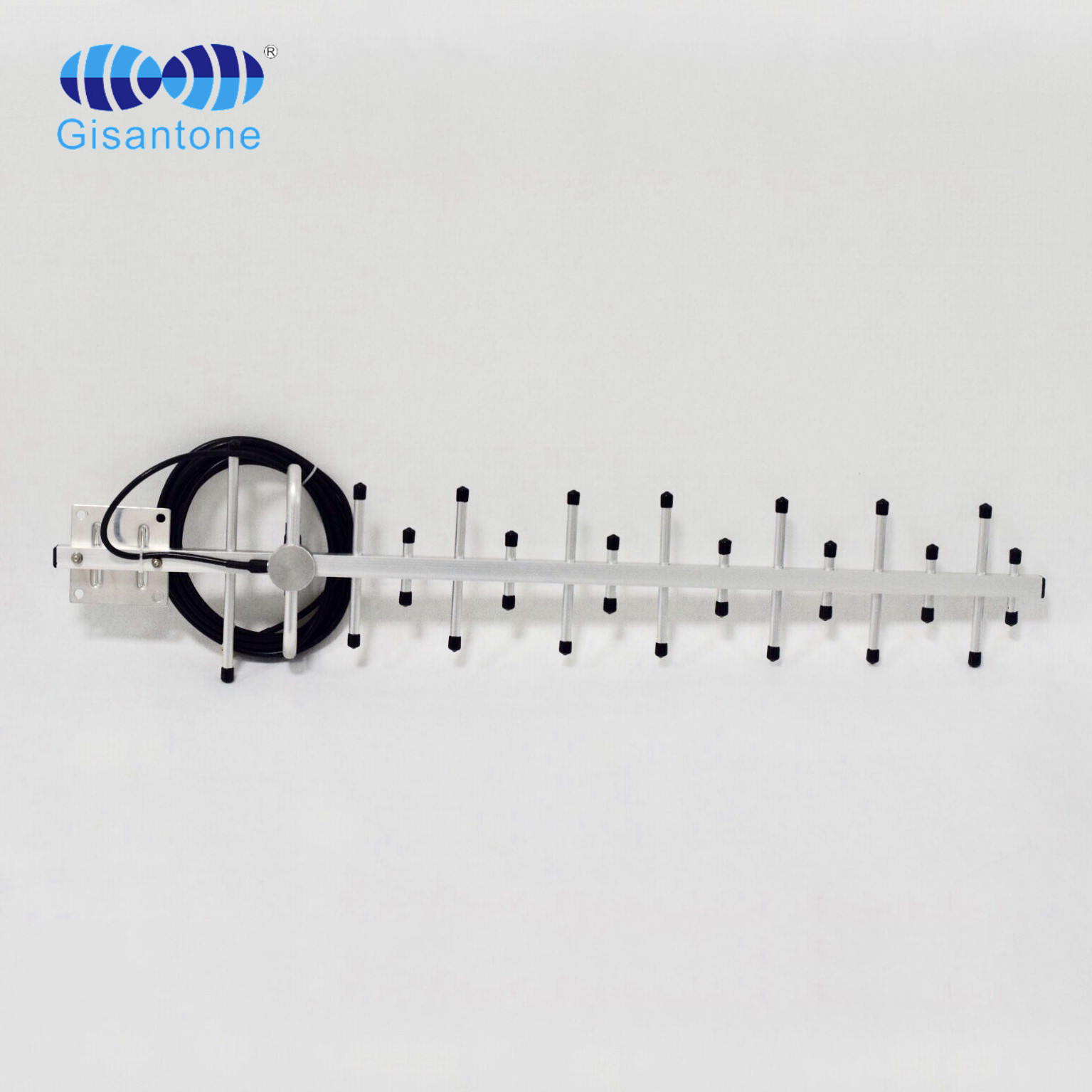

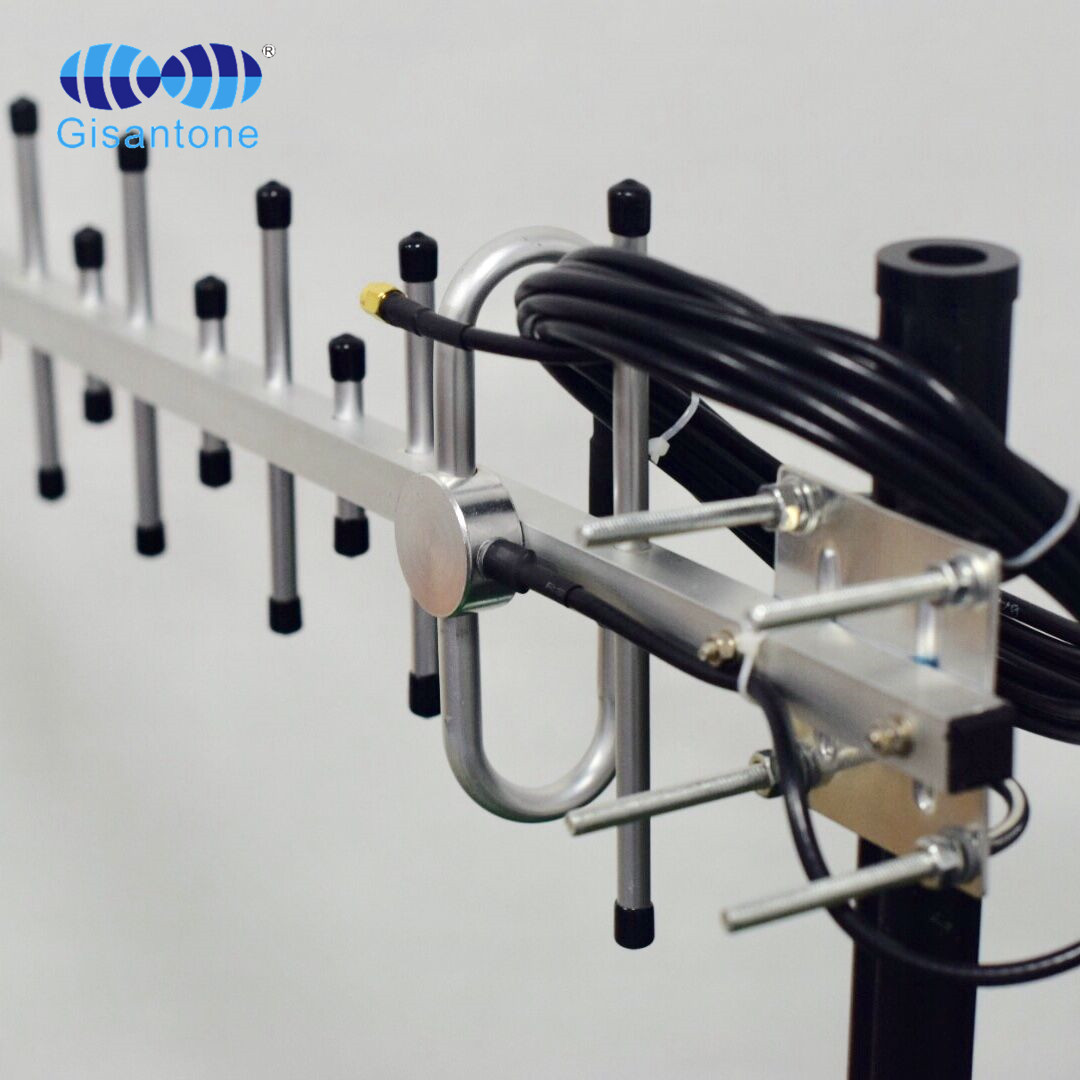

12DBI directional Dual band yagi antenna
- Model No.：
G13285F
- Frequency Range ：
900/1800MHz
- Gain：
12DBI
- Cable Length：
5M RG58U
- Connector：
SMA male
|
Electrical Specifications |
|
|
Model NO. |
G13285F |
|
Frequency Range |
900/1800MHz |
|
Gain |
12Dbi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical & Horizontal |
|
Horizontal Half Power Angle |
50° |
|
Vertical Half Power Angle |
45° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Cable Type |
RG58U/Black |
|
Cable Length |
5m |
|
Connector Type |
SMA male |
|
Antenna Weight |
0.525kg |
|
Size |
740x180x55mm |
|
Pole Diameter |
Φ35~φ55mm |
|
Rated Wind Velocity |
210 km/h |
|
Antenna Cover Material |
Aluminum |
|
Radiating Elements |
16 |
|
Package Size |
77*41*69CM/20pcs |
|
Weight |
11KG |
12DBI directional Dual band yagi antenna
