- Name：

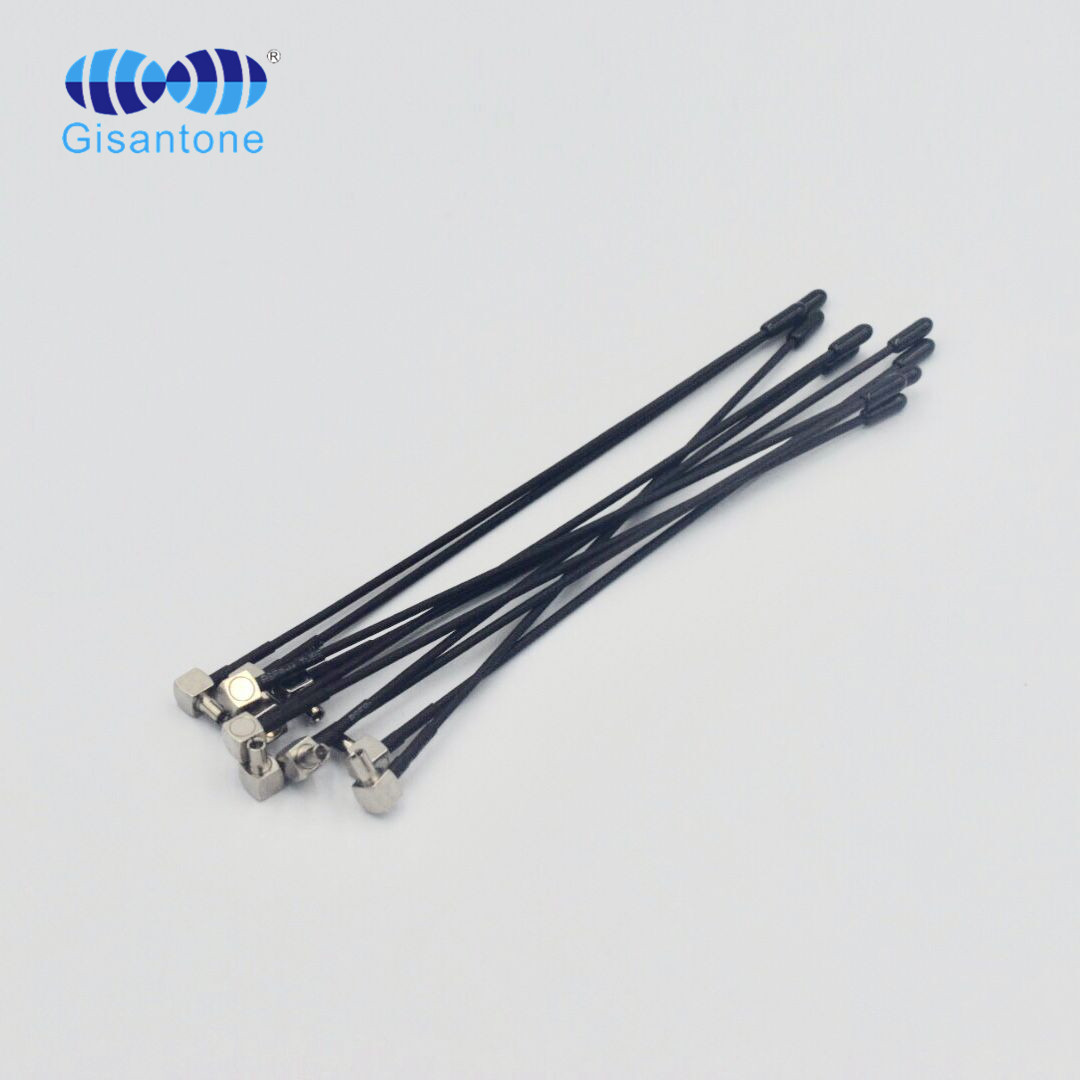

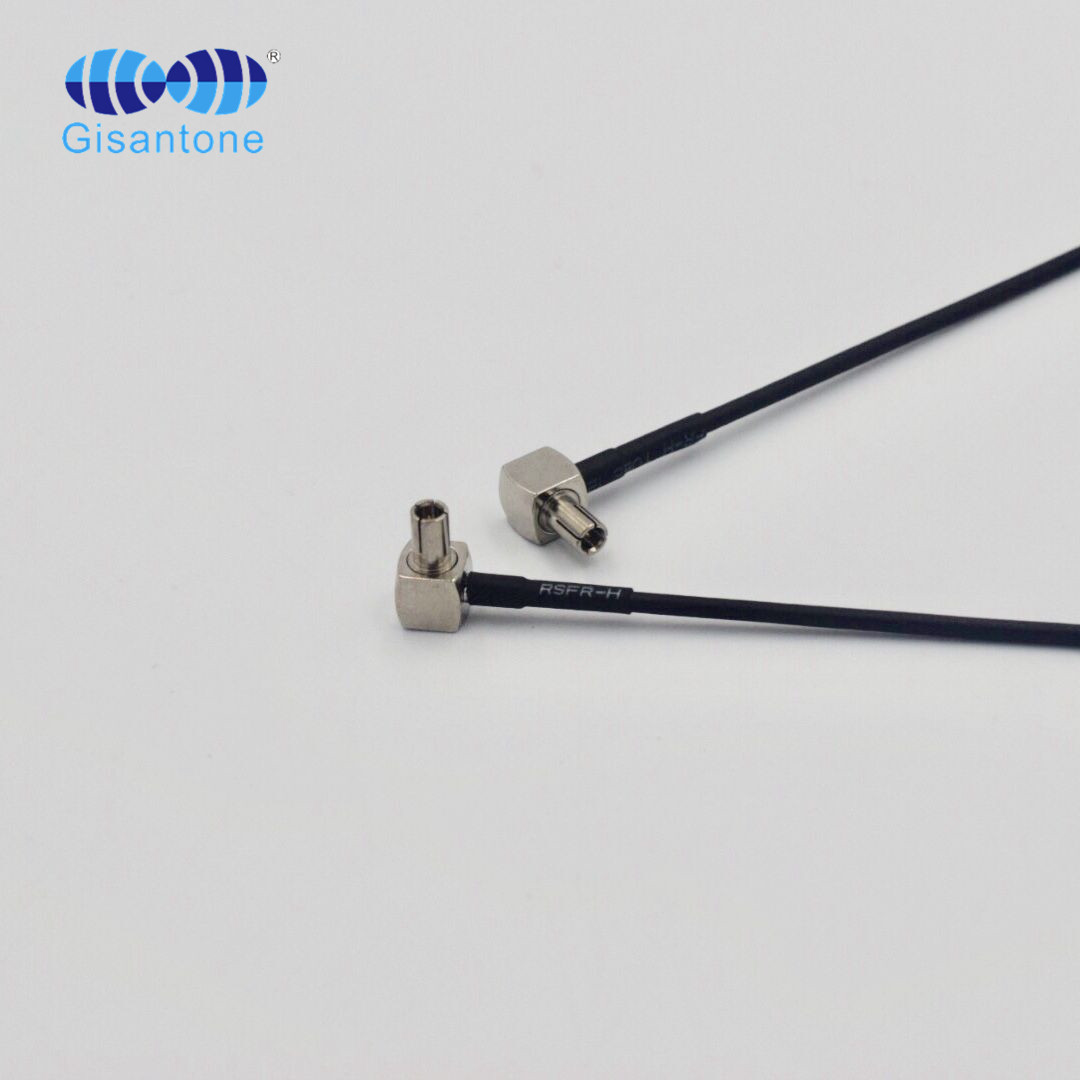

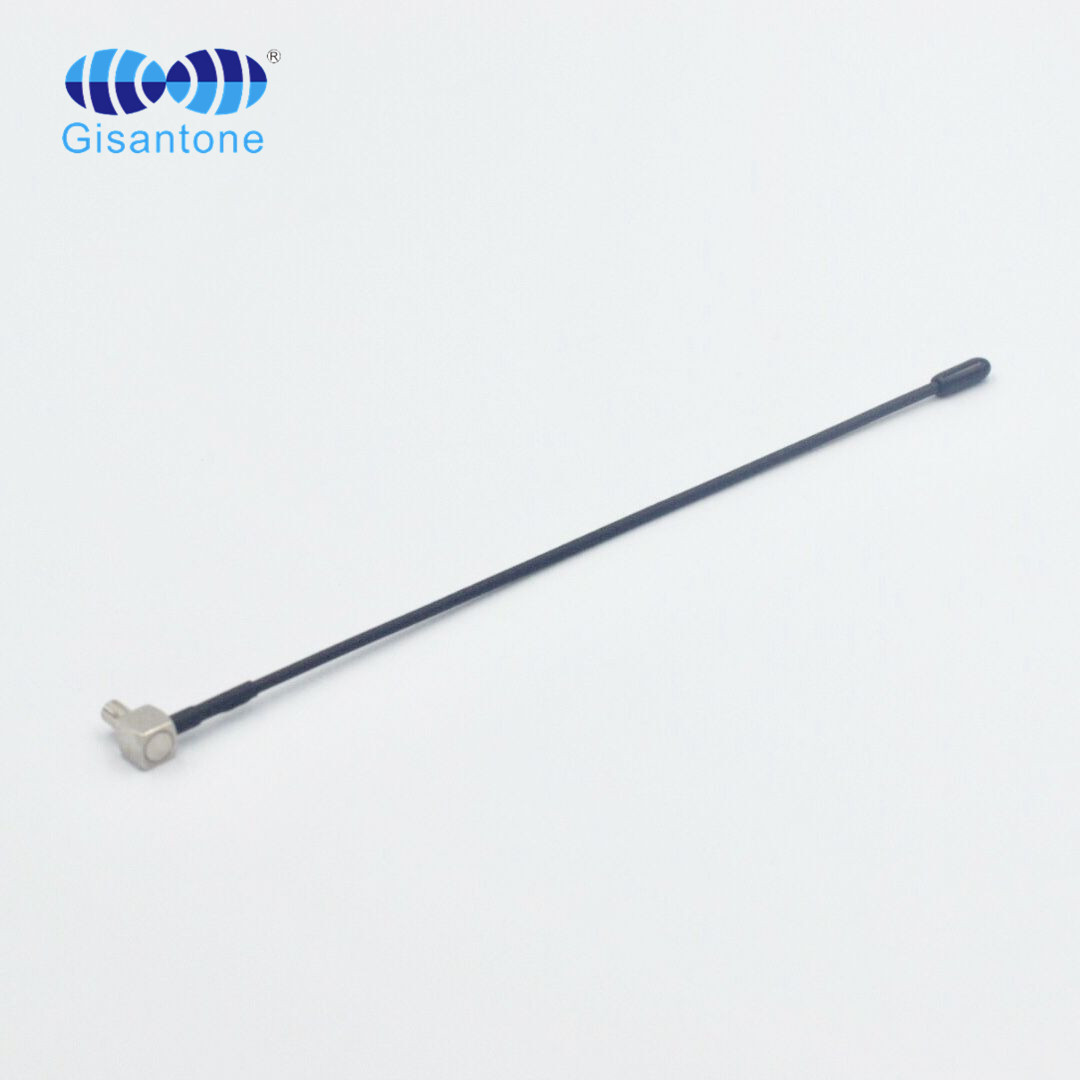

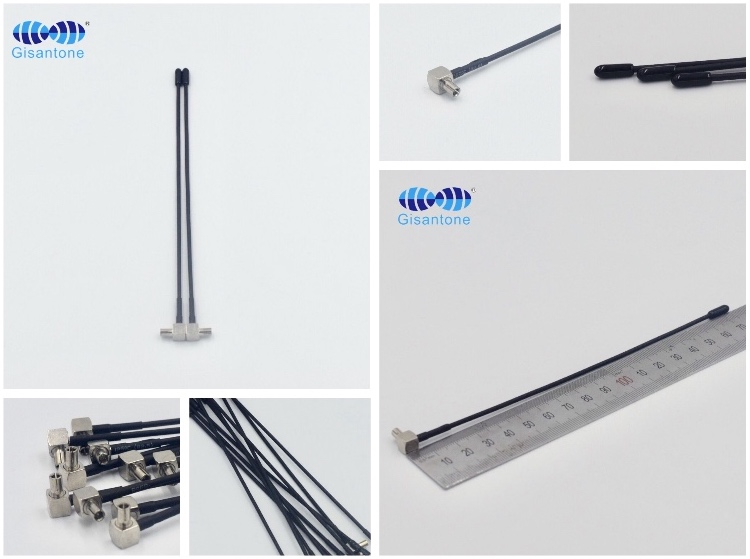

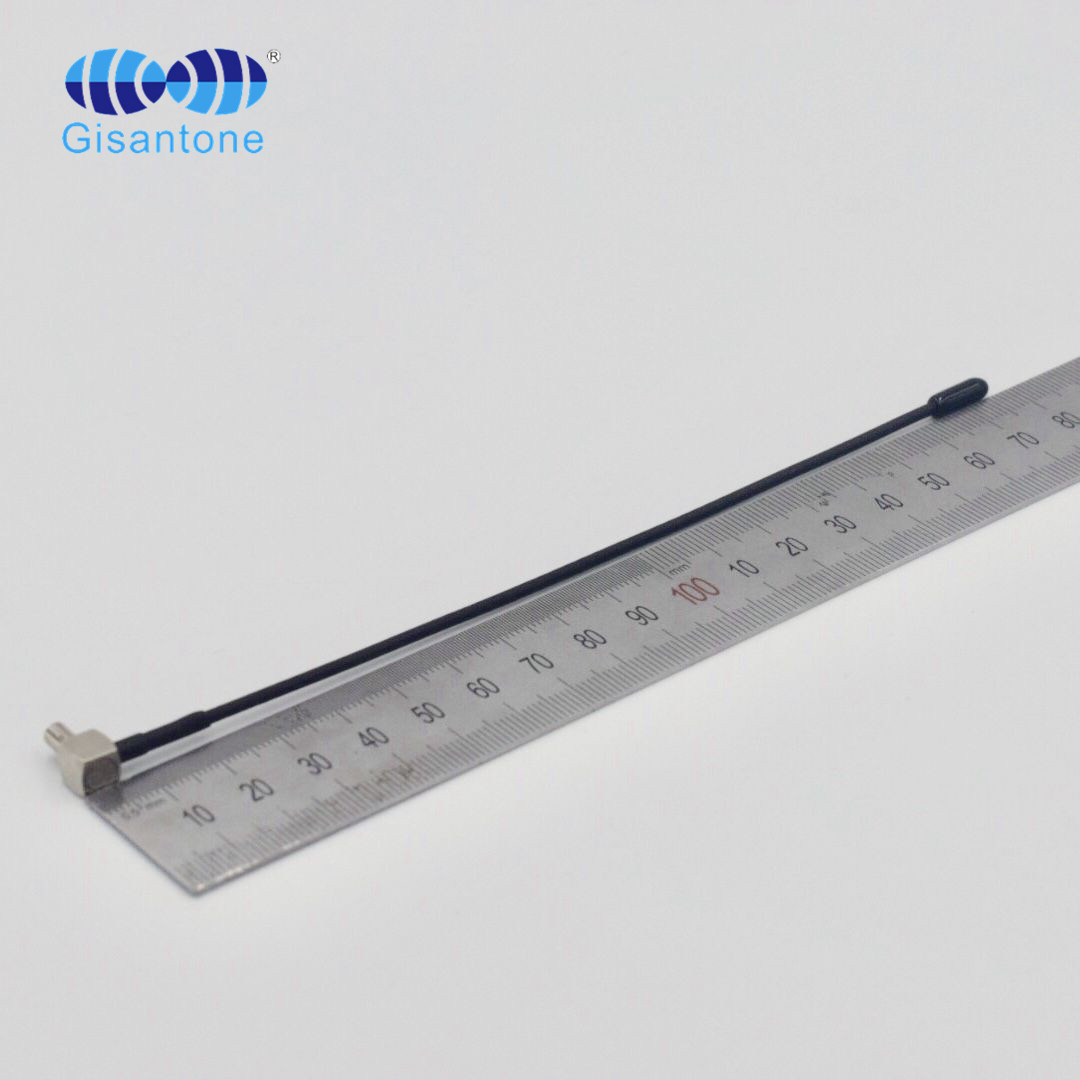

698-2700MHz 5DBI whip antenna
- Model No.：
G15591C
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
5DBI
- Cable Length：
/
- Connector：
TS9
|
Electrical Specifications |
|
|
Model No. |
G15591C |
|
Frequency Range |
698-960/1710-2700MHz |
|
Gain |
5Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
20W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
TS9 |
|
Cable Type |
/ |
|
Cable Length |
/ |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
4.6g |
|
Size |
Φ0.2 x (175±5) (mm) |
|
Antenna color |
Black |
698-2700MHz 5DBI whip antenna
