- Name：

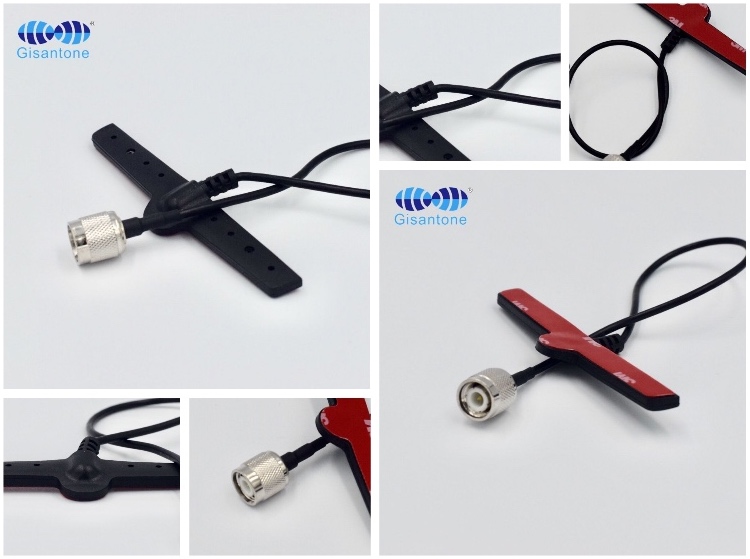

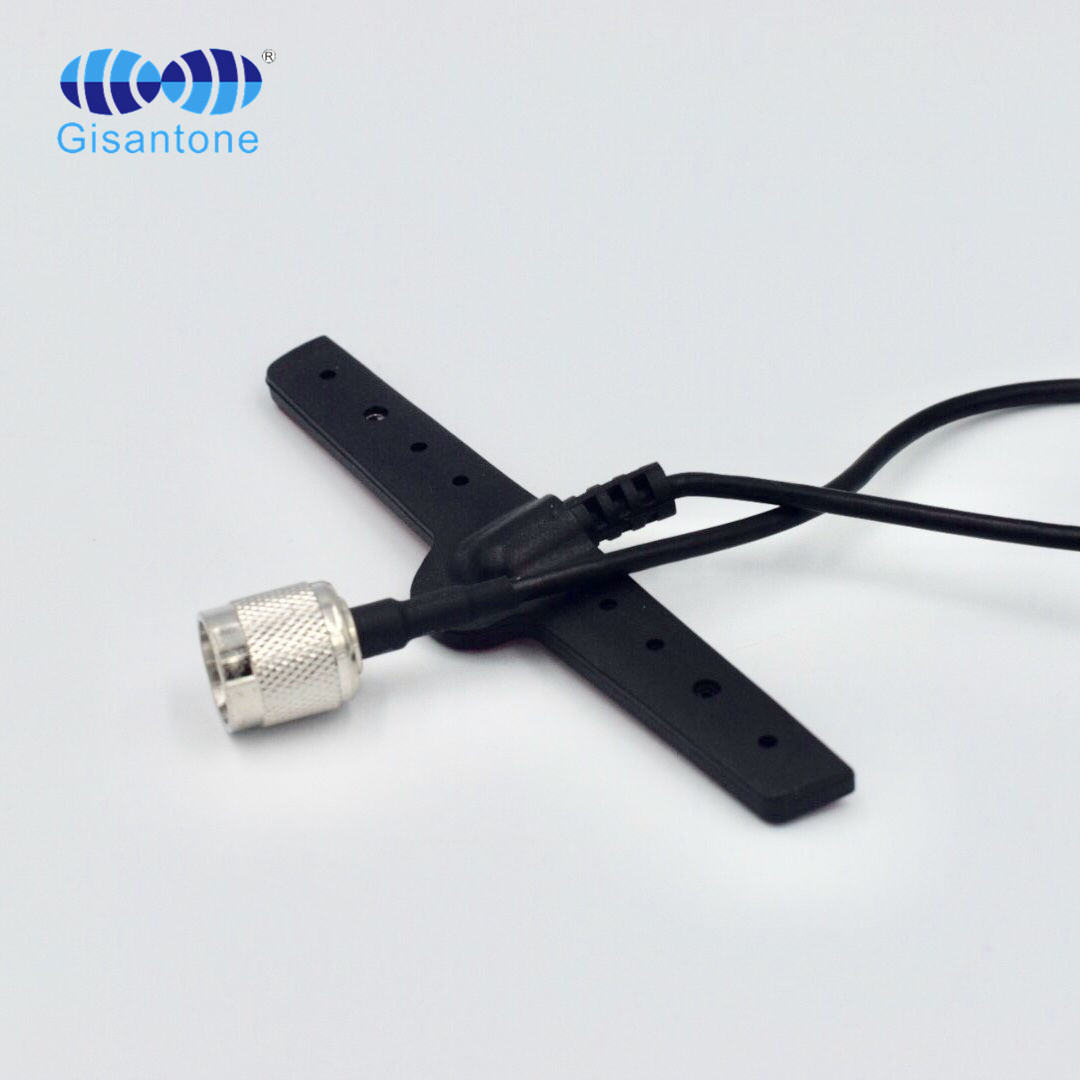

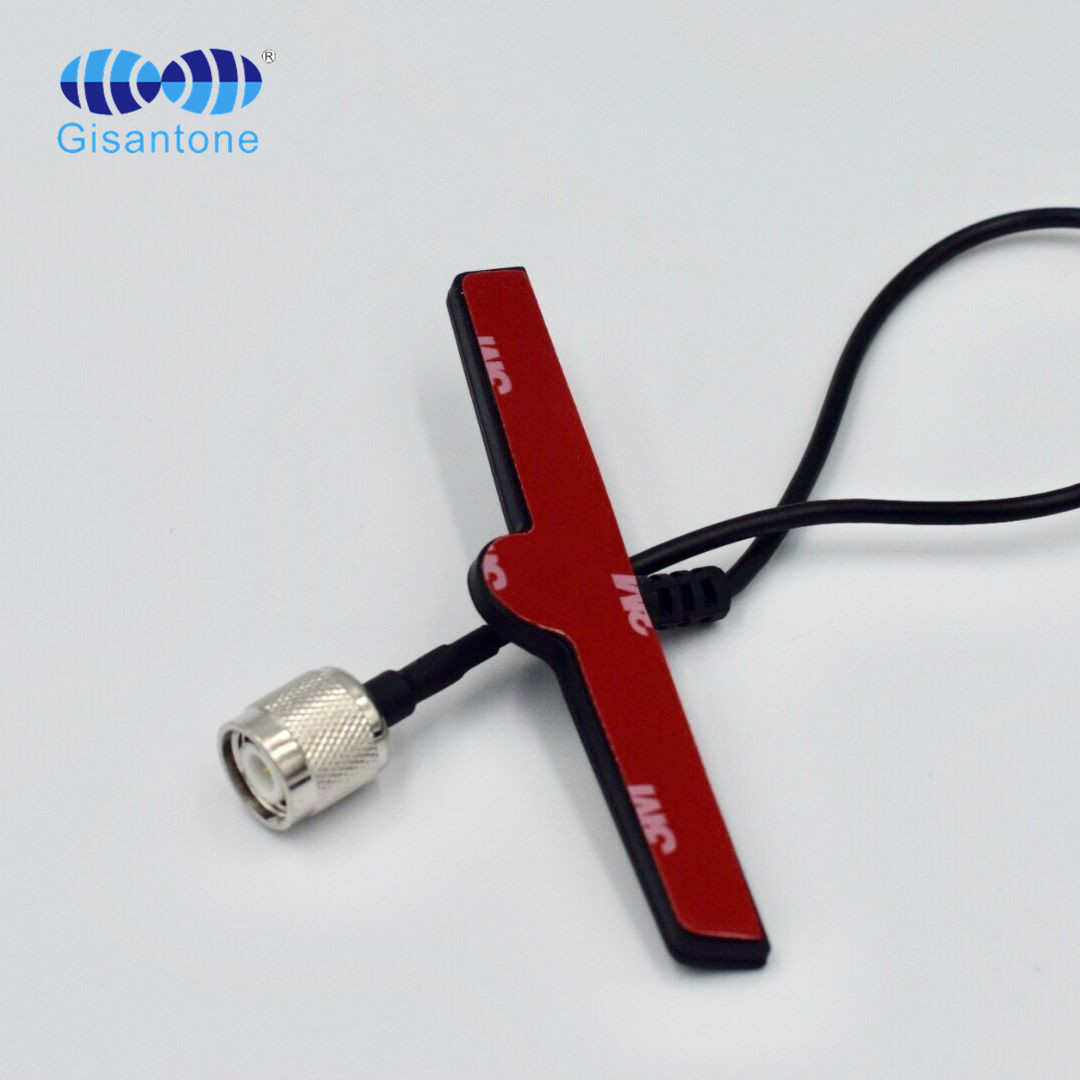

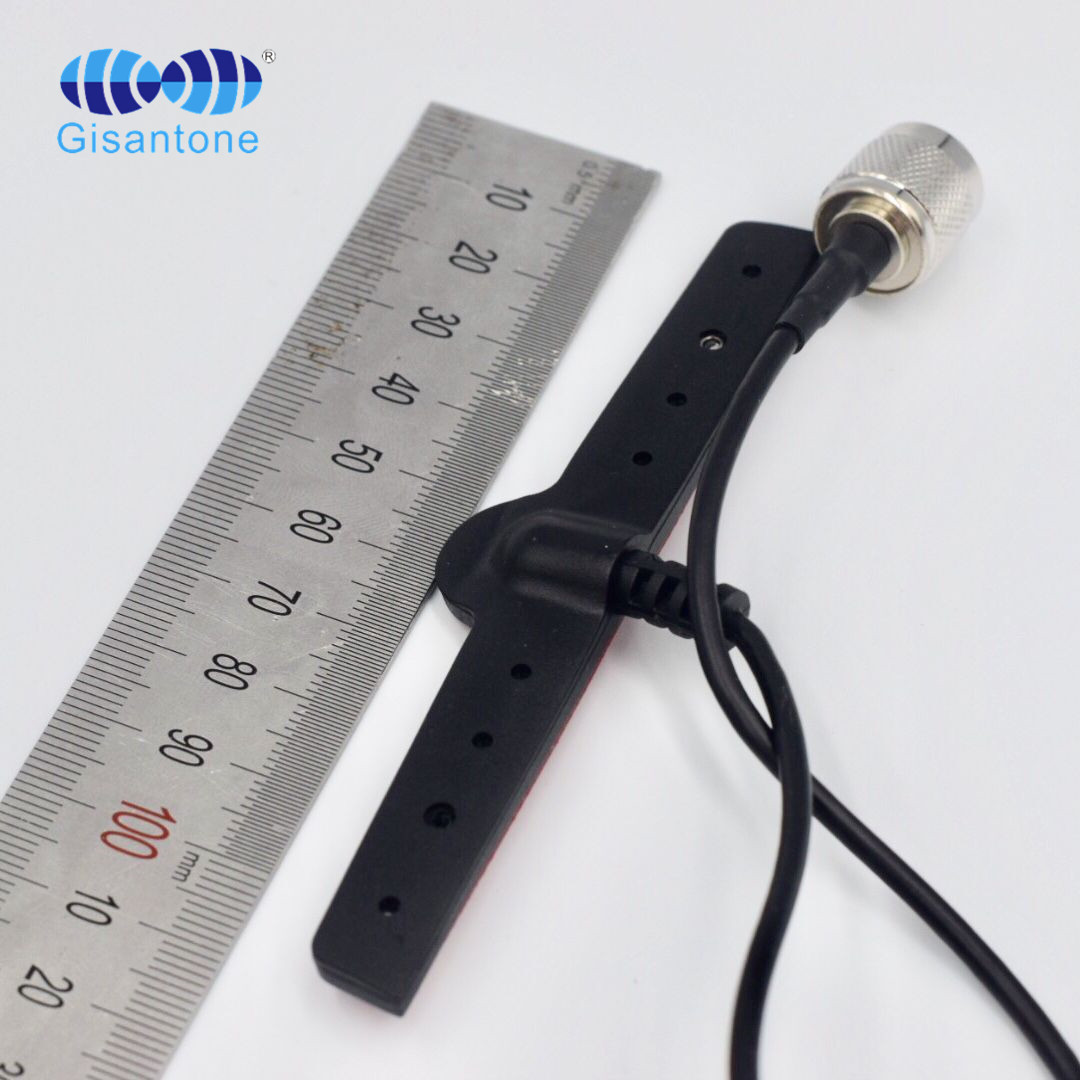

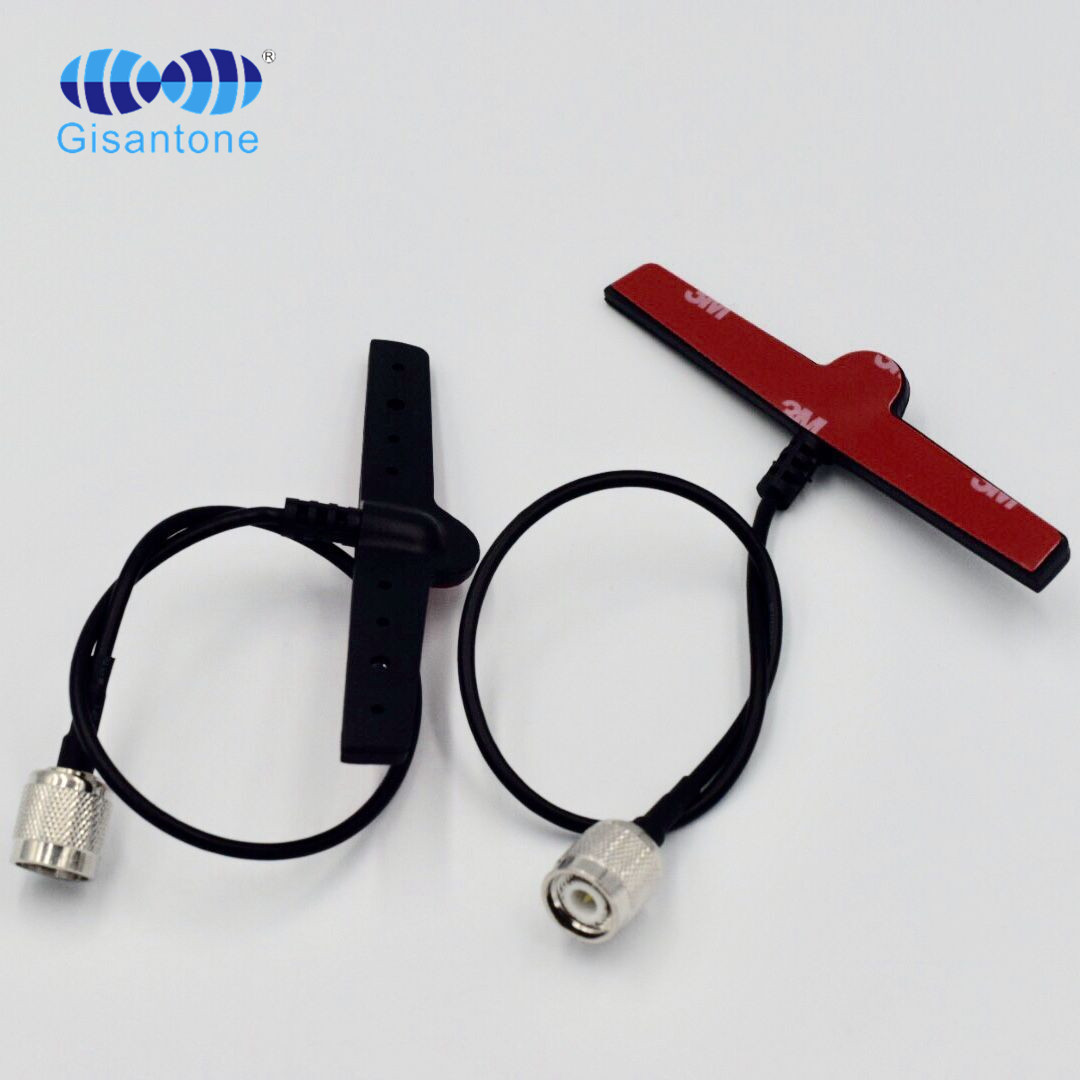

824/2483MHz 3/5DBI car antenna
- Model No.：
G19021A
- Frequency Range ：
824-2483MHz
- Gain：
3/5DBI
- Cable Length：
25CM RG174
- Connector：
TNC male
|
Electrical Specifications |
|
|
Model No. |
G19021A |
|
Frequency Range |
806-960/1710-1990/2400-2483MHz |
|
Gain |
3/5Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
80° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
TNC male |
|
Cable Type |
RG174 Black |
|
Cable Length |
25CM |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
0.4kg |
|
Size |
99*70mm |
|
Rated Wind Velocity |
210km/h |
|
Color |
Black |
824/2483MHz 3/5DBI car antenna
