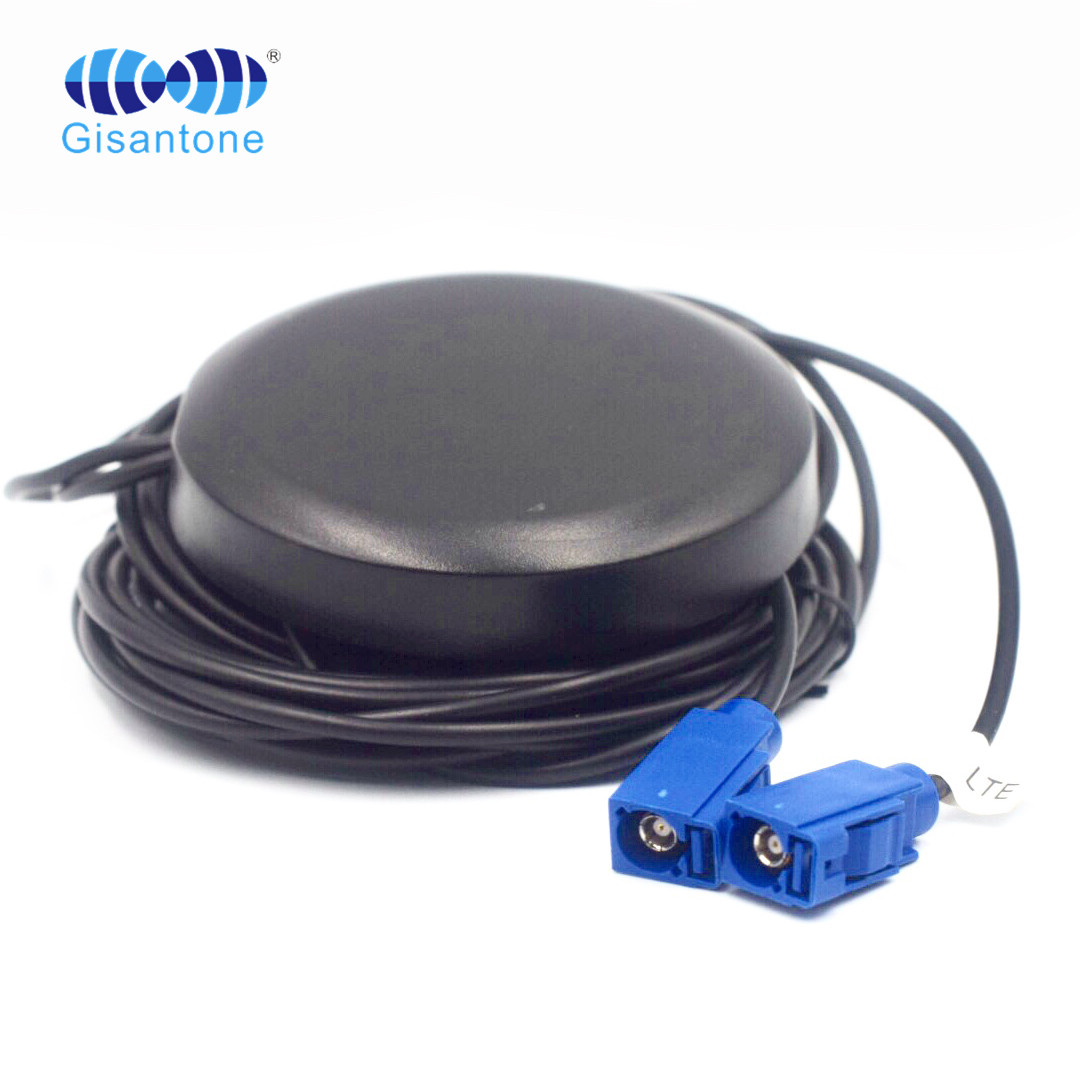

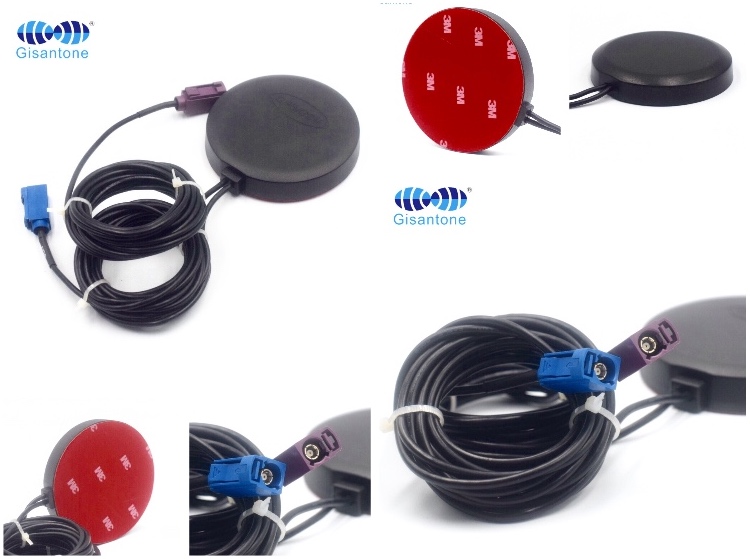

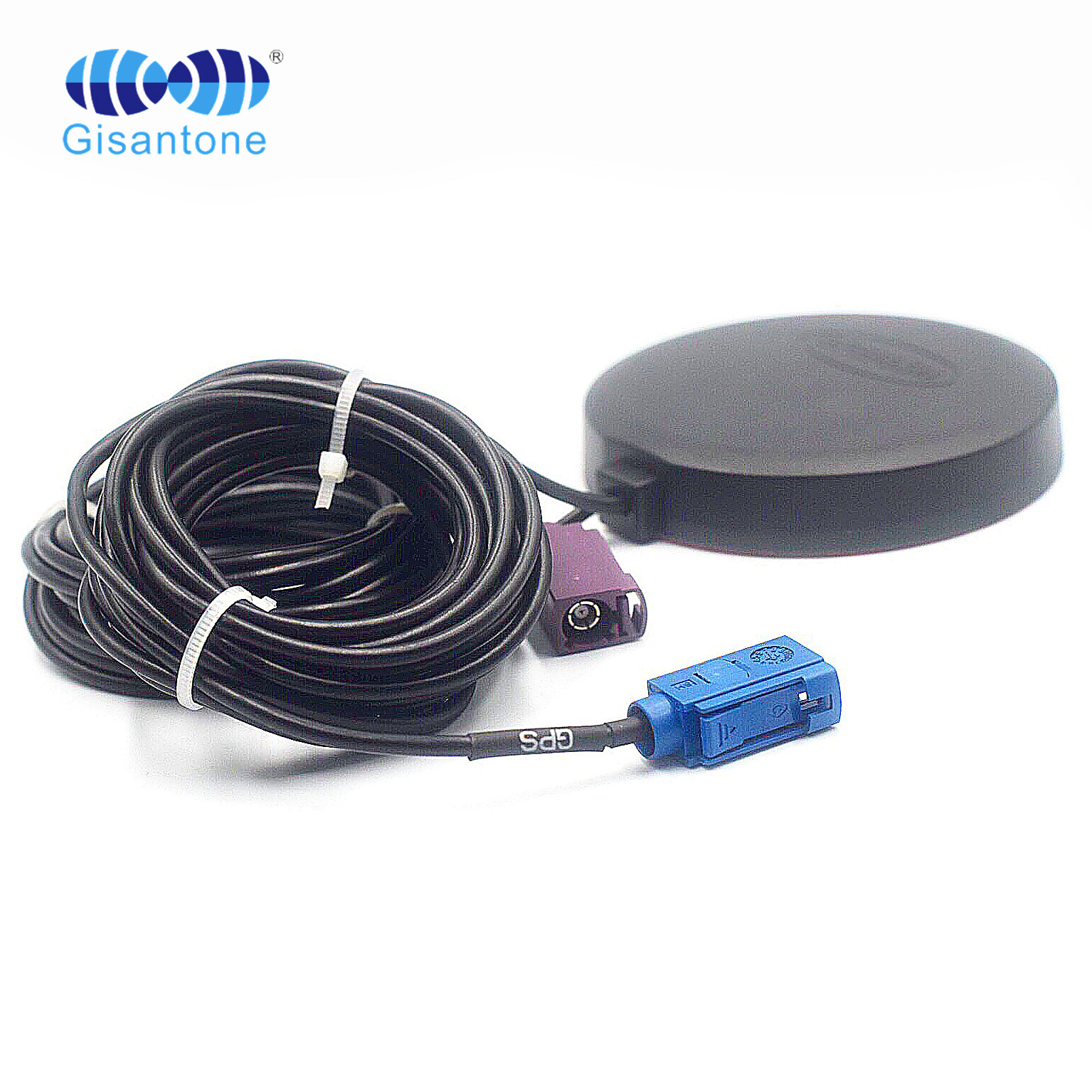

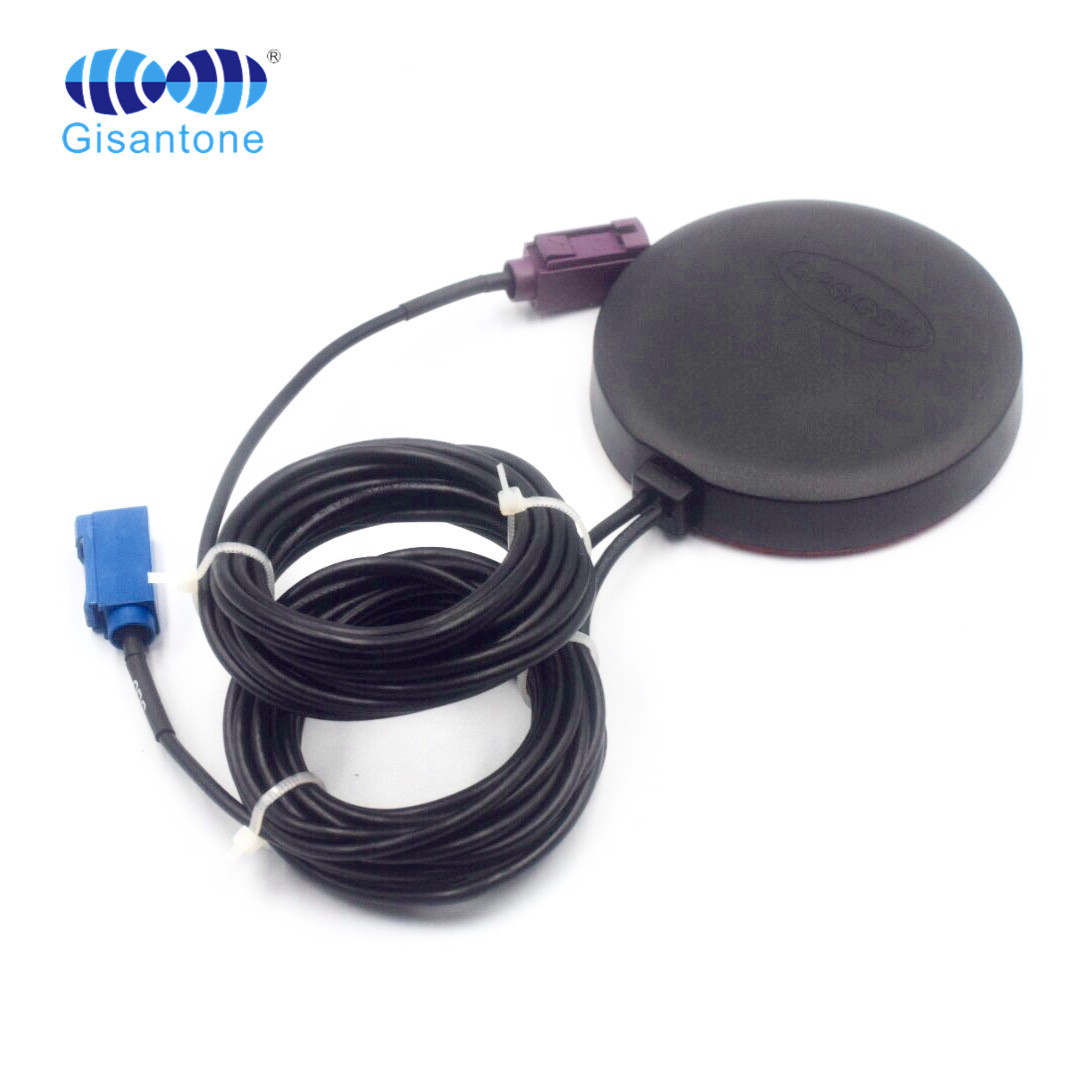

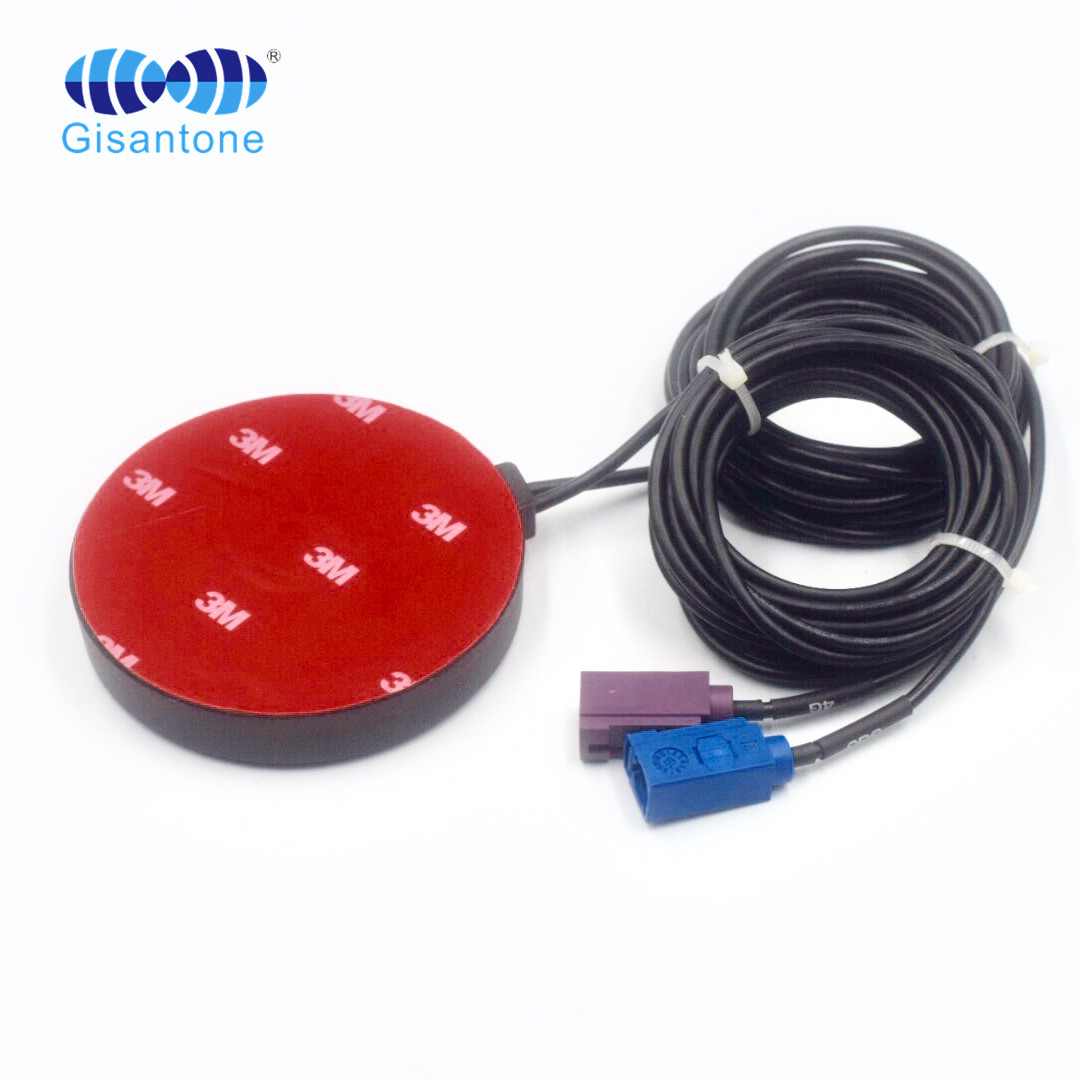

- Name：
LTE&GPS dual band antenna
- Model No.：
G15210A
- Frequency Range ：
1575±5 + 824-960/1710-2170MHz
- Gain：
29DBI
- Cable Length：
30CM RG174
- Connector：
2*Fakra
|
GPS LTE Antenna |
Center Frequency range |
1575.42±1MHz+824-960/1710-2170MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
29dBic(Zenith) |
|
|
V.S.W.R |
≤1.5 |
|
|
Impedance |
50Ω |
|
|
Axial Ratio |
3dB(max) |
|
|
Dimension |
20*20*4mm |
|
|
LNA |
Gain |
26±2dB |
|
Noise Figure |
≤1.3 |
|
|
Filter Insertion Loss |
≤3dB |
|
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
|
Supply Voltage |
2.2-5V DC |
|
|
Current Consumption |
10~26mA |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
Fakra/MCX/SMA/SMB or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Magnet |
|
|
Environmental |
Operating Temperature |
-40℃~﹢65℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 |
|
|
Vibration |
10-55MHz with 1.5mm amplitude 2 hours |
|
|
Environmentally Friendly |
ROHS Compliant |
LTE&GPS dual band antenna
