- Name：

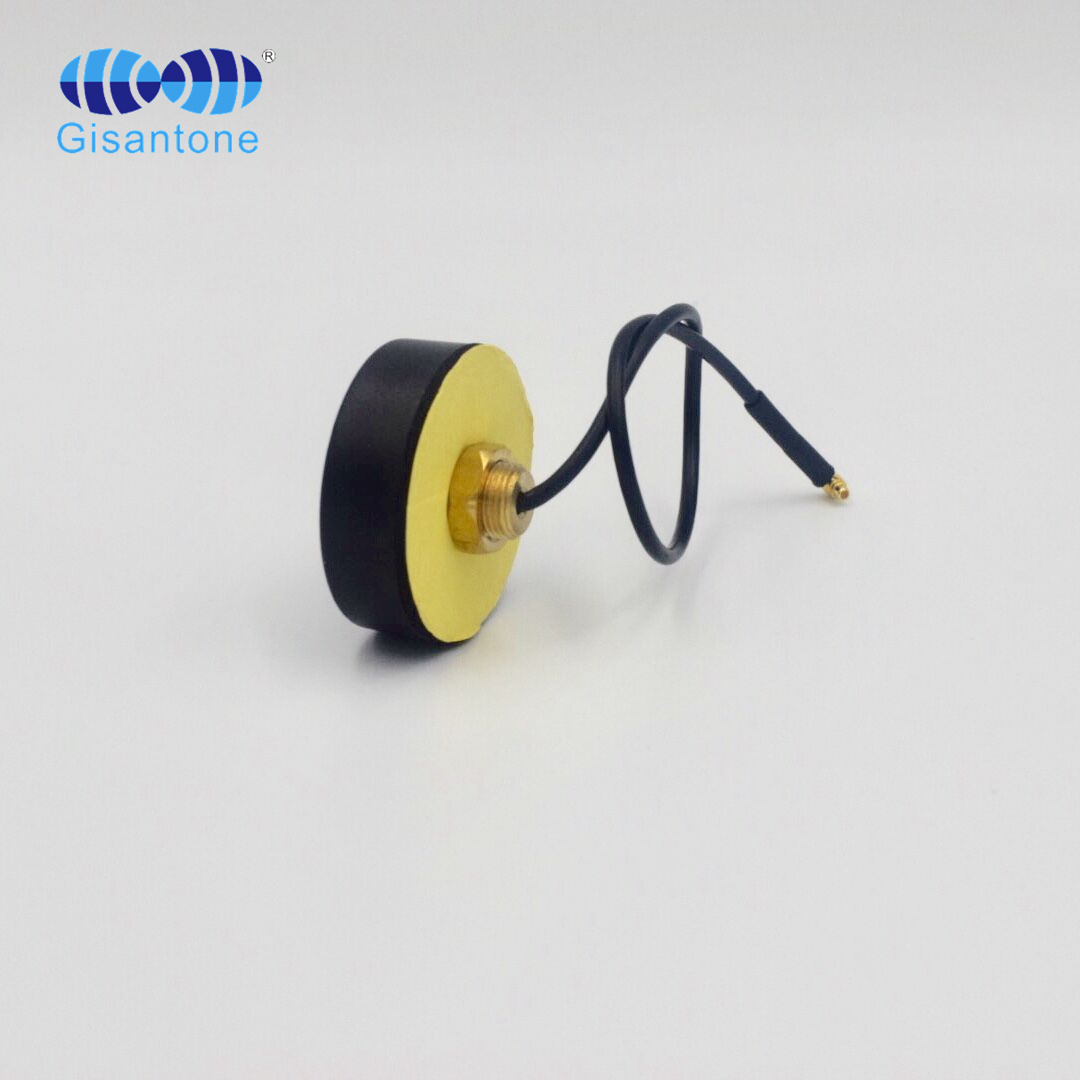

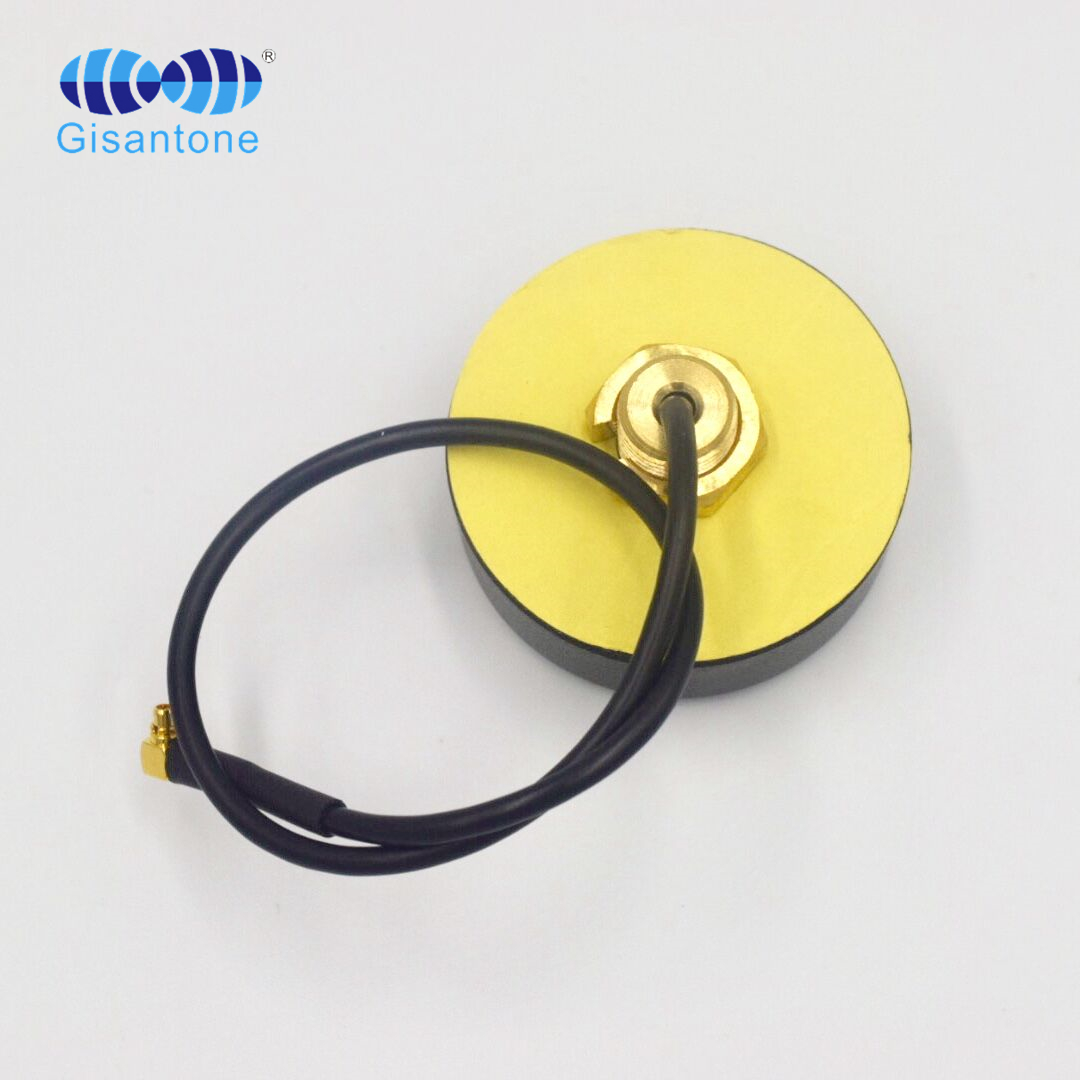

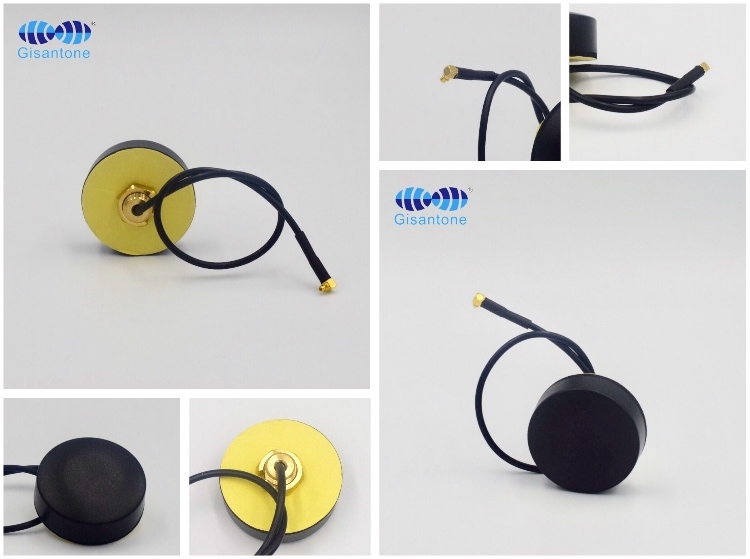

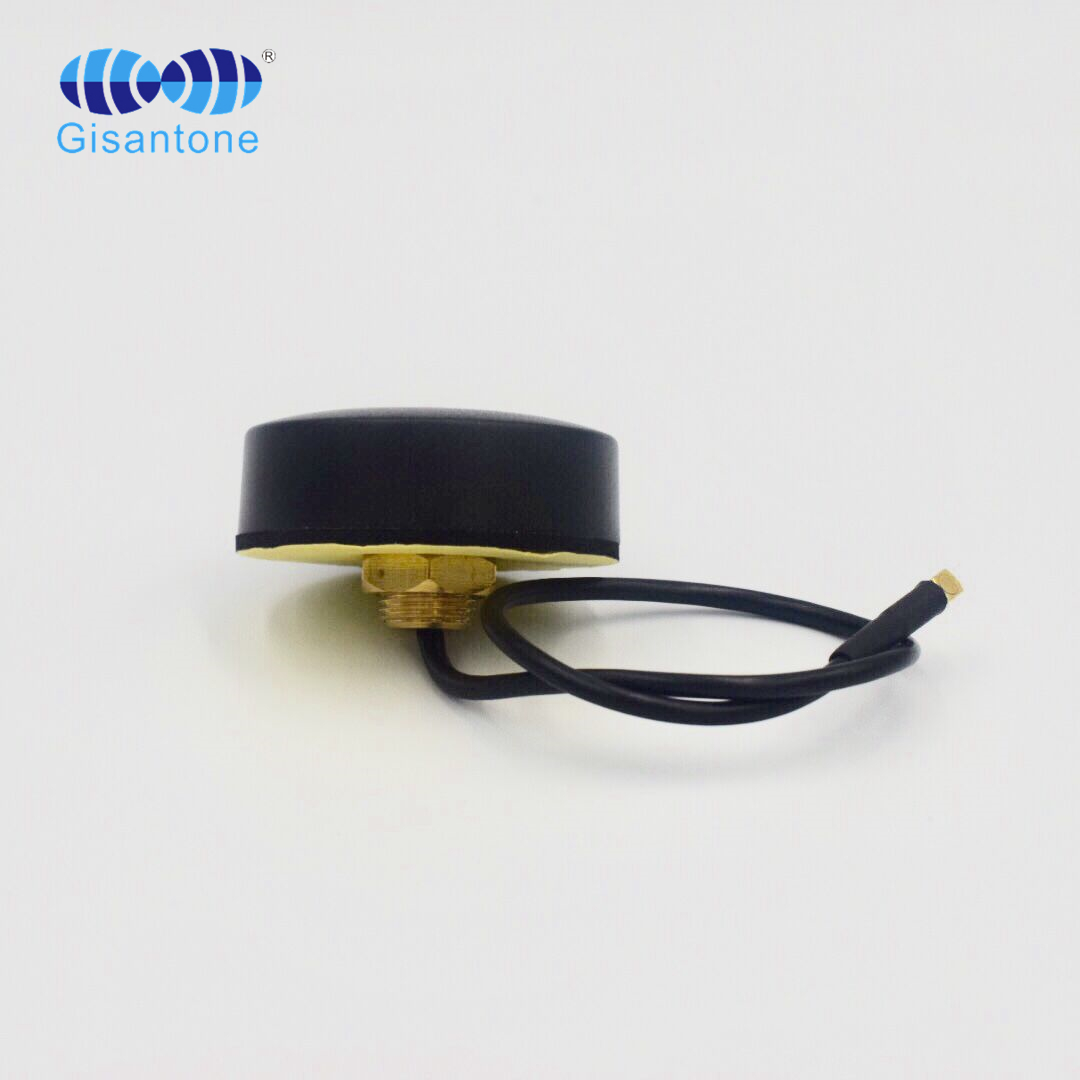

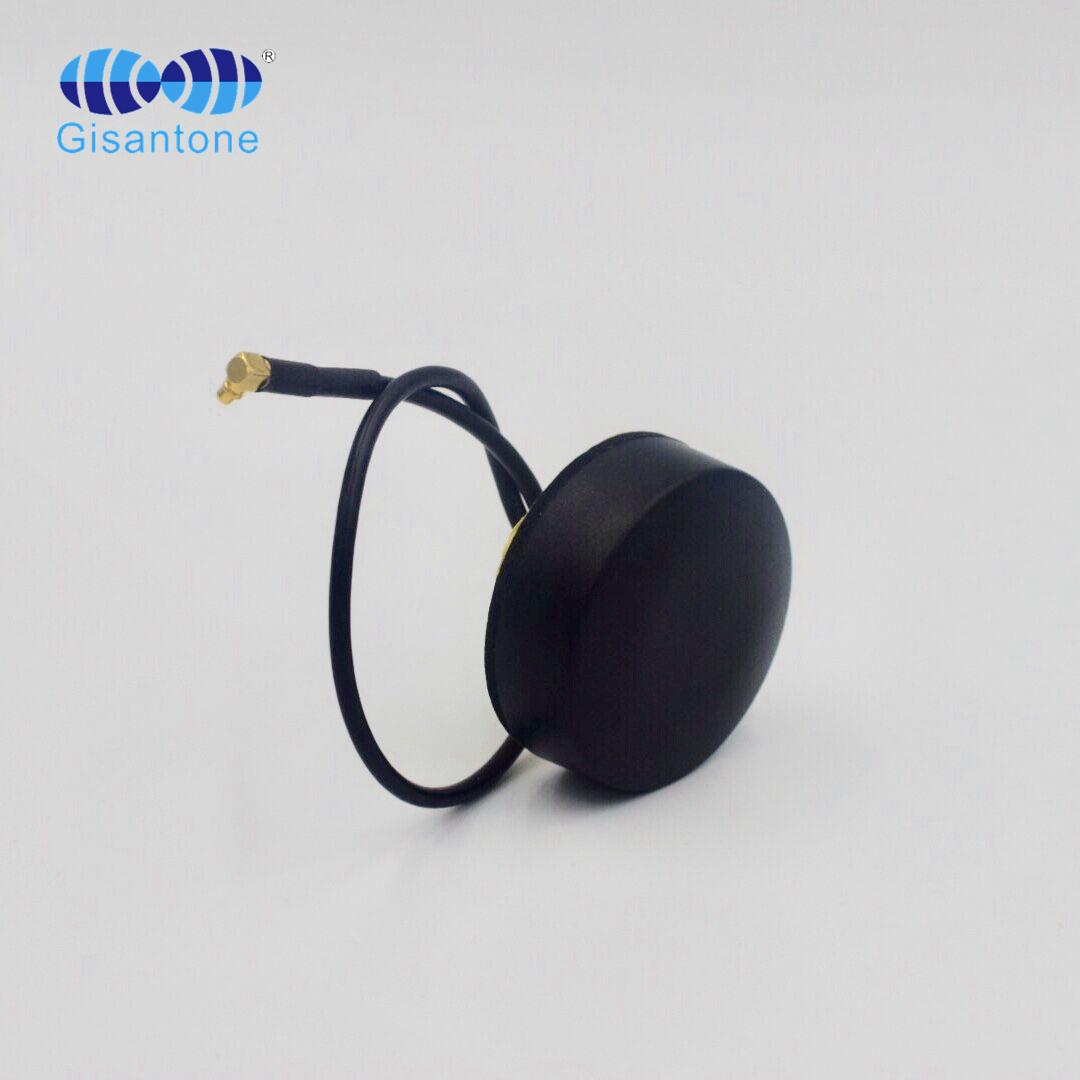

1575.42MHz 3DBI GPS antenna
- Model No.：
G15209B
- Frequency Range ：
1575.42MHz
- Gain：
3DBI
- Cable Length：
30CM RG174
- Connector：
MCX
|
Electrical Specifications |
||
|
Model NO. |
G15209B |
|
|
Frequency Range |
1575.42 MHz±3 |
|
|
Gain |
3dBi (Base on 7*7cm) |
|
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Right-handed circular |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
100° |
50° |
|
Max Input Power |
20W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
MCX |
|
|
Cable Type |
RG174 Black |
|
|
Cable Length |
30CM |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
40g |
|
|
Size |
Φ46x(27±0.5)mm |
|
|
Color |
Black |
|
1575.42MHz 3DBI GPS antenna
