- Name：

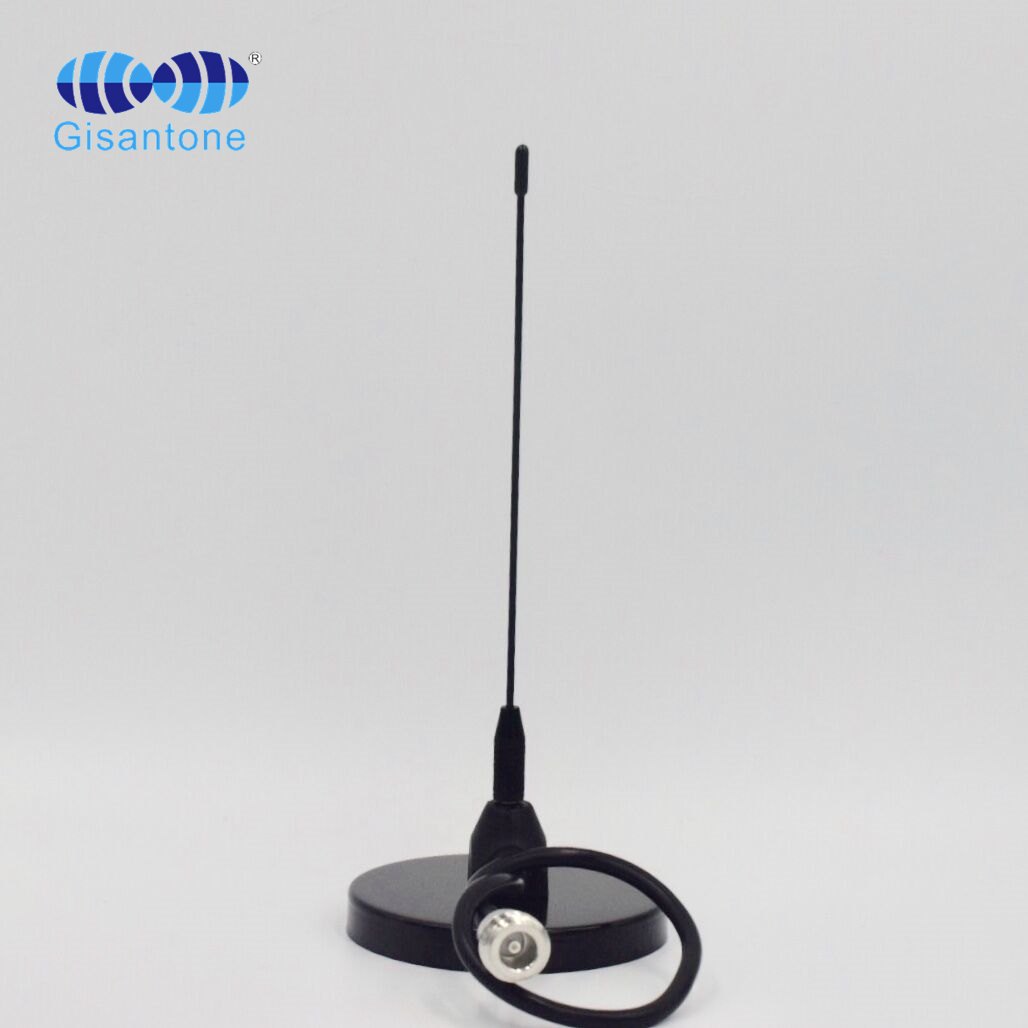

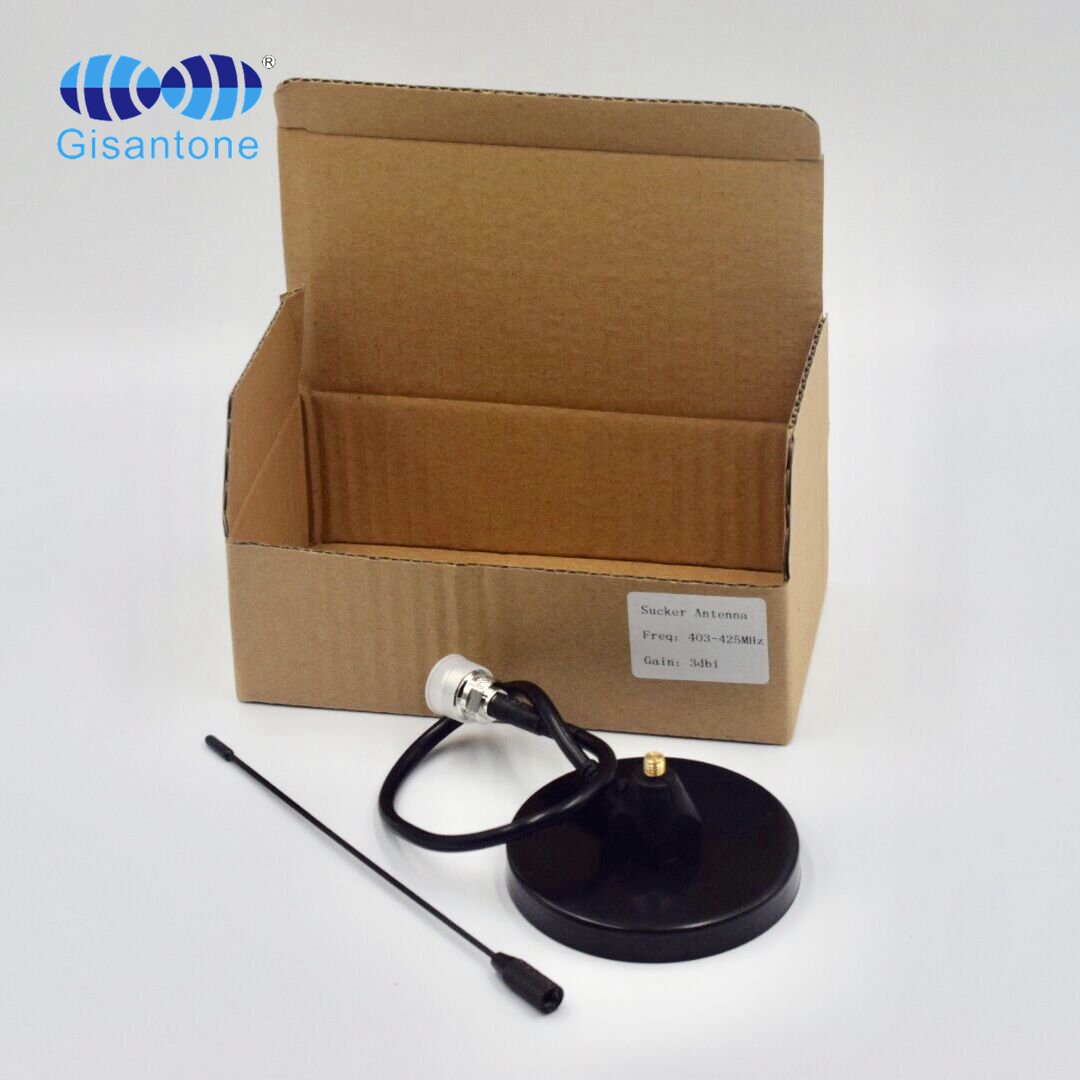

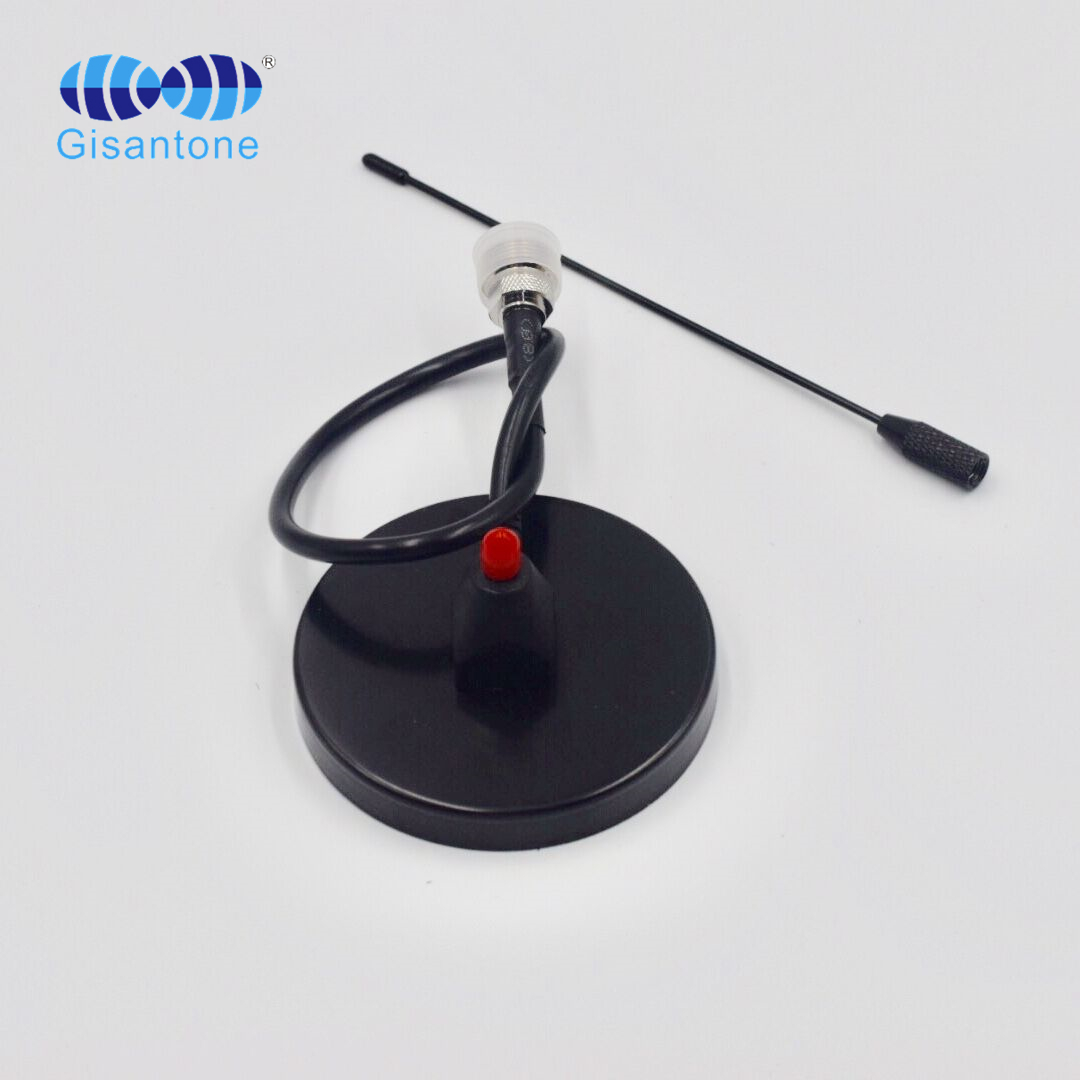

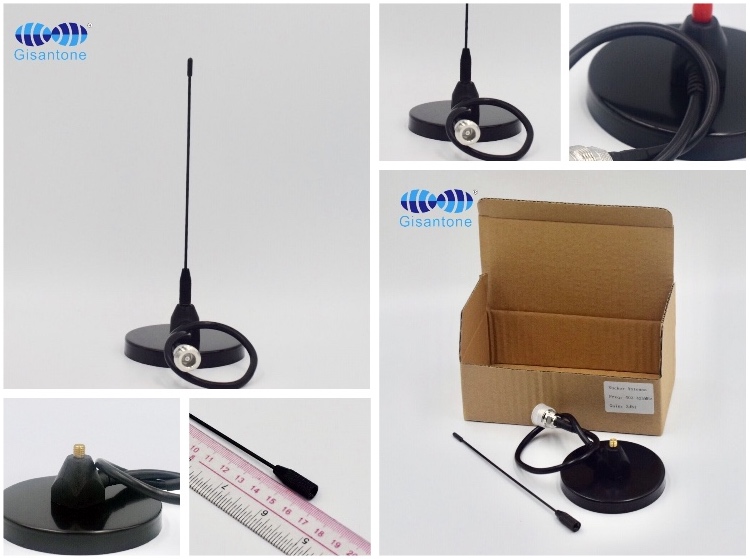

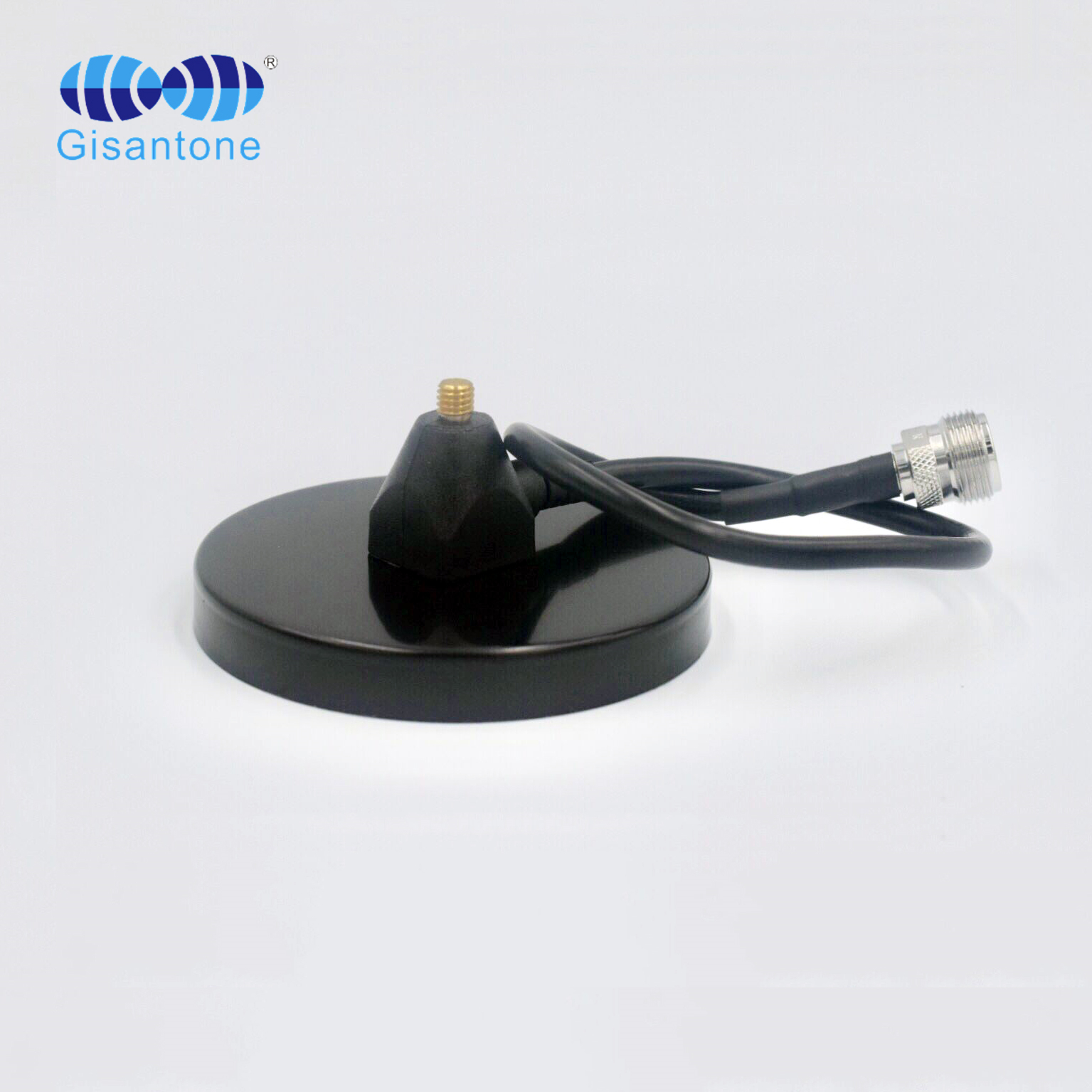

402-423MHz 3DBI magnetic antenna
- Model No.：
G15351A
- Frequency Range ：
402-423MHz
- Gain：
3DBI
- Cable Length：
30CM RG58U black
- Connector：
N female
|
Electrical Specifications |
|
|
Model No. |
G15351A |
|
Frequency Range |
403-423MHz |
|
Gain |
2-3dBi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
70° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Connector Type |
N-K |
|
Cable Type |
RG58U Black |
|
Cable Length |
30cm |
|
Antenna Weight |
330g |
|
Size |
Φ82x(200±5)mm |
|
Mounting |
Magnetic Base |
|
Color |
Black |
402-423MHz 3DBI magnetic antenna
