- Name：

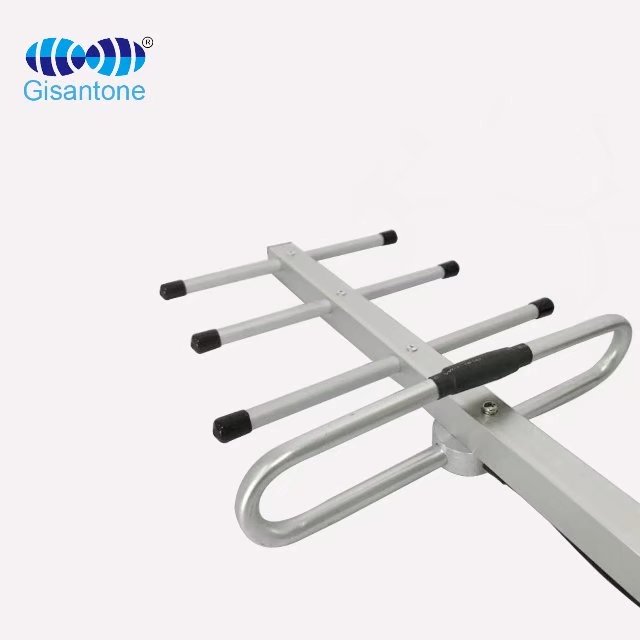

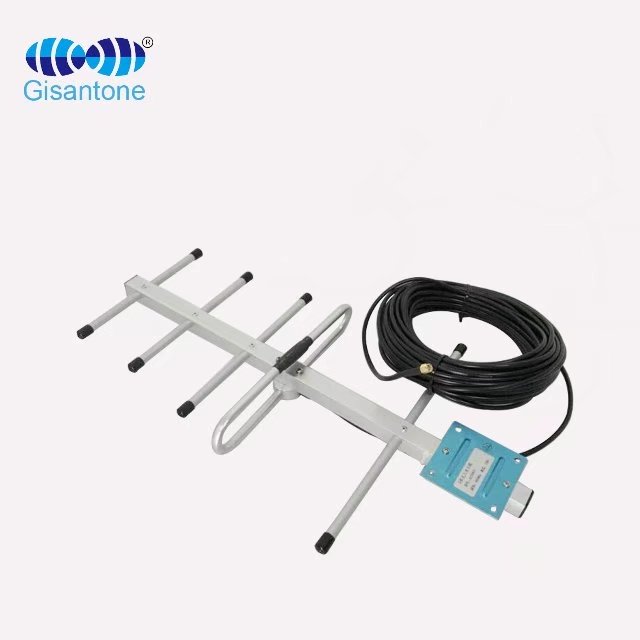

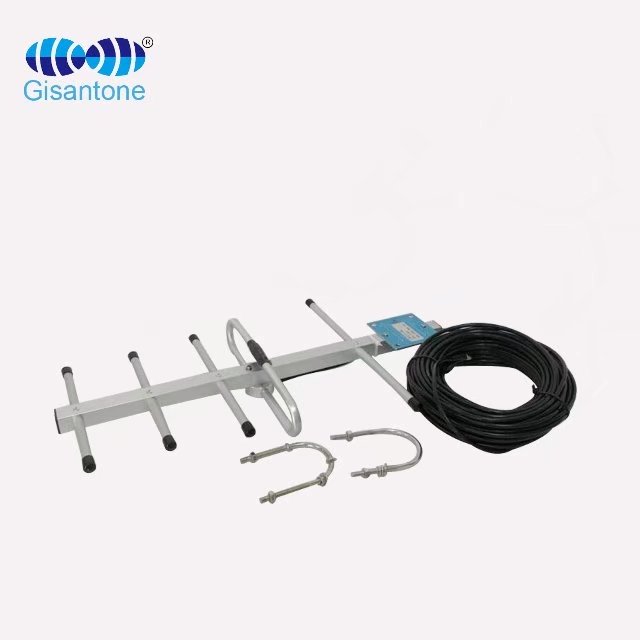

400MHz 5 elements 7DBI yagi antenna
- Model No.：
G13287B
- Frequency Range ：
400MHz
- Gain：
7DBI
- Cable Length：
15M RG58U
- Connector：
SMA male
|
Electrical Specifications |
|
|
Model NO. |
G13287B |
|
Frequency Range |
400MHz |
|
Gain |
7Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical & Horizontal |
|
Horizontal Half Power Angle |
50° |
|
Vertical Half Power Angle |
45° |
|
Max Input Power |
100W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Cable Type |
RG58U/Black |
|
Cable Length |
15m |
|
Connector Type |
SMA male |
|
Antenna Weight |
0.8kg |
|
Size |
495x290x55mm |
|
Pole Diameter |
Φ35~φ55mm |
|
Rated Wind Velocity |
210 km/h |
|
Antenna Cover Material |
Aluminum |
|
Radiating Elements |
5 |
|
