2.4G WI-FI/WIMAX Antenna
- Name：

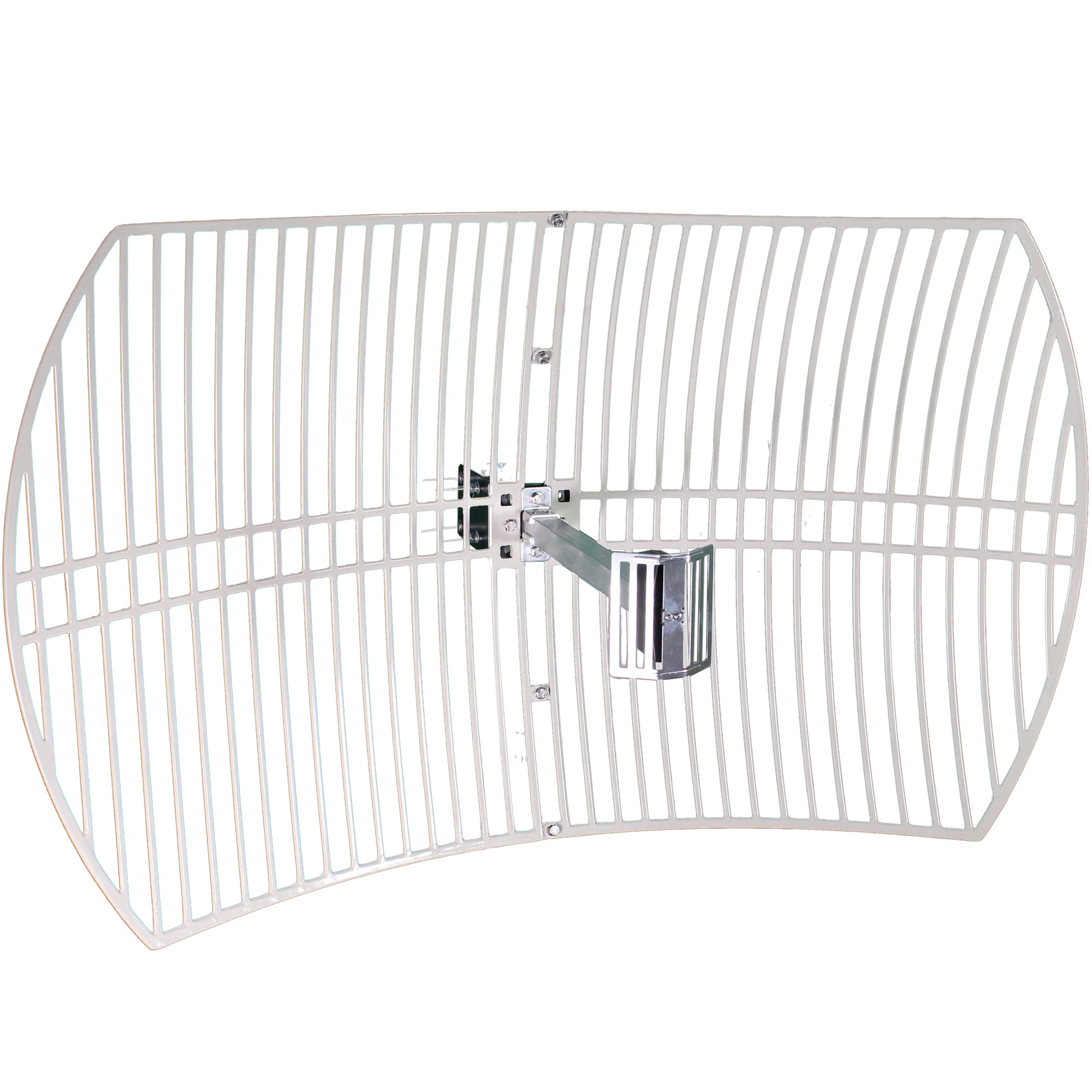

2.4GHz 24dBi Parabolic Grid Antenna High Gain Outdoor WiFi Antenna for Long-Ran
- Model No.：
G190301A
- Frequency Range ：
2400-2500MHz
- Gain：
24dBi
- Cable Length：
45CM 5D-FB Cable
- Connector：
N female
Share：
Product parameters
Download
Electrical Specifications | |
Model No. | G190301A |
Frequency Range | 2400-2500MHz |
Gain | 24dBi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Polarization | Horizontal or Vertical |
Front to Back Ratio | ≥30dB |
Horizontal Half Power Angle | 7.5° |
Vertical Half Power Angle | 11° |
Max Input Power | 50W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector Type | N female |
Cable Type | 5D-FB |
Cable Length | 45CM |
Working Temperature | -40℃~﹢65℃ |
Antenna Weight | 3.5 kg |
Antenna Size | 1000*595*199mm |
Rated Wind Velocity | 140km/h |
Additional Feature | Low Wind Resistance |
2.4GHz 24dBi Parabolic Grid Antenna High Gain Outdoor WiFi Antenna for Long-Ran
