- Name：
2.4G 3DBI rubber antenna
- Model No.：
G15505A
- Frequency Range ：
2400-2483MHz
- Gain：
3DBI
- Cable Length：
/
- Connector：
RP-SMA-J
|
Electrical Specifications |
|
|
Model No. |
G15505A |
|
Frequency Range |
2400-2483MHz |
|
Gain |
3Dbi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
RP-SMA-J |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
11g |
|
Size |
Φ10*(108±2)mm |
|
Material |
TEP |
|
Color |
Black |

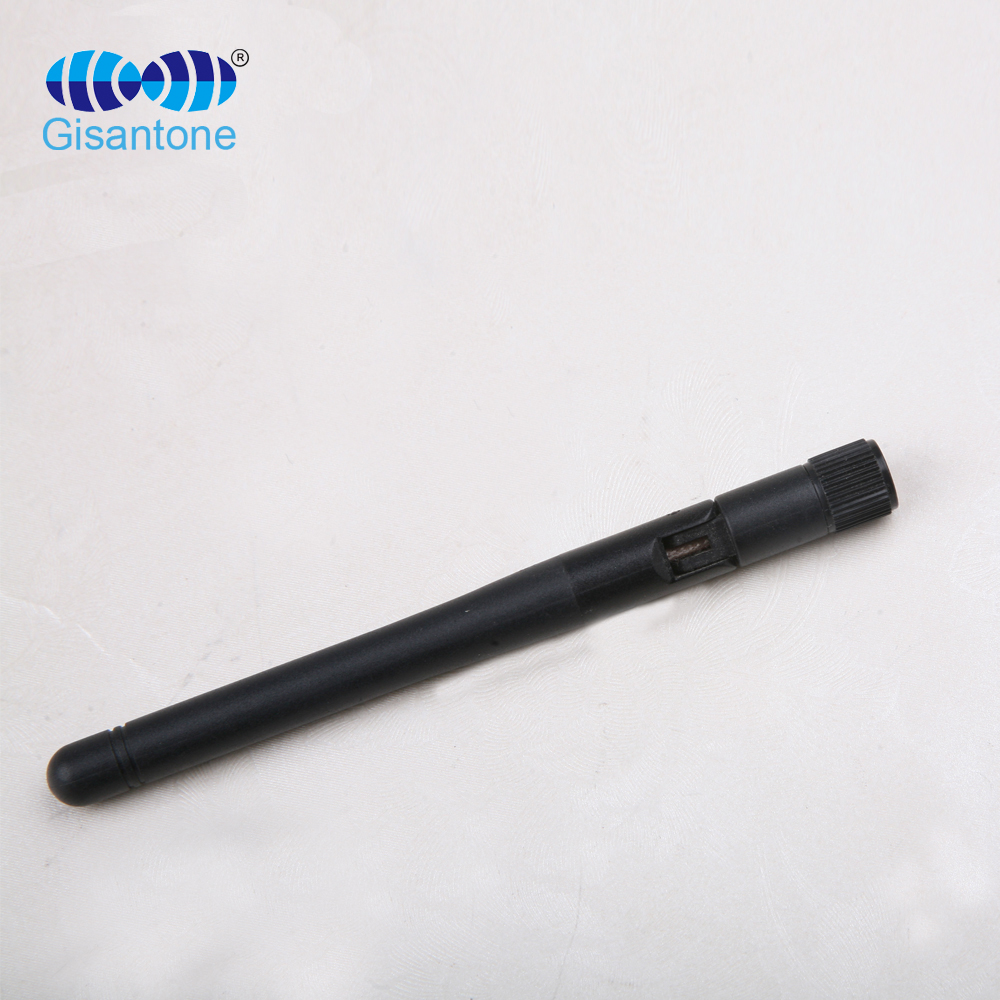

2.4G 3DBI rubber antenna
