5.8G WI-FI/WIMAX Antenna
- Name：
20dBi MIMO Panel Antenna
- Model No.：
G17014A
- Frequency Range ：
5150-5850MHz
- Gain：
20dBi
- Cable Length：
30cm
- Connector：
SMA male pin
Share：
Product parameters
Download
Electrical Specifications | |
Model No. | G17014A |
Frequency Range | 5150-5850MHz |
Gain | 20dBi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Polarization | Dual (±45°) |
Horizontal Beamwidth | 15° (Typical) |
Vertical Beamwidth | 15° (Typical) |
Max Input Power | 50W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector Type | SMA Male (Pin) |
Cable Type | RG316 |
Working Temperature | -40℃ ~ +70℃ |

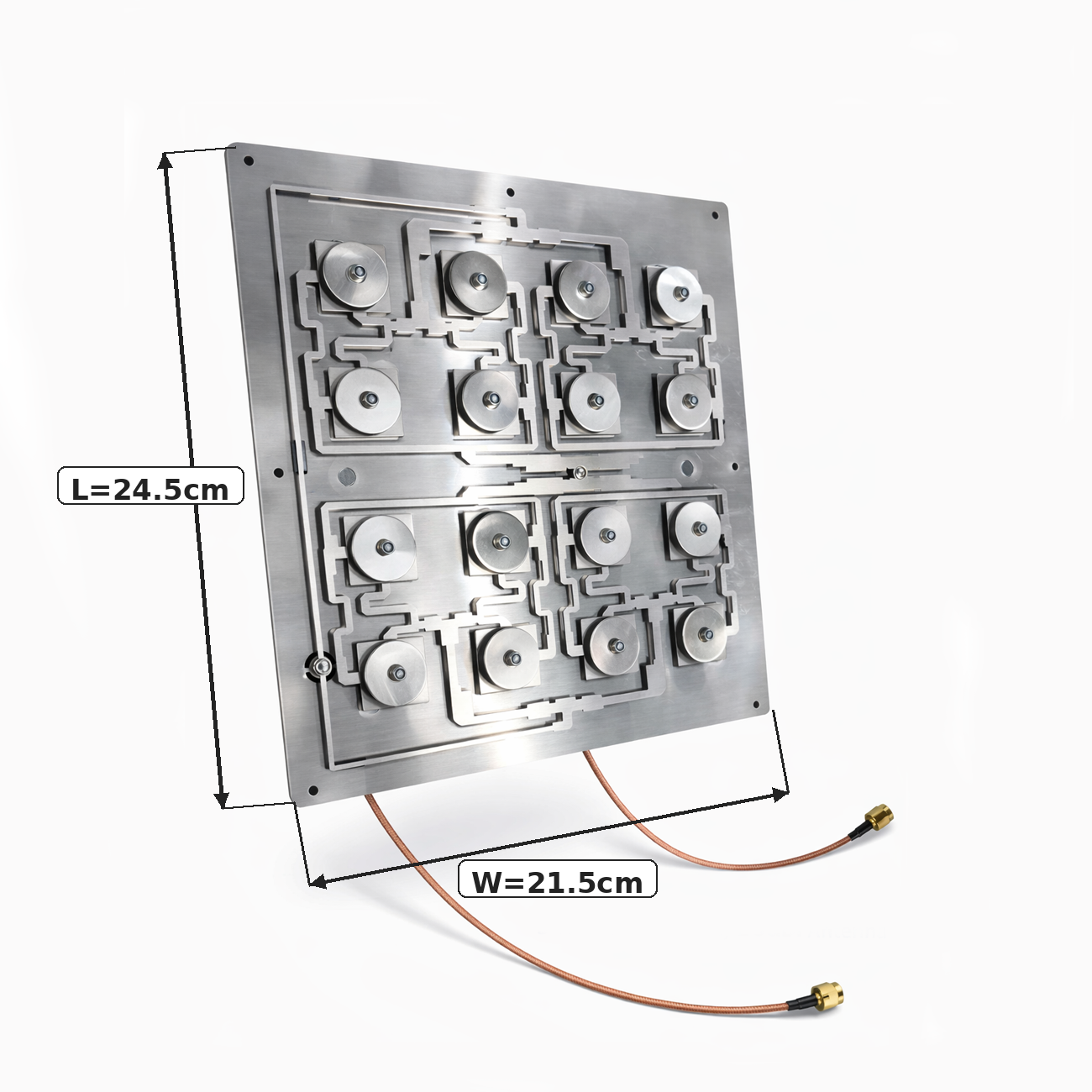

Size | L=245mm × W=215mm |
Antenna cover material | Aluminum |
Color | Silver |

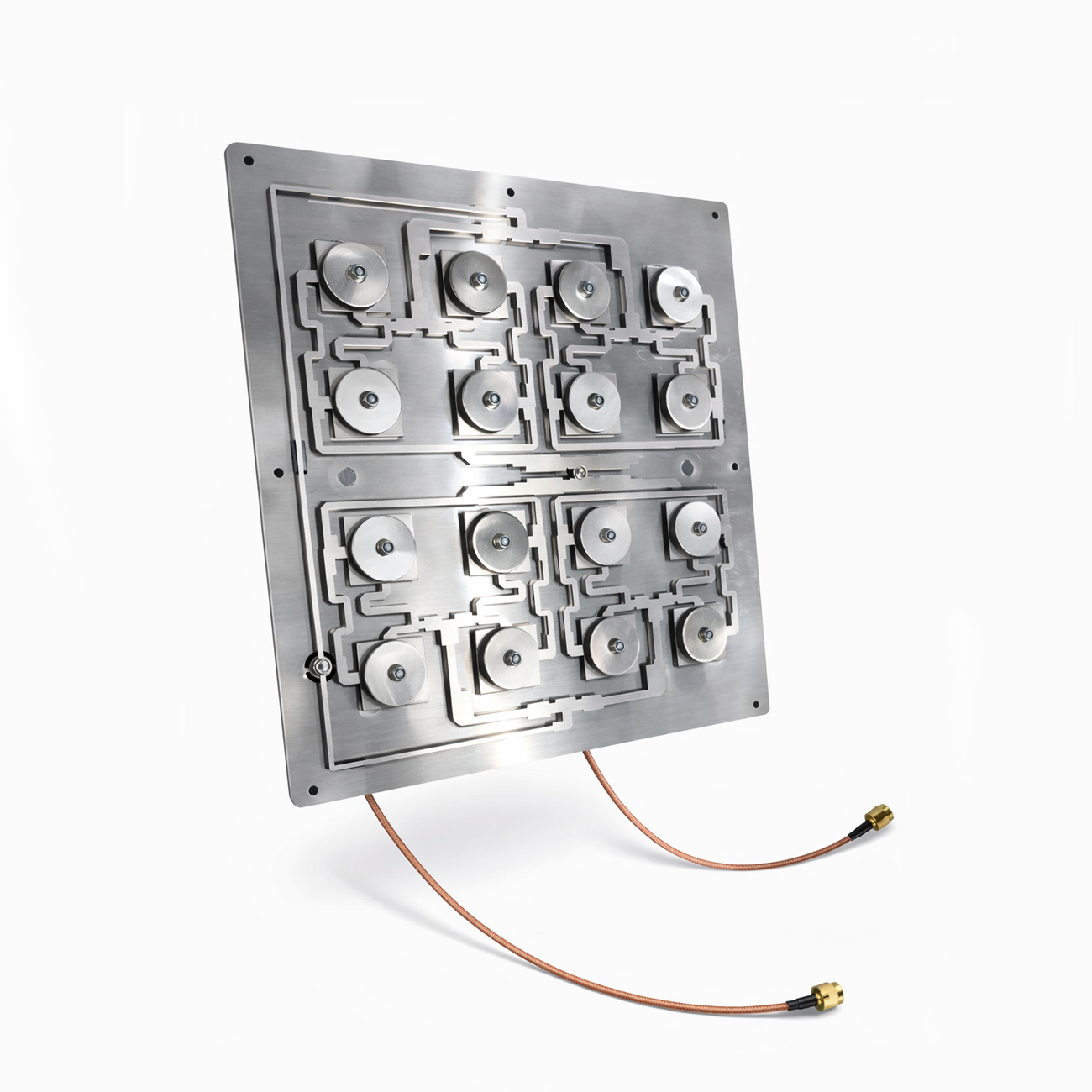

20dBi MIMO Panel Antenna
