- Name：

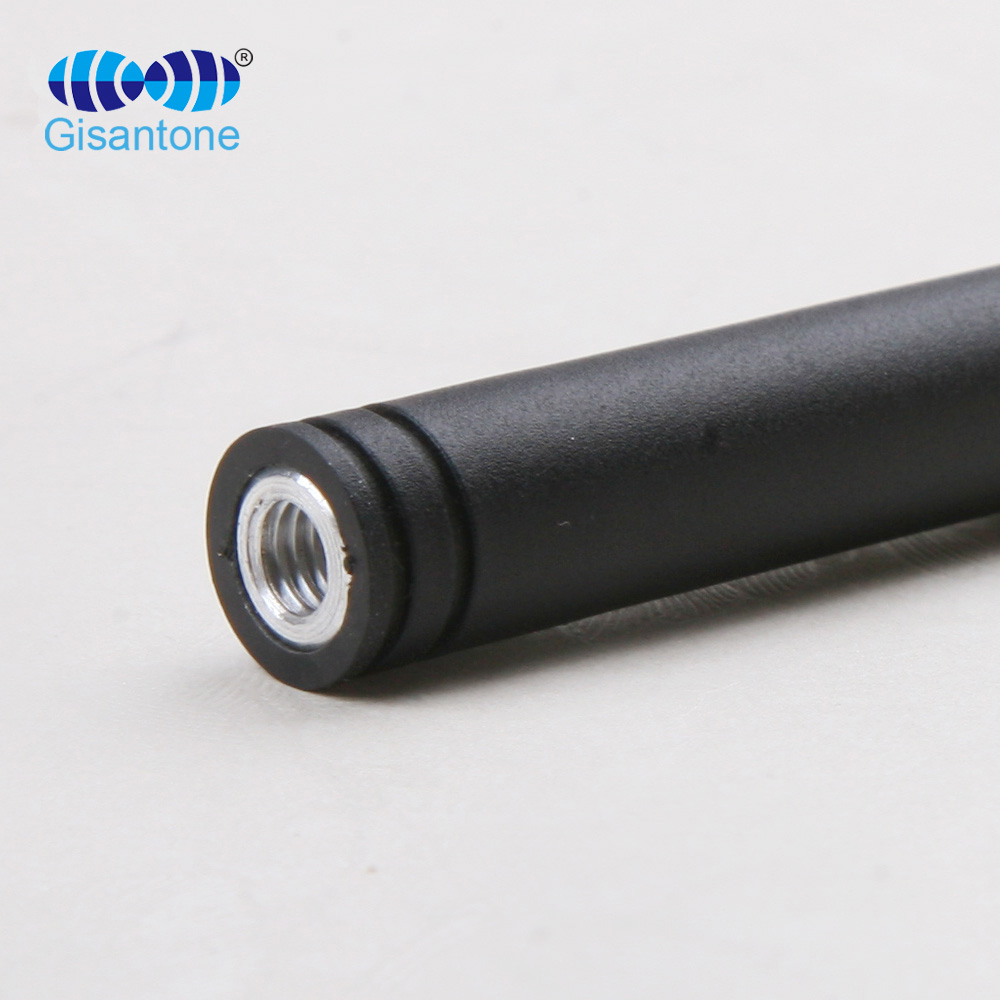

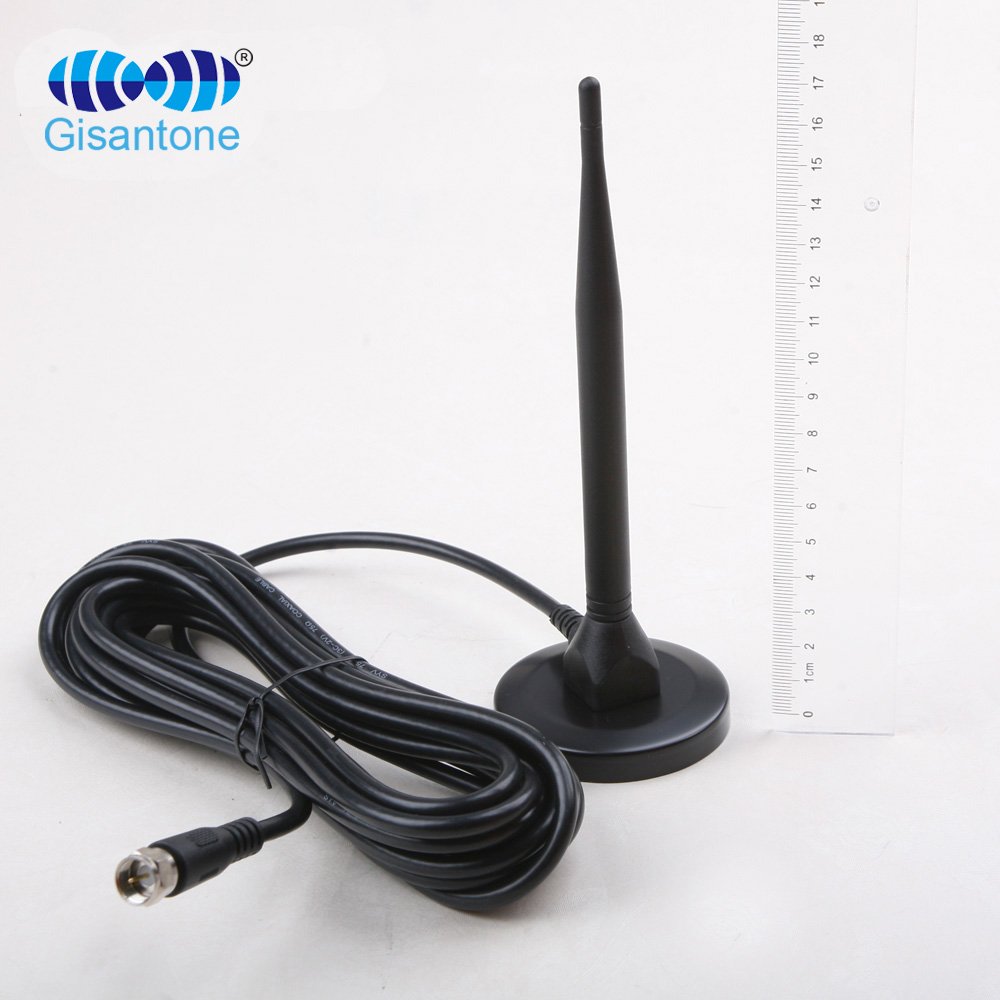

474-862MHz 3DBI Magnetic TV antenna
- Model No.：
G15301A
- Frequency Range ：
474-862MHz
- Gain：
3DBI
- Cable Length：
5M 75-3 cable

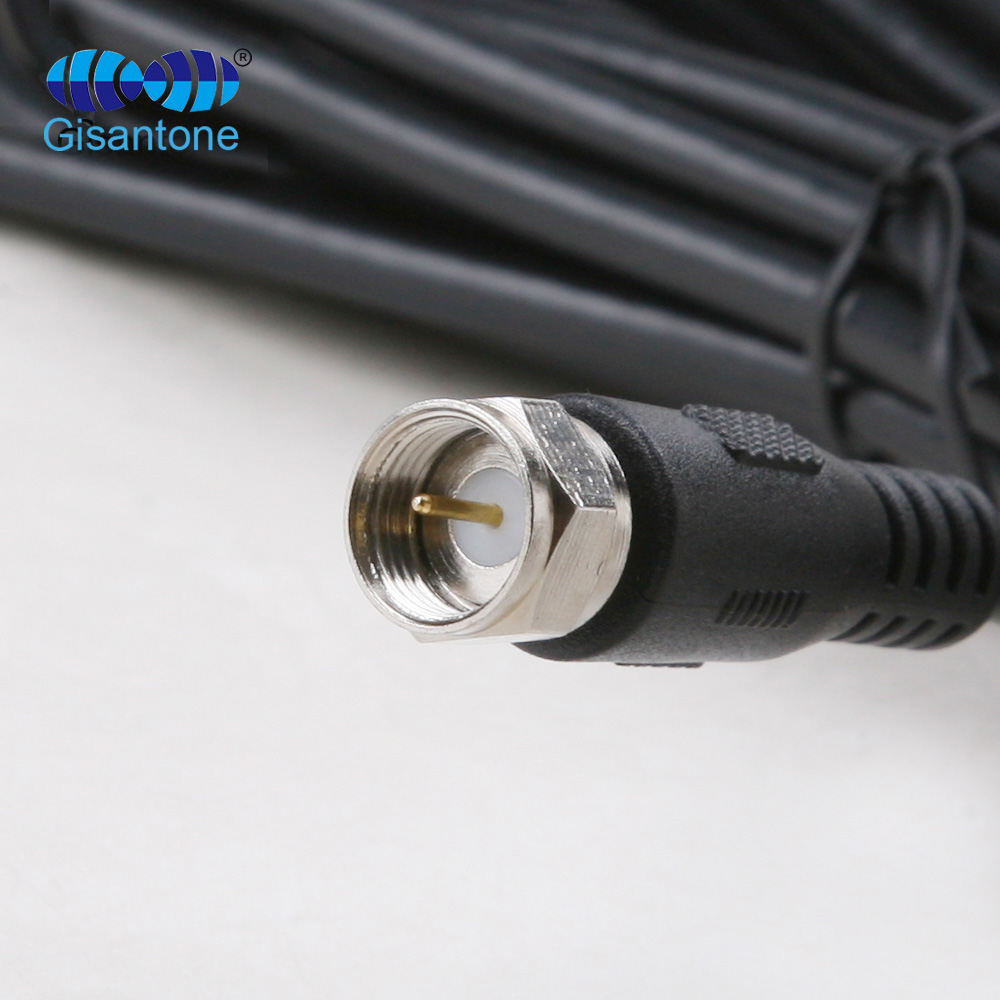

- Connector：
F male
|
Electrical Specifications |
|
|
Model No. |
G15301A |
|
Frequency Range |
474-862MHz |
|
Gain |
3dBi |
|
VSWR |
≤2.5 |
|
Input Impedance |
75Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
70° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Connector Type |
F-J |
|
Cable Type |
SYV-75-3 |
|
Cable Length |
5m |
|
Antenna Weight |
270g |
|
Size |
Φ62x(175±2)mm |
|
Mounting |

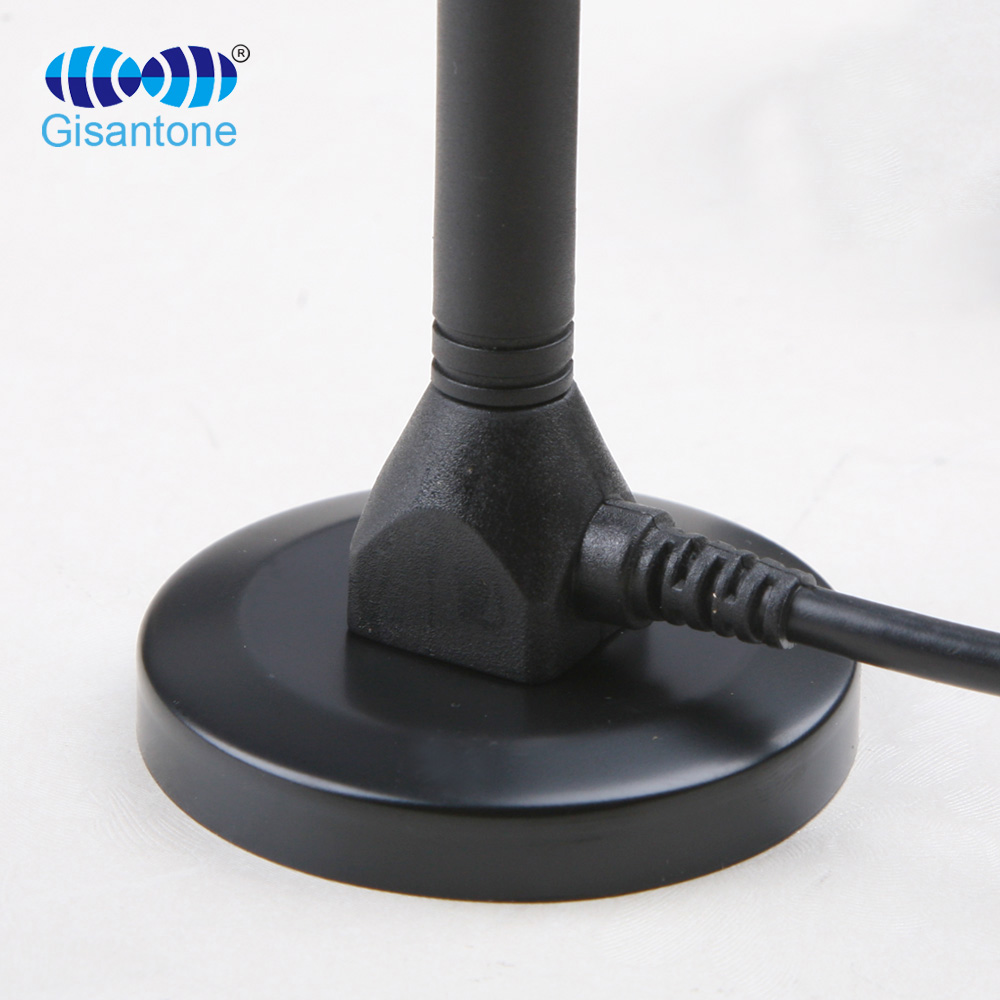

Magnetic Base |
|
Color |
Black |
|
Package Size |
/ |
|
Weight |
/ |
474-862MHz 3DBI Magnetic TV antenna
