- Name：

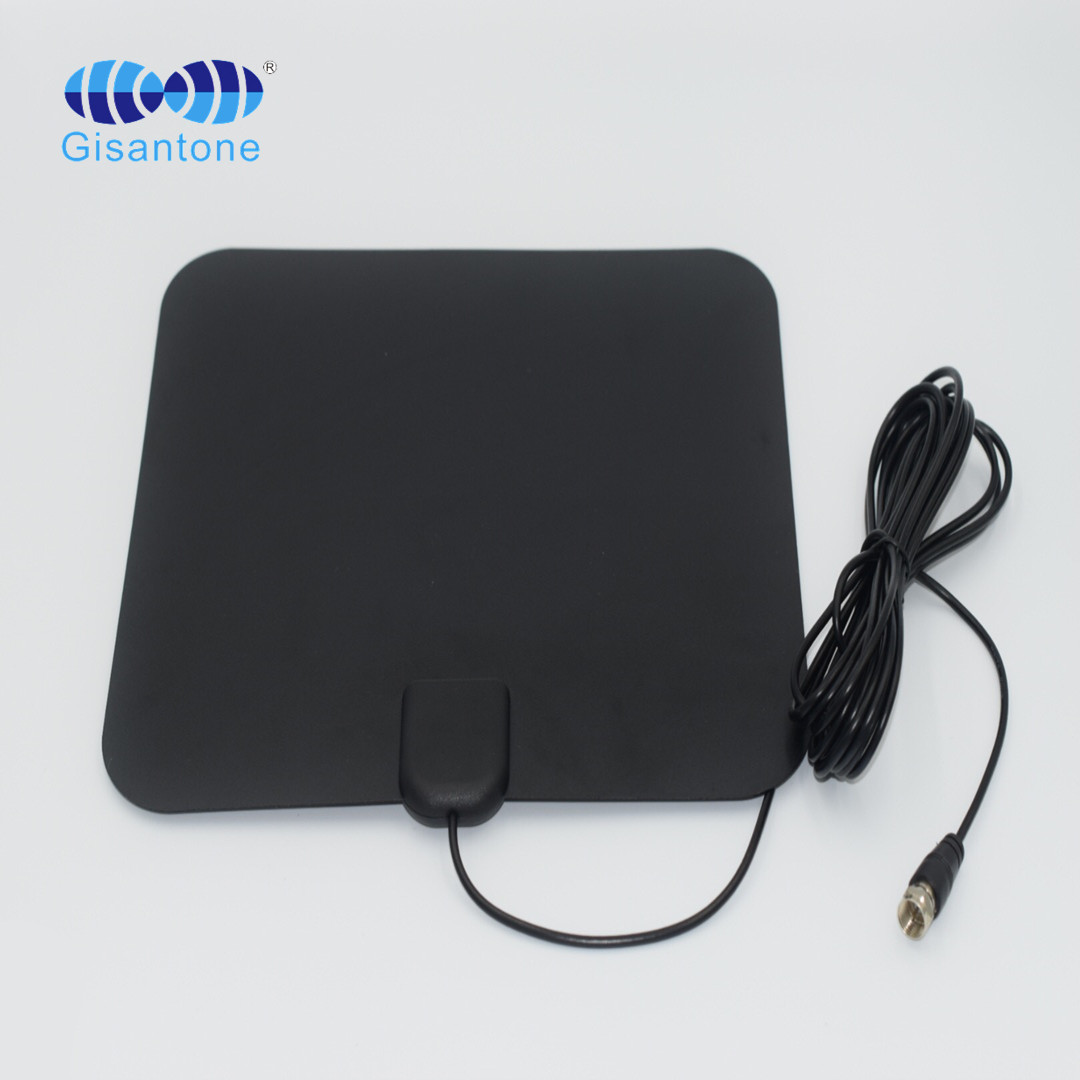

174-855MHz 30DBI TV antenna
- Model No.：
G19020A
- Frequency Range ：
174-230/447-855MHz
- Gain：
30DBI
- Cable Length：
3M
- Connector：
IEC/USB/F female
|
Electrical Specifications |
|
|
Model No. |
G19020A |
|
Frequency Range |
174-230/447-855MHz |
|
Gain |
30Dbi |
|
VSWR |
≤2.0 |
|
Noise Factor |
≤1.5dB |
|
Power |
DC5V |
|
Input Impedance |
75Ω |
|
Polarization |
Vertical |
|
Max Input Power |
30W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
IEC/USB/F female |
|
Working Temperature |
-40℃~﹢65℃ |
|
Cable Type |
RG174 |
|
Cable Length |
3M |
|
Fixed Method |
3M glue |
|
Antenna Weight |
0.18kg |
|
Size |
225*250mm |
|
Color |
Black |
174-855MHz 30DBI TV antenna
