- Name：

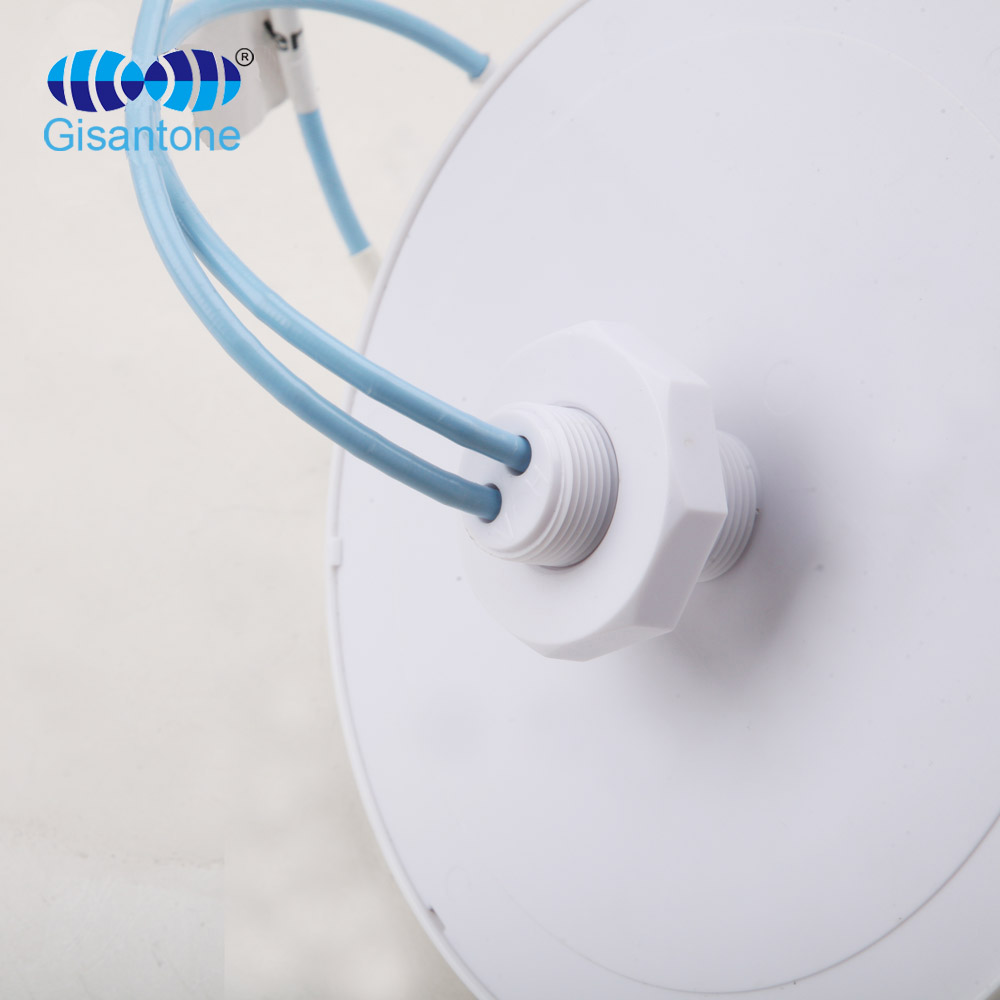

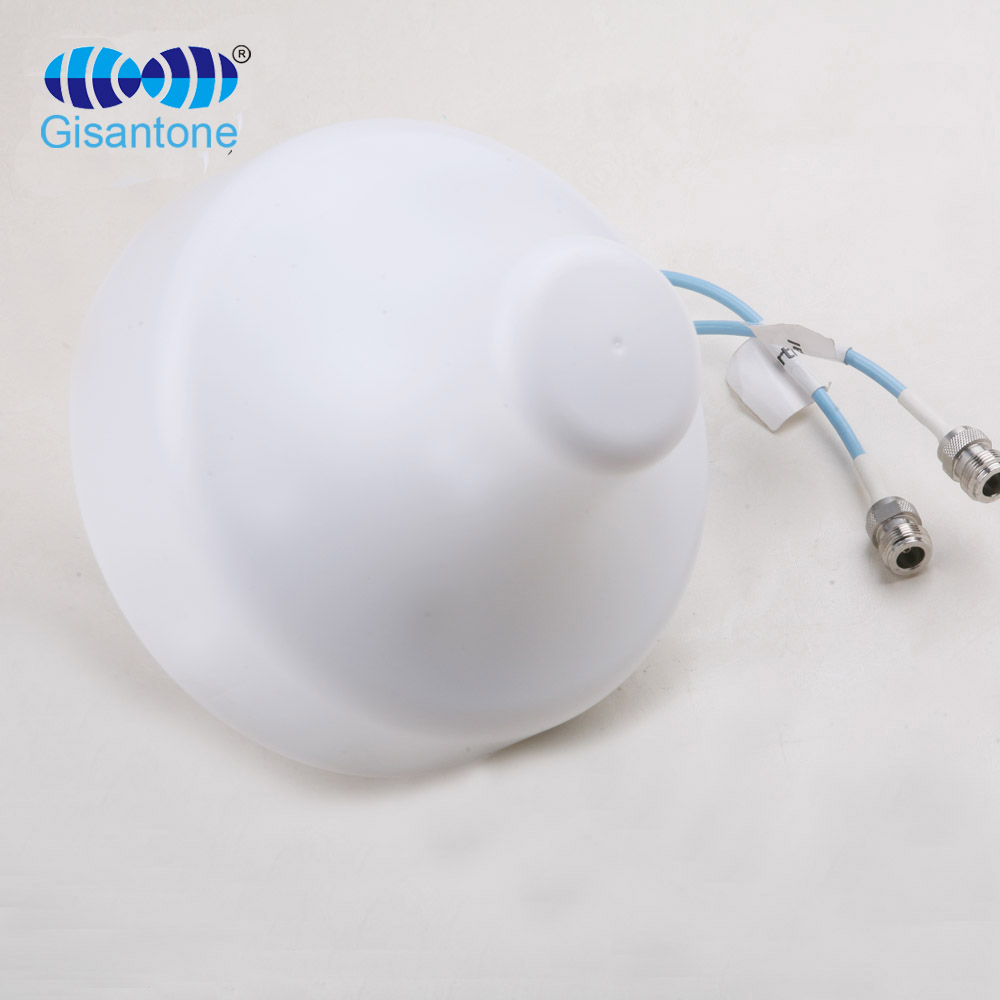

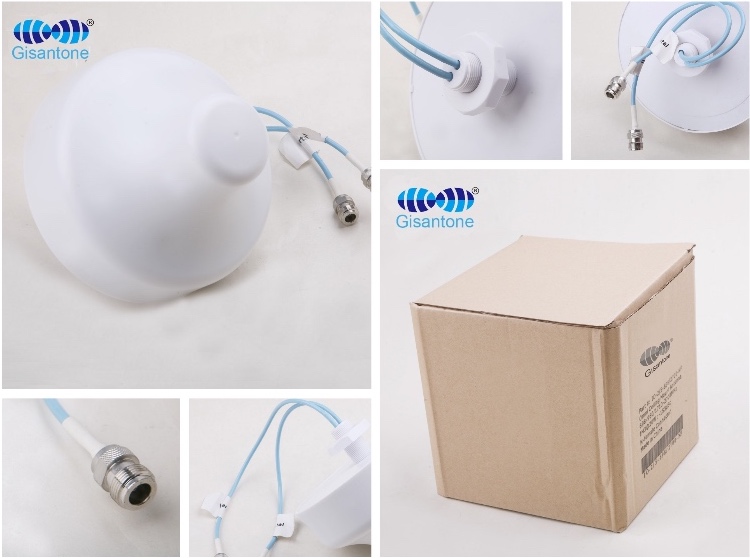

806/2700MHz MIMO Ceiling Antenna
- Model No.：
G15617A
- Frequency Range ：
806-960/1710-2700MHz
- Gain：
3/5DBI
- Cable Length：
2*35CM RG141
- Connector：
2*N-female
|
Electrical Specifications |
||
|
Model NO. |
G15617A |
|
|
Frequency Range |
806-960/1710-2700MHz 1710-2700MHz |
|
|
Gain |
3Dbi |
5Dbi |
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical/Horizontal |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
85° |
|
|
PIMD 3th (@2*33dBm) |
≤-107dBm |
|
|
Max Input Power |
100W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|

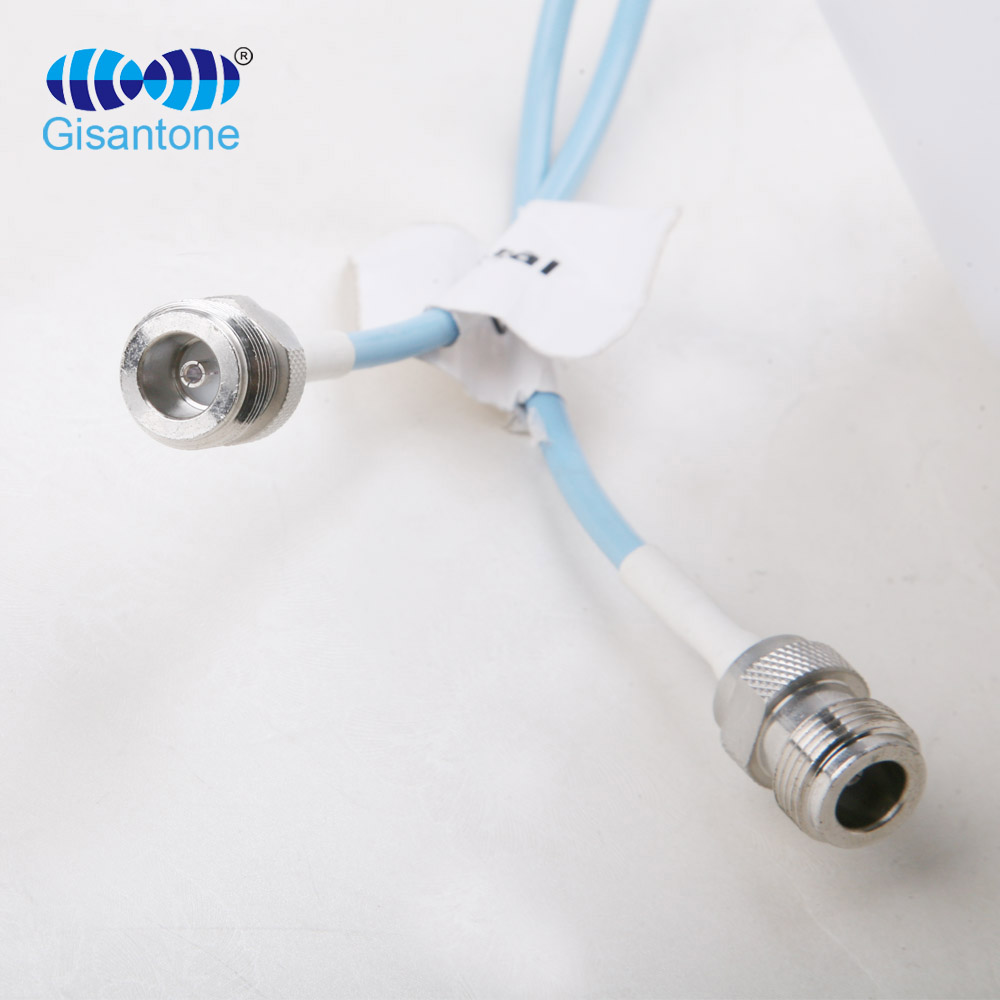

Connector Type |
2*N-K |
|
|
Cable Type |
2*RG141 blue |
|
|
Cable Length |
35CM |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
380g |
|
|
Size |
Φ180x130mm |
|
|
Antenna Cover Material |
ABS |
|
|
Color |
White |
|
|
Package Size |
/ |
|
|
Weight |
/ |
|
806/2700MHz MIMO Ceiling Antenna
