LTE 4G Yagi Antenna
- Name：

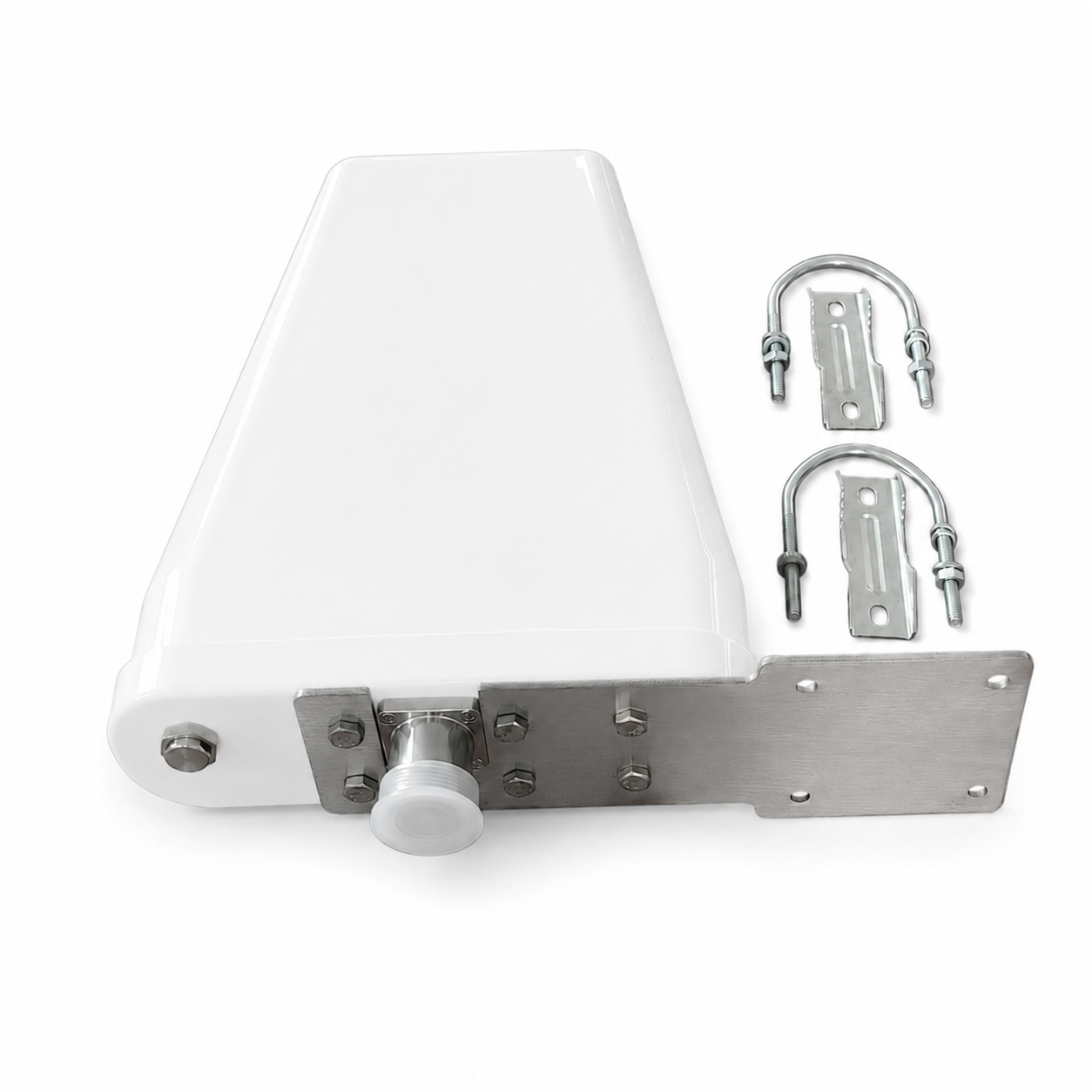

800-2200MHz 1000W High Power 8.5dBi LPDA Antenna
- Model No.：
G13110A
- Frequency Range ：
800-2000MHz ,custom frequency
- Gain：
8.5dBi
- Connector：
DIN Female
Share：
Product parameters
Download
Electrical Specifications | |
Model No. | G13110A |
Frequency Range | 800-2200MHz |
Gain | 8.5dBi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Polarization | Vertical |
Horizontal Half Power Angle | 65±10° |
Vertical Half Power Angle | 65±10° |
Max Input Power | 1000W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector Type | DIN Female |
Working Temperature | -40℃~﹢65℃ |
Antenna Weight | ≈1.2g |
Size | 290*210*65mm |
Pole Diameter | Φ38~55mm |
Rated Wind Velocity | 210km/h |
Antenna Cover Material | ABS |
Color | White |
800-2200MHz 1000W High Power 8.5dBi LPDA Antenna
