- Name：

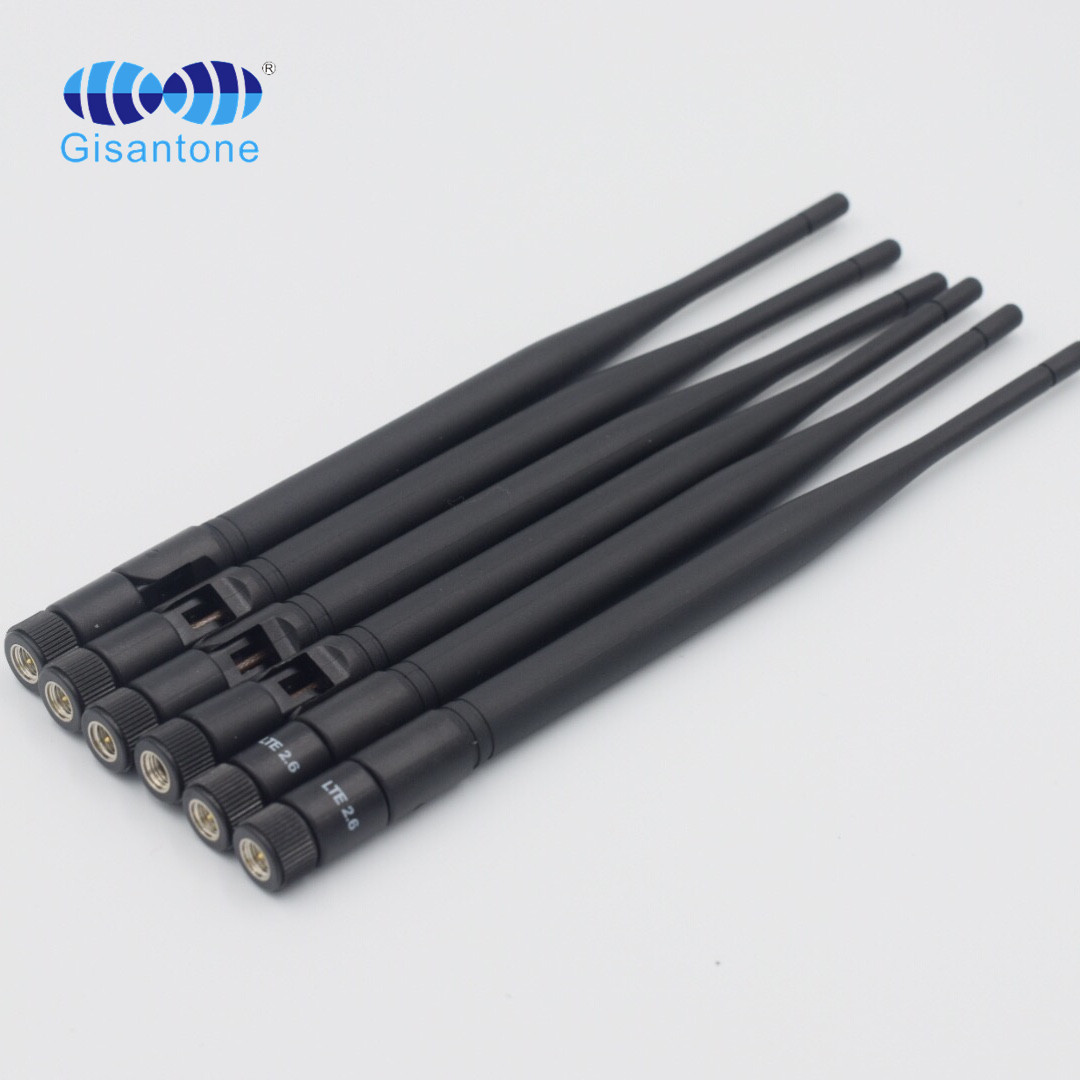

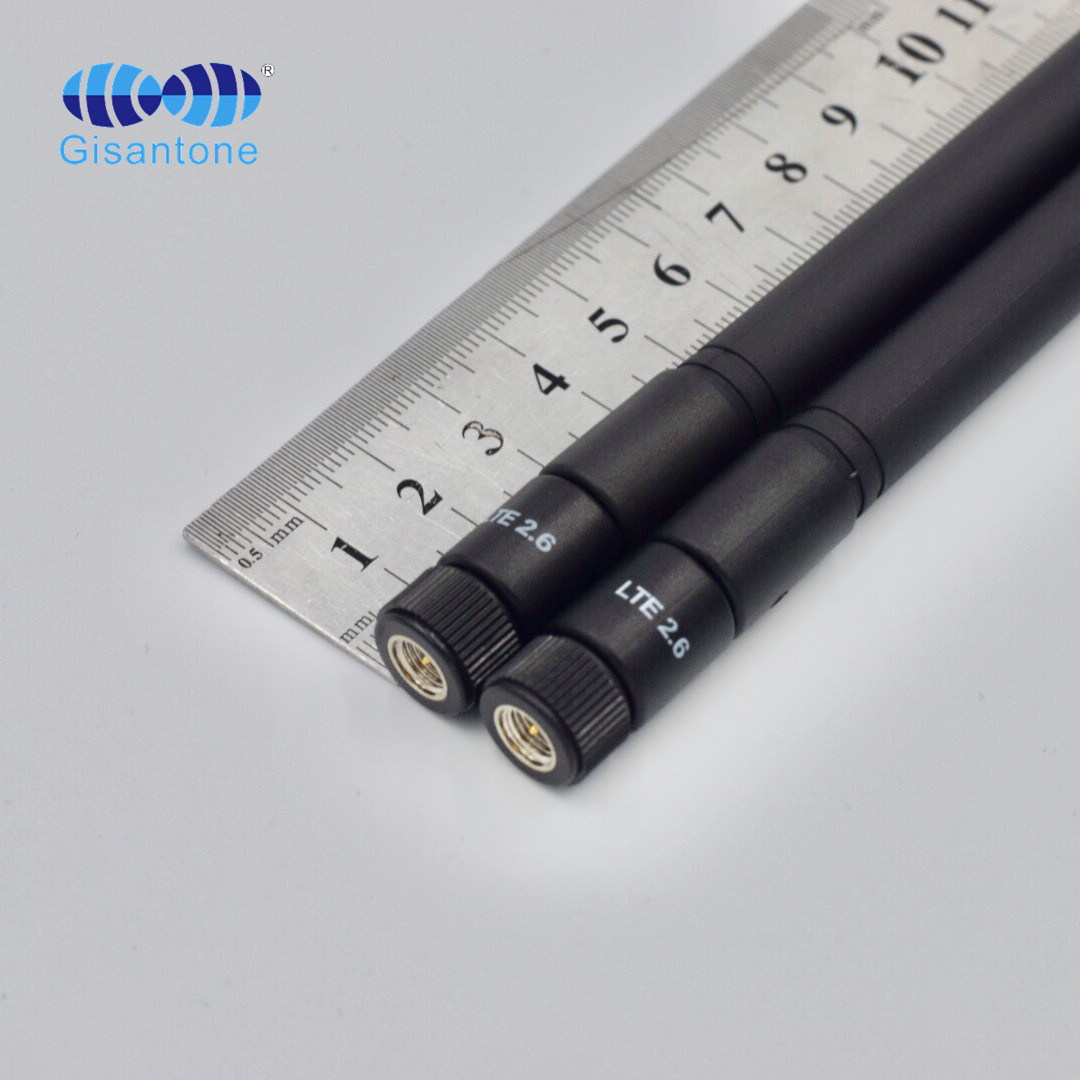

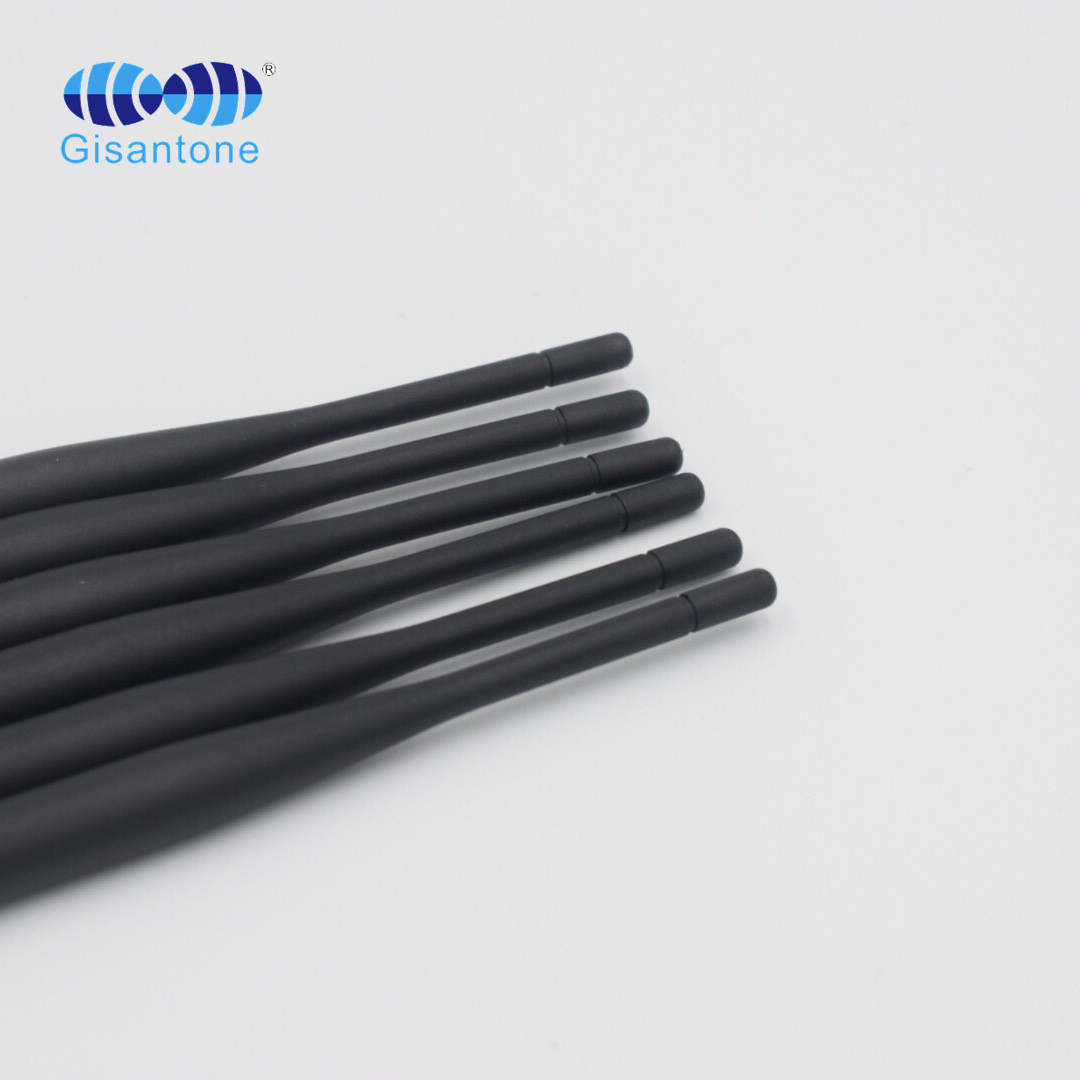

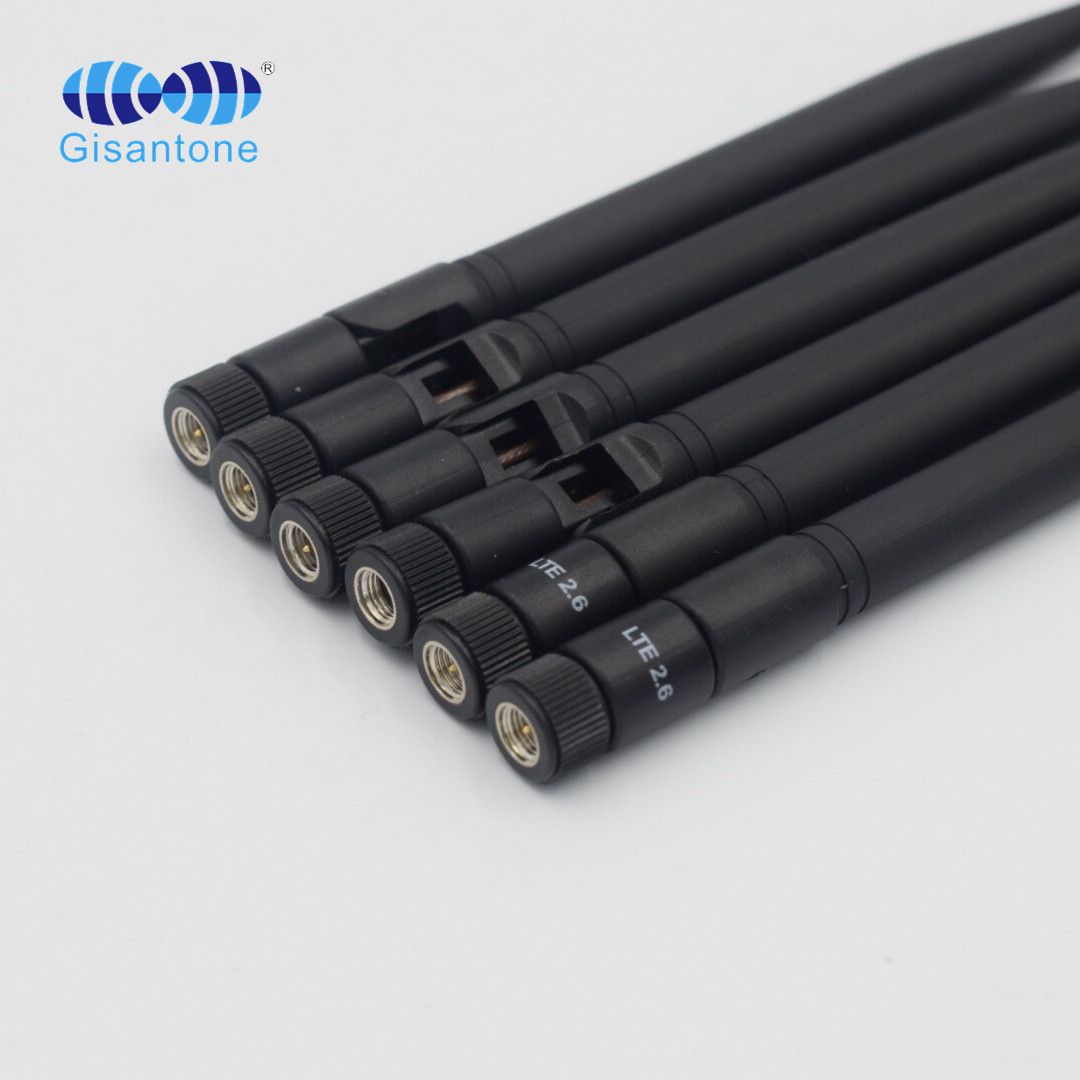

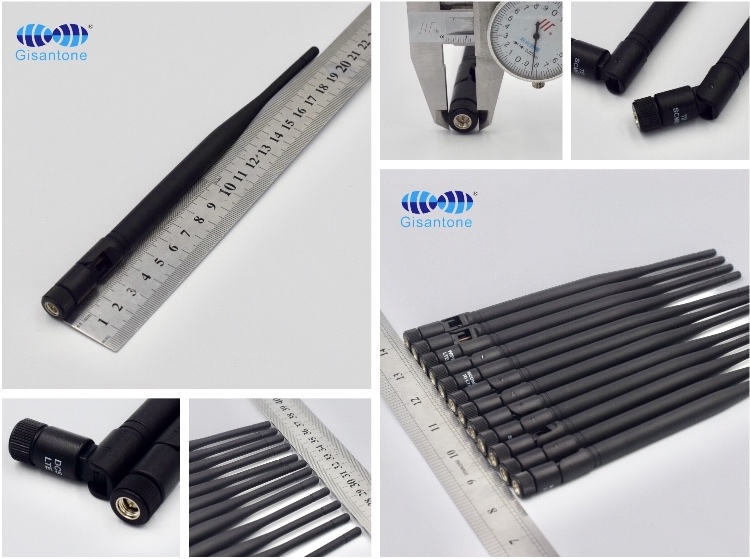

2555-2655MHz 3DBI whip antenna
- Model No.：
G15512G
- Frequency Range ：
2555-2655MHz
- Gain：
3DBI
- Cable Length：
/
- Connector：
SMA male
|
Electrical Specifications |
|
|
Model No. |
G15512G |
|
Frequency Range |
2555-2655MHz |
|
Gain |
3Dbi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
30W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
SMA-J |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
15g |
|
Size |
Φ13*(205±1)mm |
|
Color |
Black |
|
Package Size |
43*27*24CM |
|
Package Weight |
8KG |
2555-2655MHz 3DBI whip antenna
