433MHz Antenna
- Name：

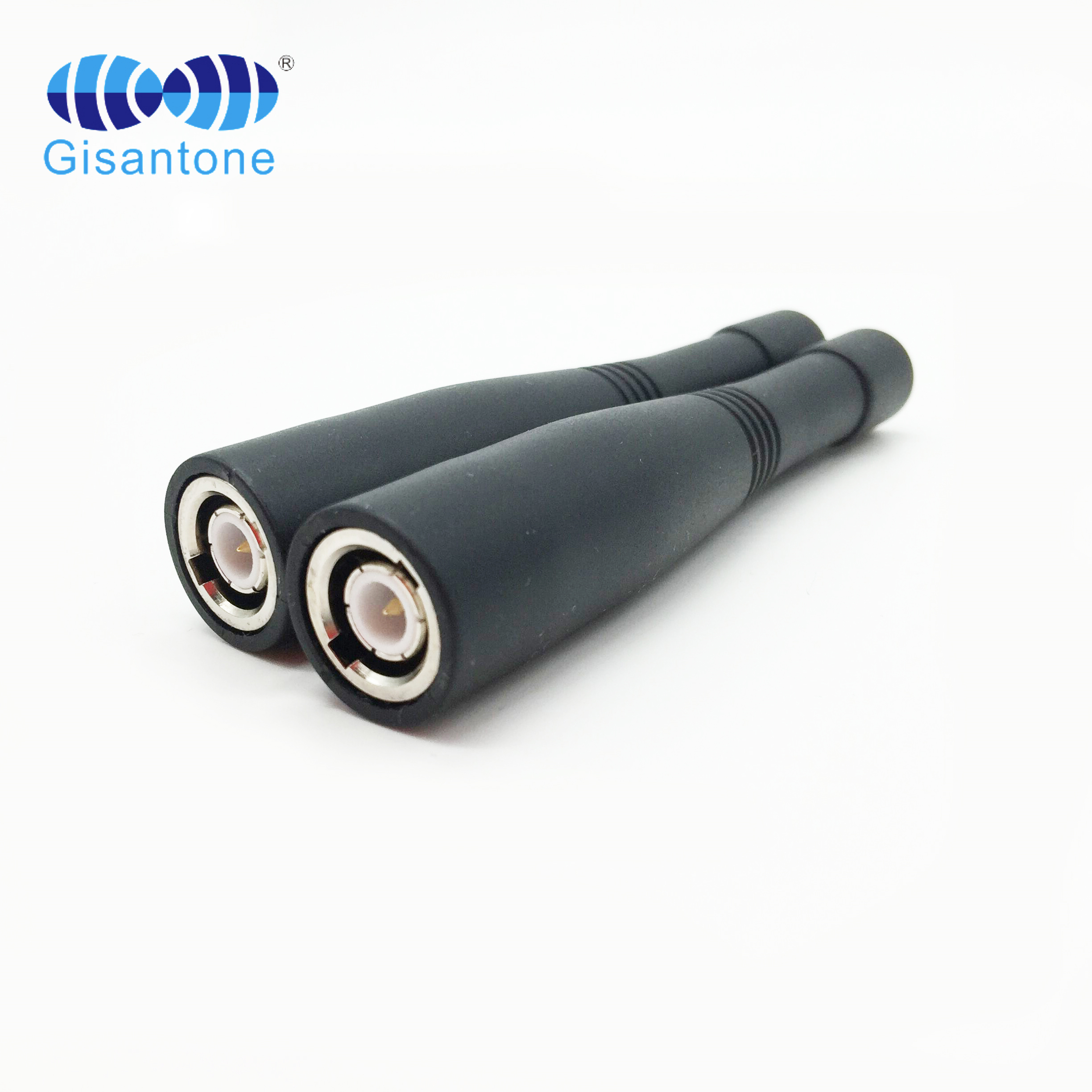

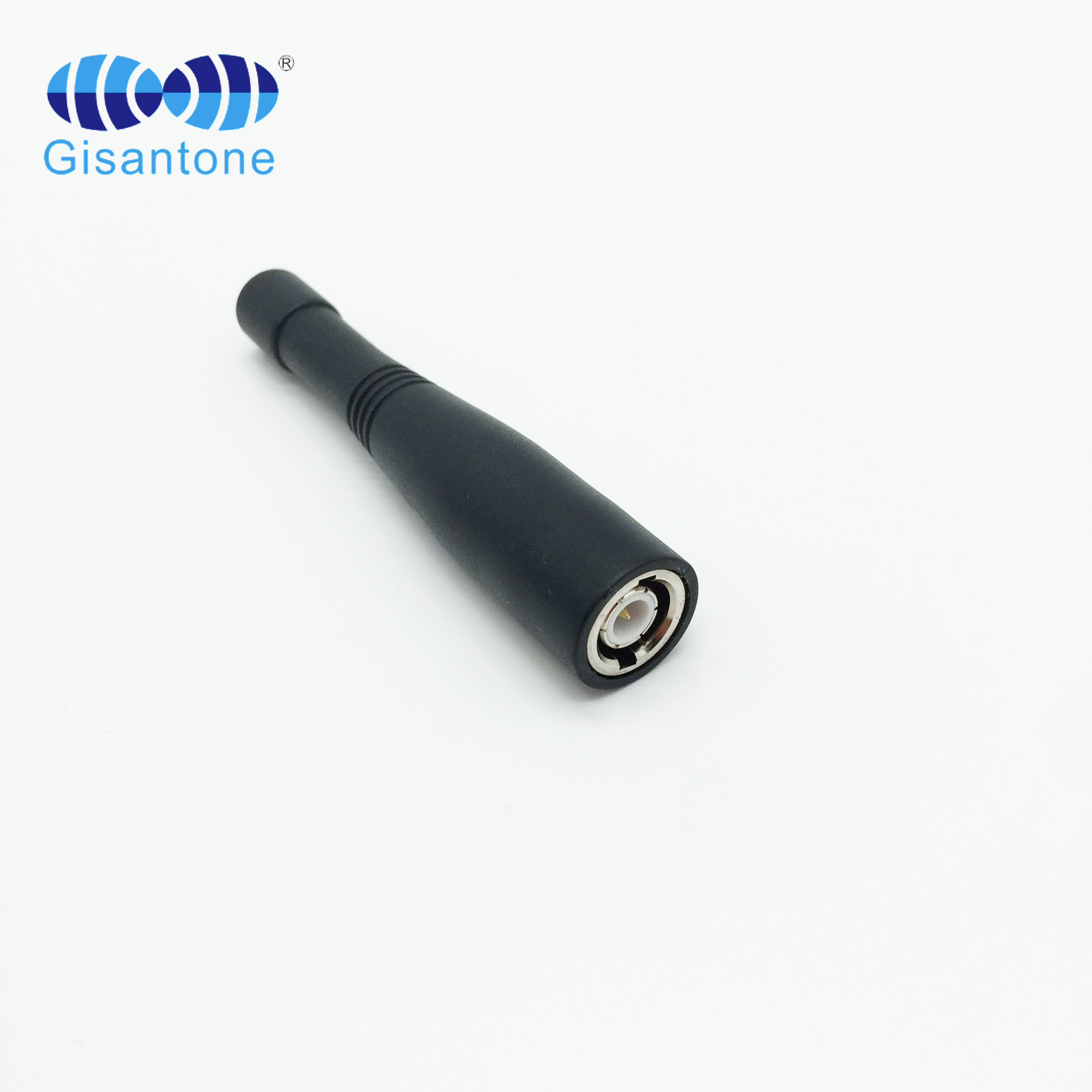

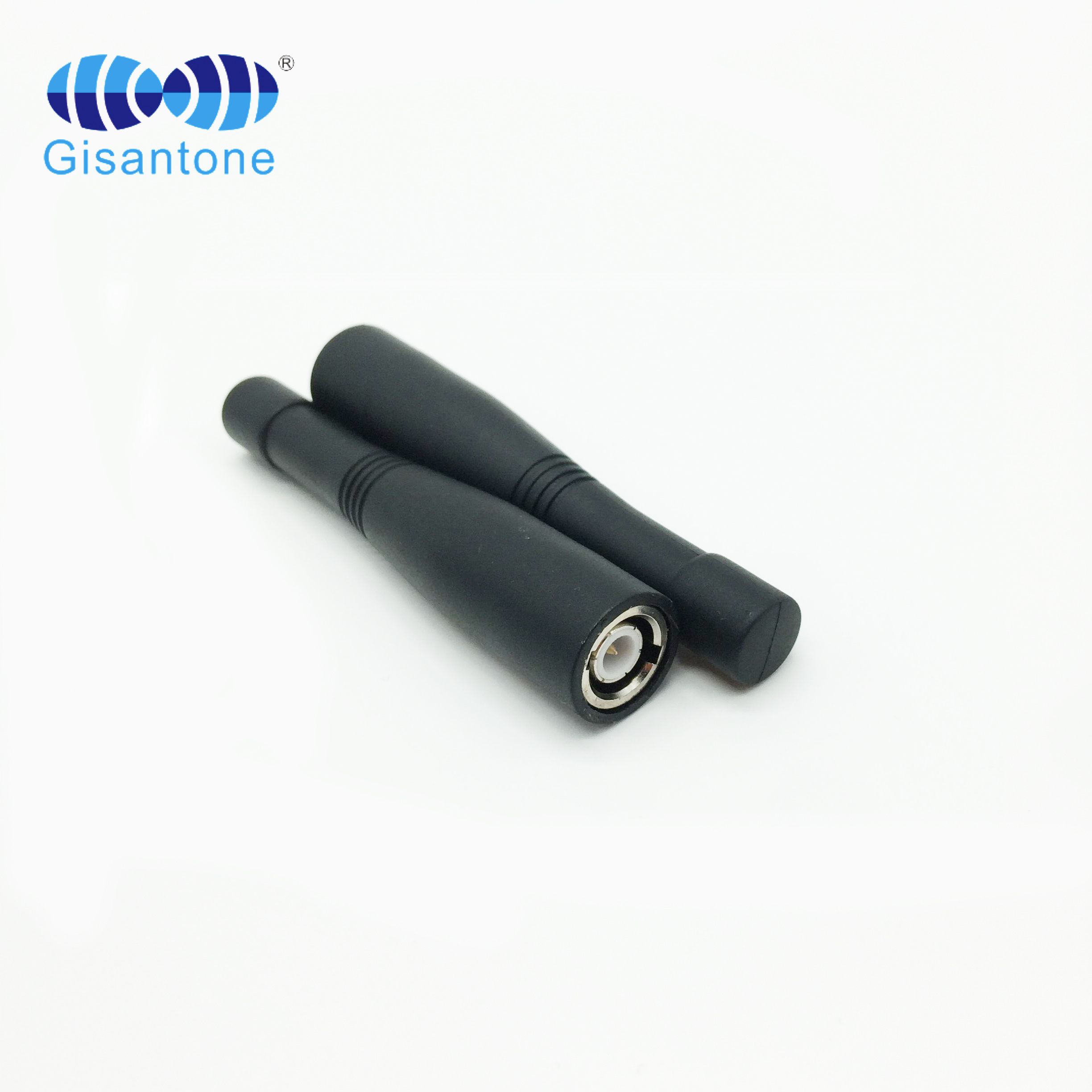

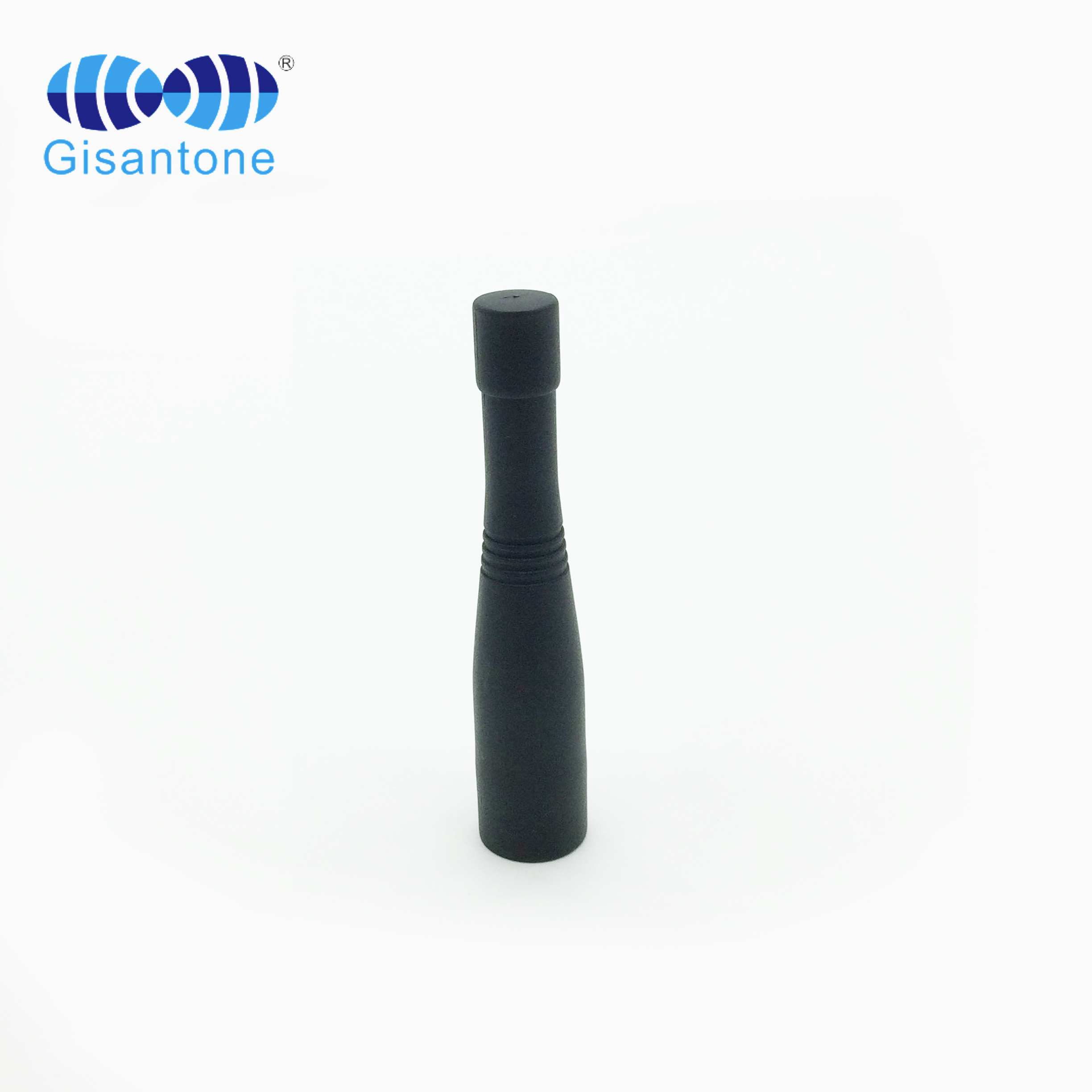

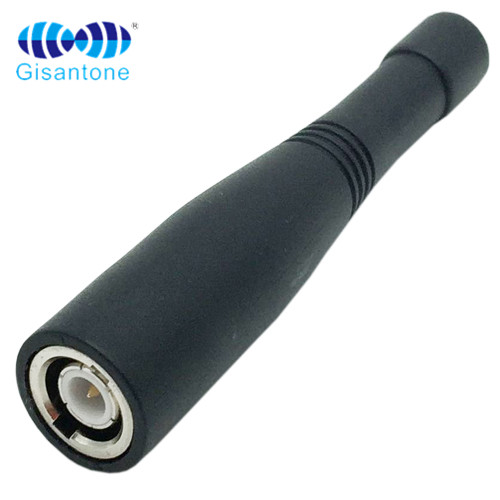

433MHz 2DBi Rubber Antenna
- Model No.：
G15515A
- Frequency Range ：
433MHz
- Gain：
2DBi
- Connector：
BNC male
Share：
Product parameters
Download
|
Electrical Specifications |
|
|
Model No. |
G15515A |
|
Frequency Range |
433±3MHz |
|
Gain |
2Dbi |
|
VSWR |
≤3.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
20W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
BNC male |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
10g |
|
Size |
Φ17*(89±3)mm |
|
Color |
Black |
433MHz 2DBi Rubber Antenna
