- Name：

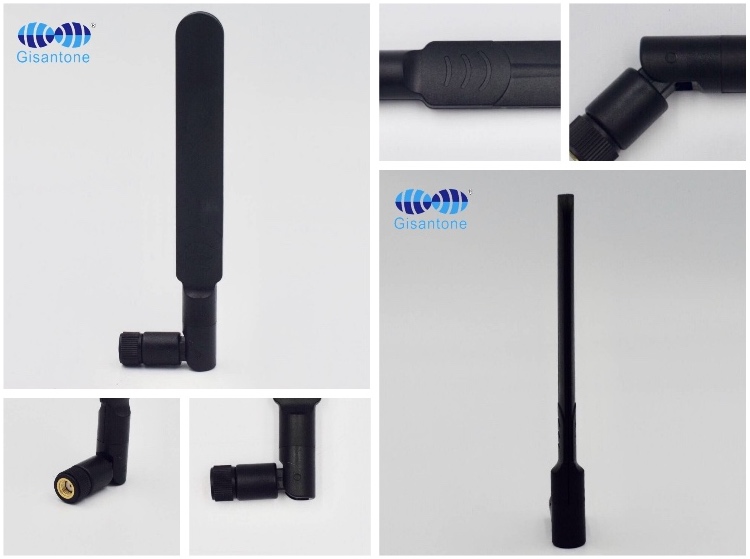

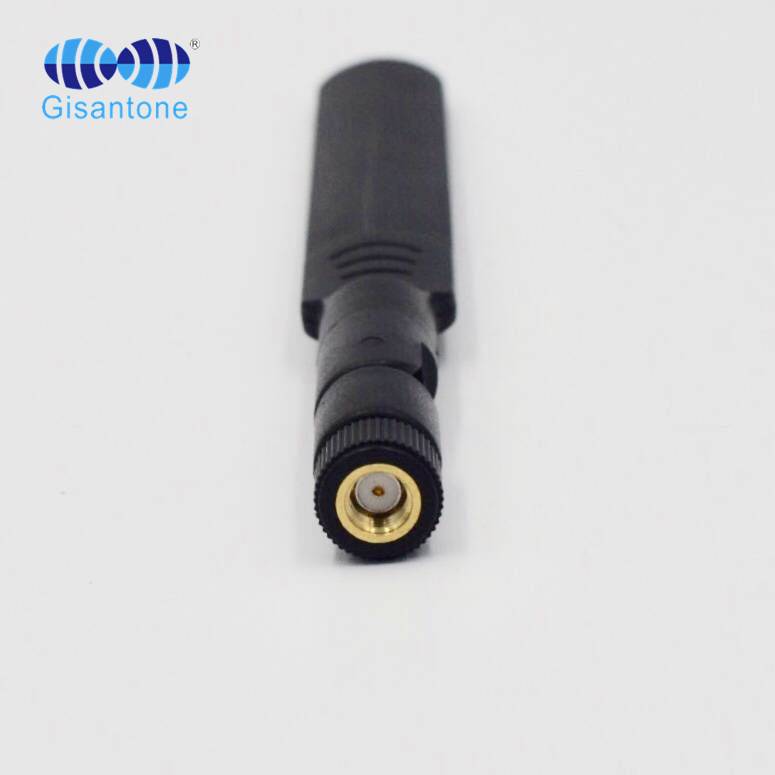

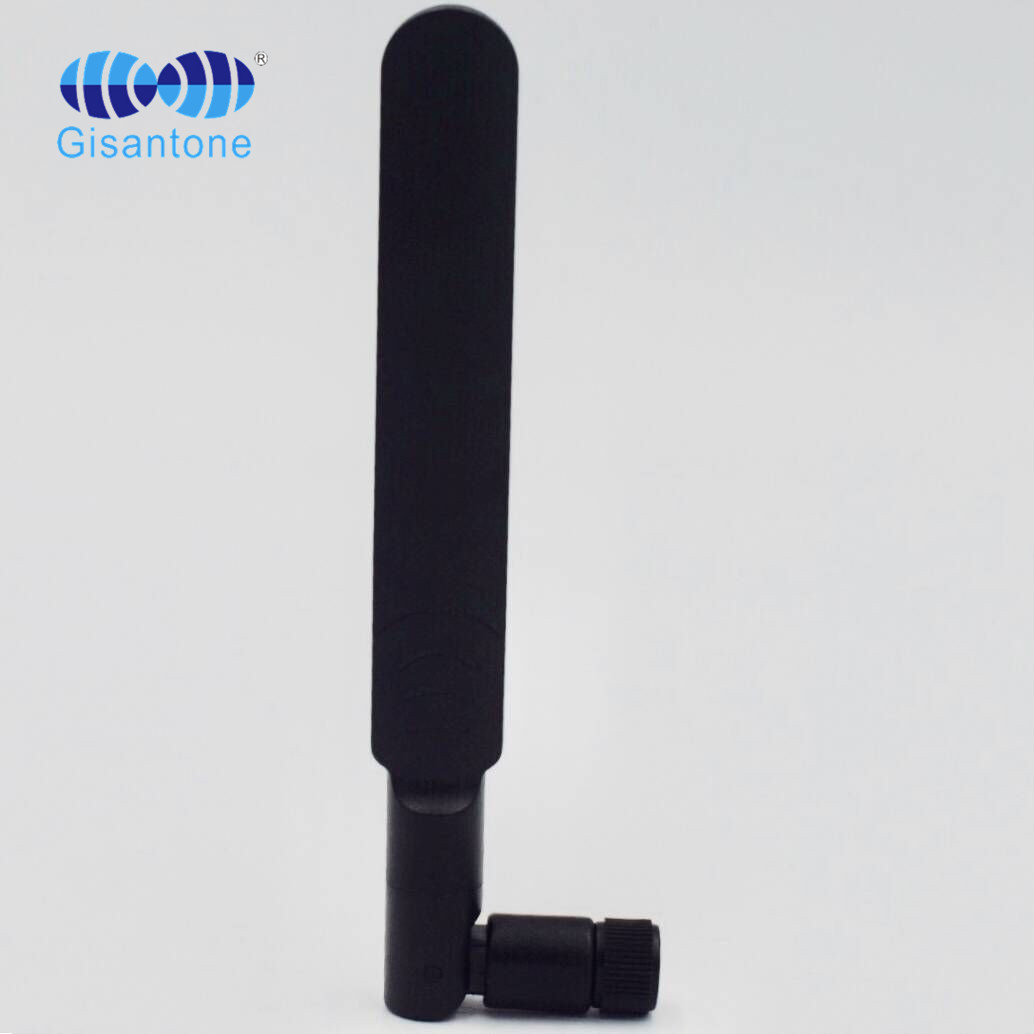

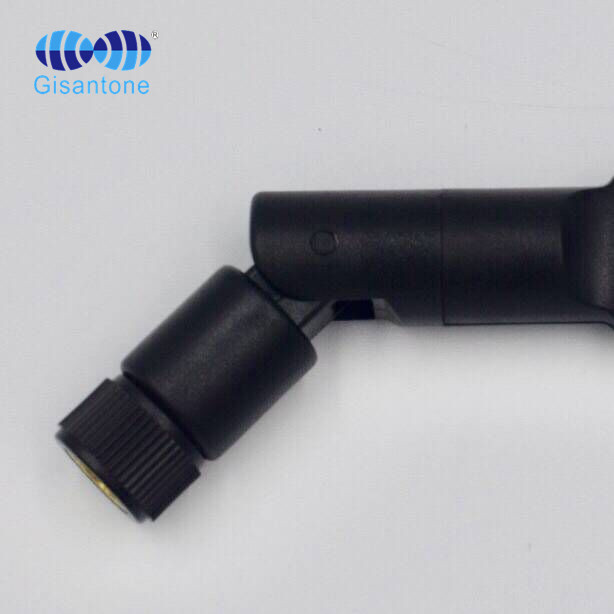

2.4/5.8GHz 4/5DBI Whip antenna
- Model No.：
G15510C
- Frequency Range ：
2400-2483/5150-5850MHz
- Gain：
4/5DBI
- Cable Length：
/
- Connector：
SMA male
|
Electrical Specifications |
|
|
Model No. |
G15510C |
|
Frequency Range |
2400-2483/5150-5250/5725-5850MHz |
|
Gain |
4/5Dbi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
SMA-J |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
18g |
|
Size |
Φ13*(160±1)mm |
|
Color |
Black |
2.4/5.8GHz 4/5DBI Whip antenna
