- Name：

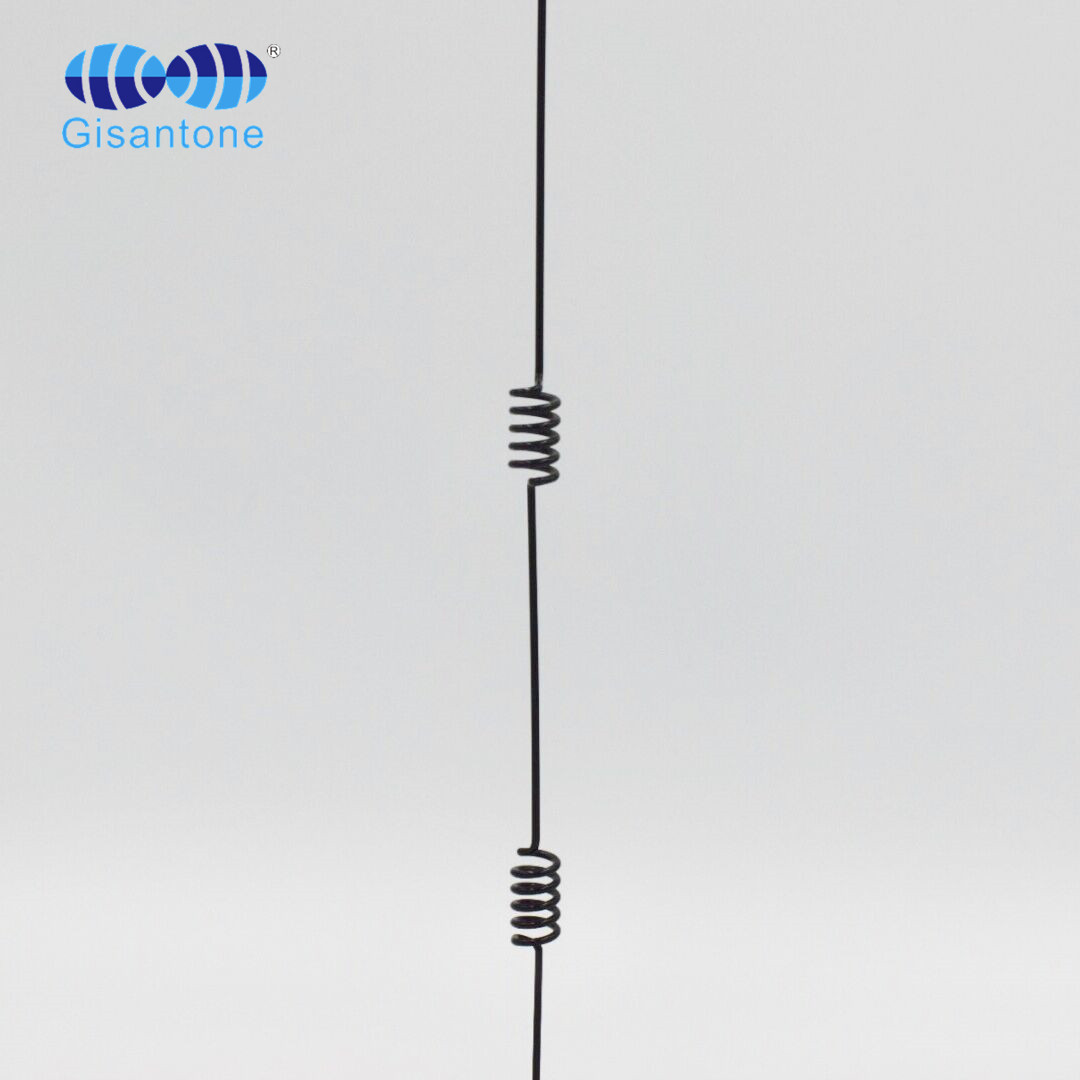

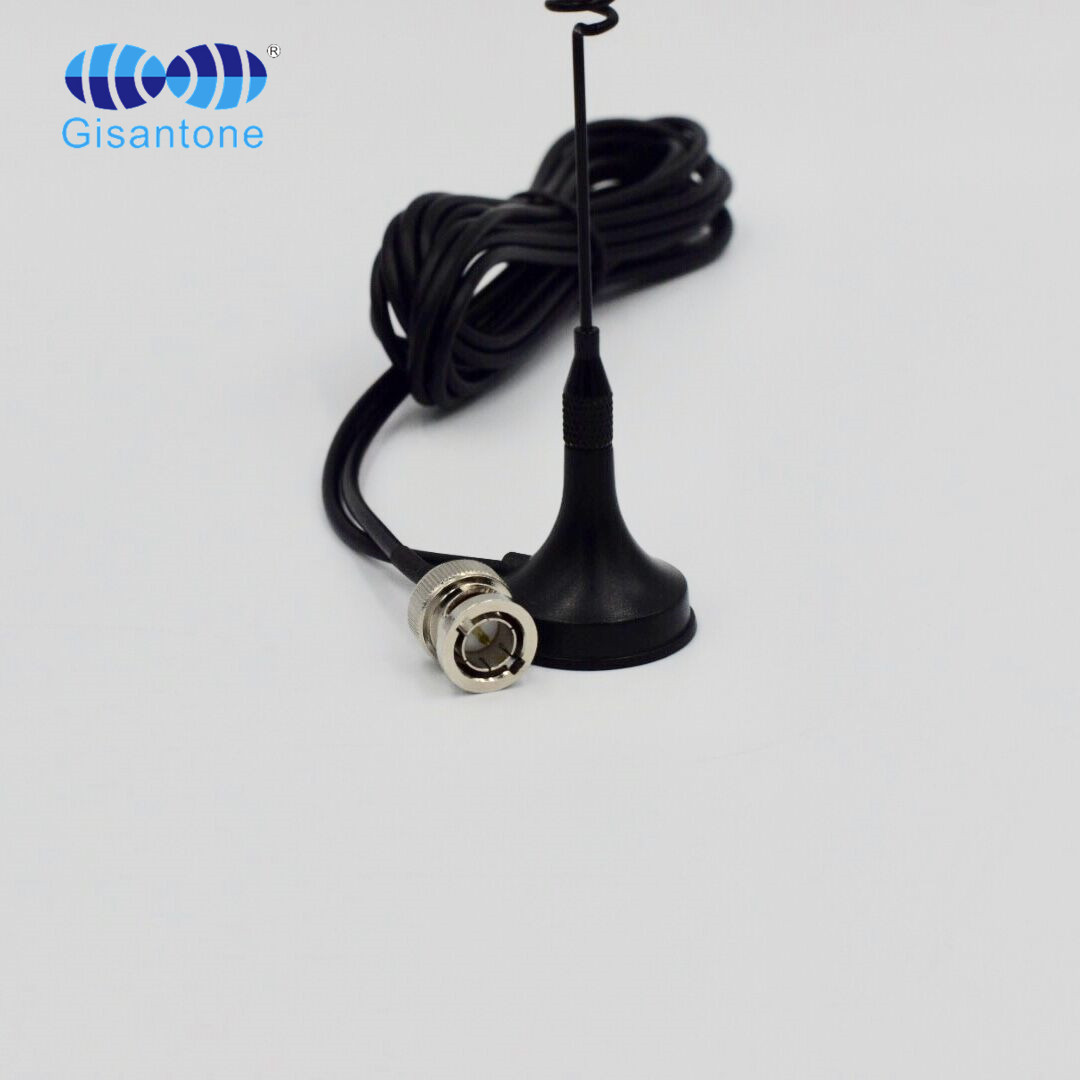

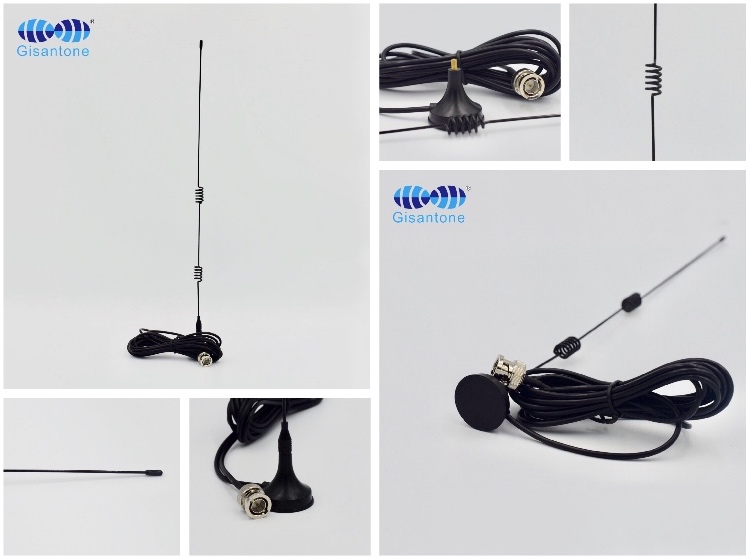

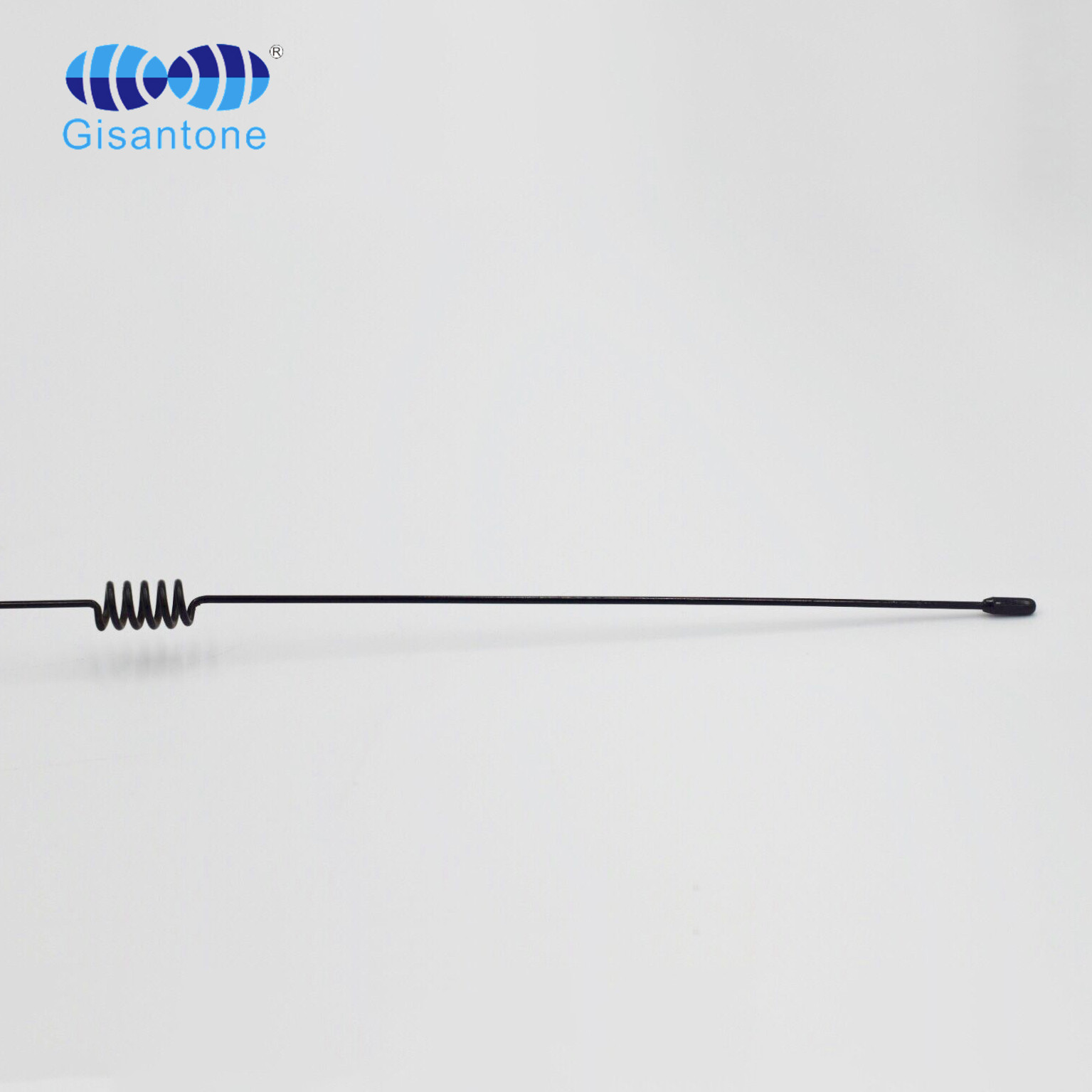

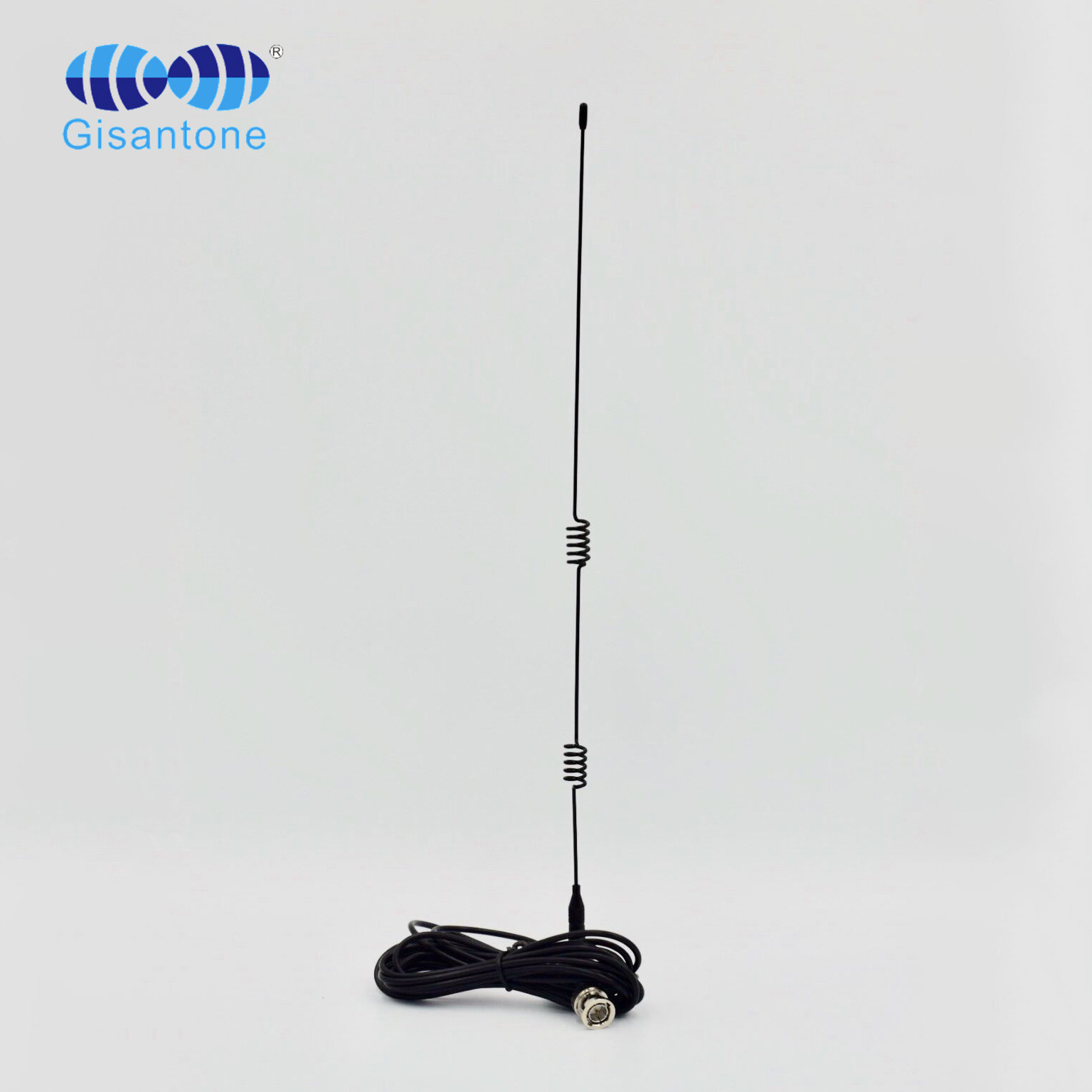

806-960MHz 7/8DBI Magnetic Antenna
- Model No.：
G15327I
- Frequency Range ：
806-960MHz
- Gain：
7/8DBI
- Cable Length：
3M RG174
- Connector：
BNC male
|
Electrical Specifications |
|
|
Model No. |
G15327I |
|
Frequency Range |
806-960MHz |
|
Gain |
7/8Dbi |
|
VSWR |
≤2.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
80° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
BNC male |
|
Cable Type |
RG174 Black |
|
Cable Length |
3.0±0.02M |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
70g |
|
Size |
Φ30*(362±3) (mm) |
|
Mounting |
Magnetic Base |
|
Color |
Black |
806-960MHz 7/8DBI Magnetic Antenna
