GSM Terminal Antenna
930-960MHz 3DBI whip antenna
  • Name:

    930-960MHz 3DBI whip antenna

  • Model No.:

    G15512B

  • Frequency Range :

    930-960MHz

  • Gain:

    3DBI

  • Cable Length:

    /

  • Connector:

    SMA male

Share:
Product parameters

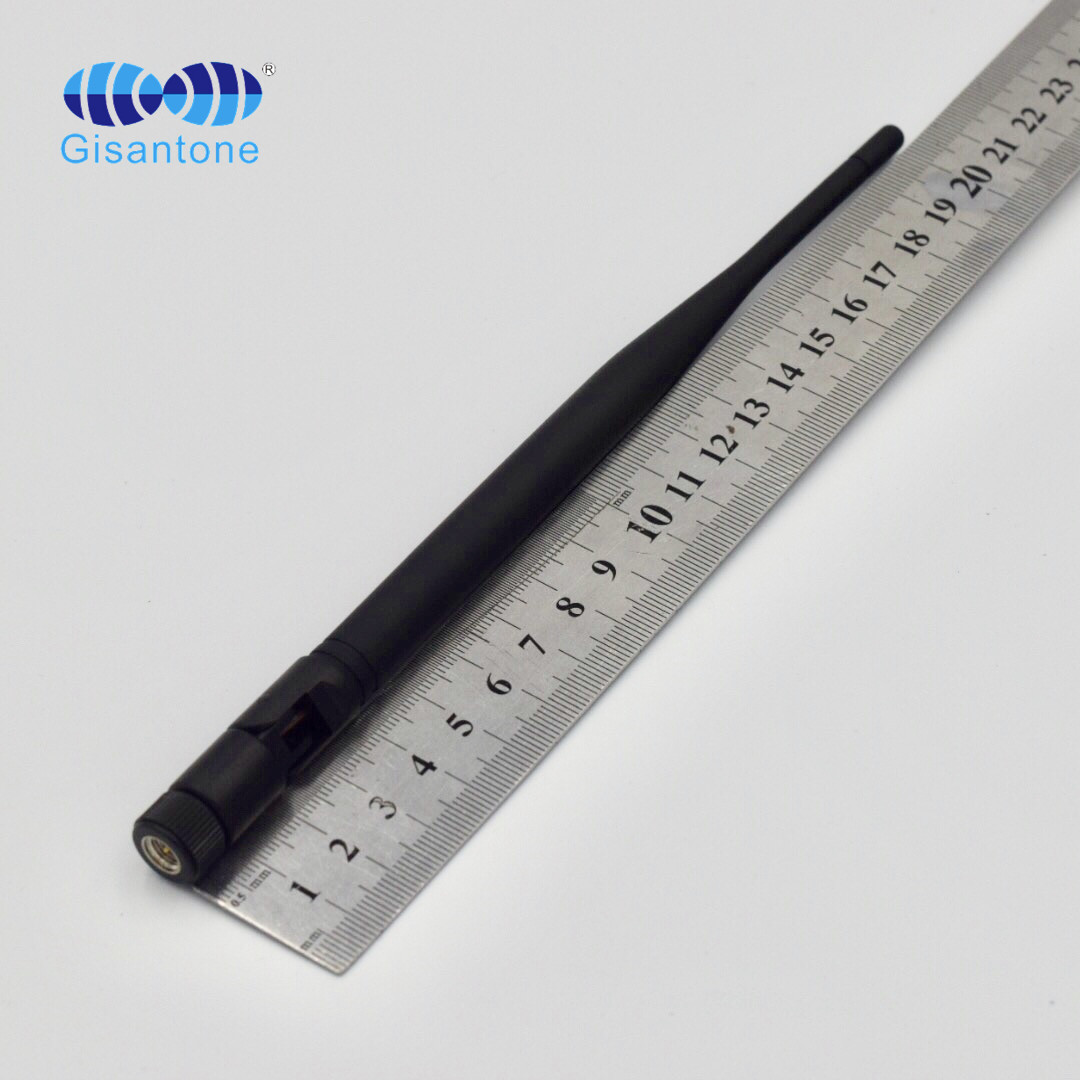

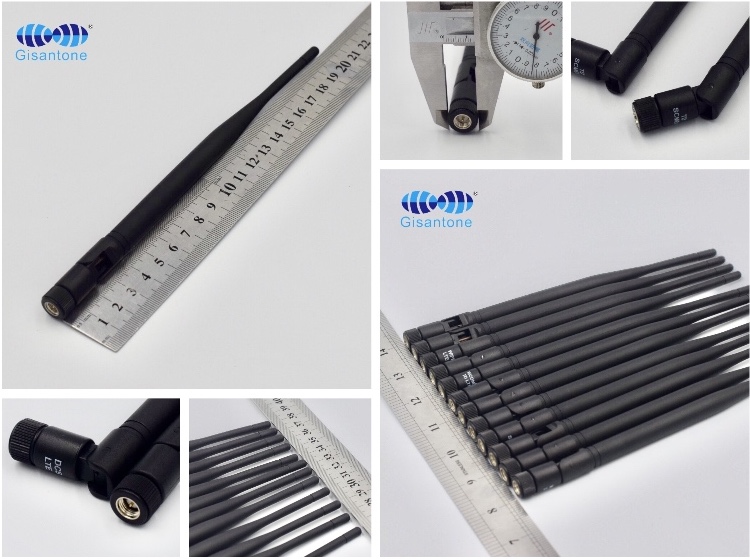

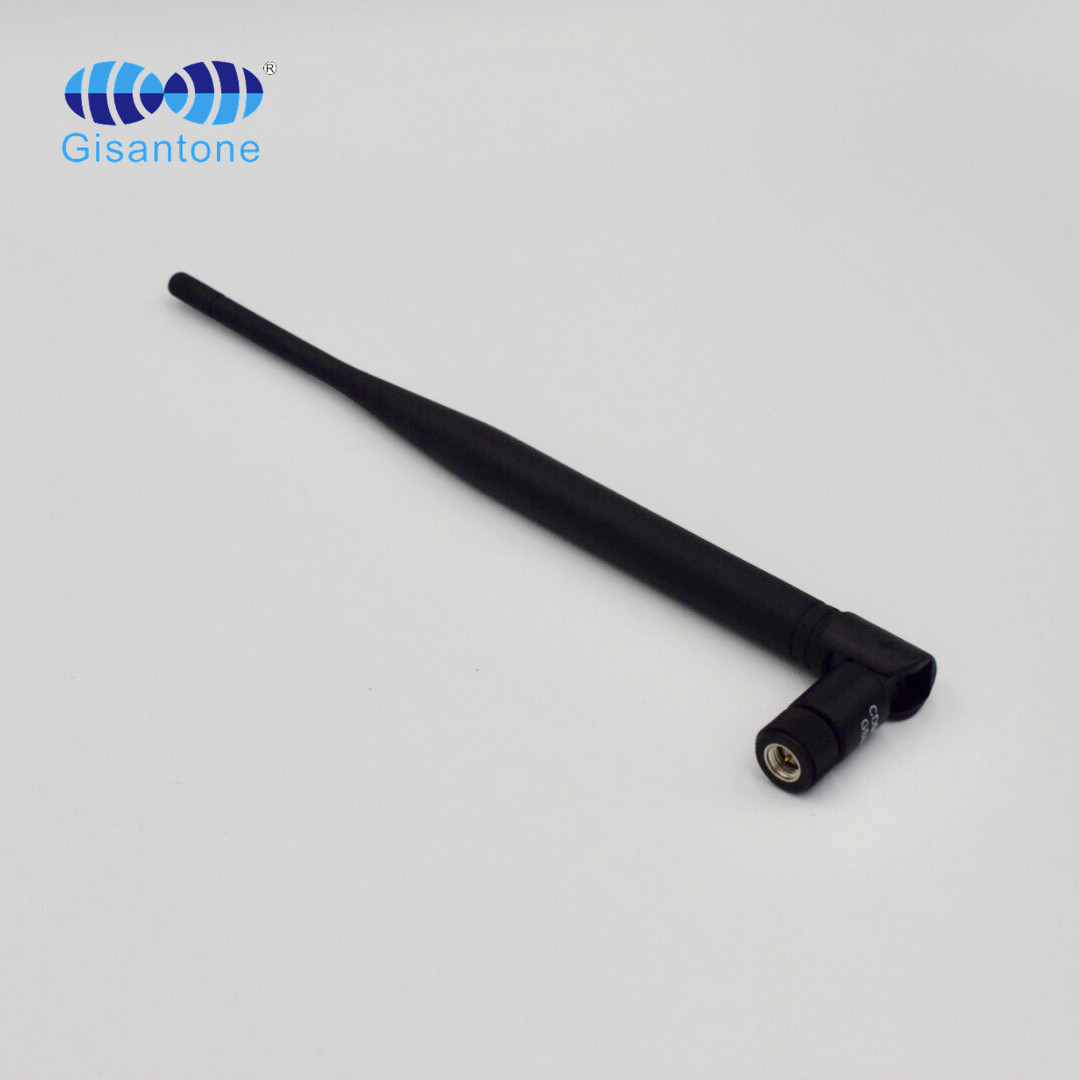

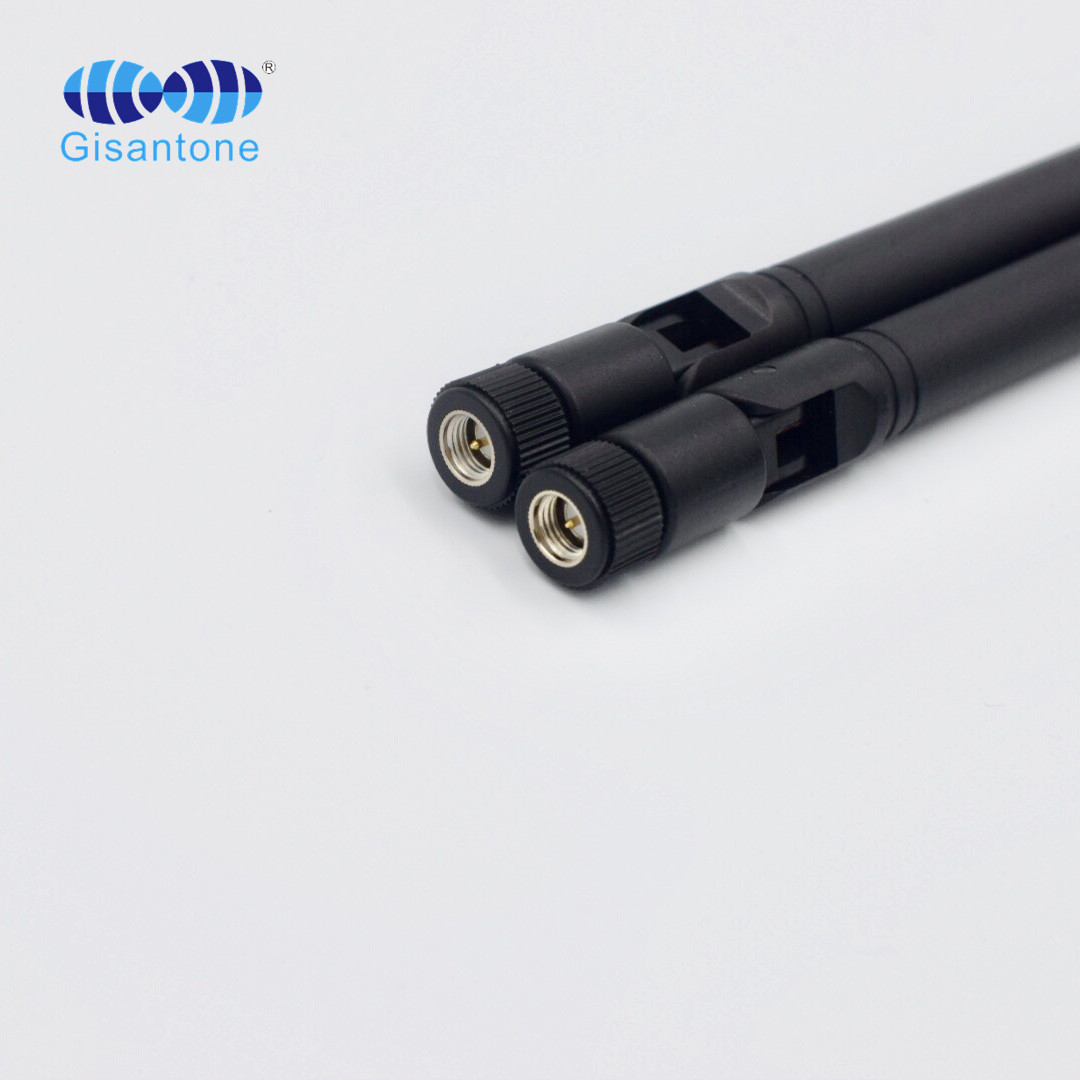

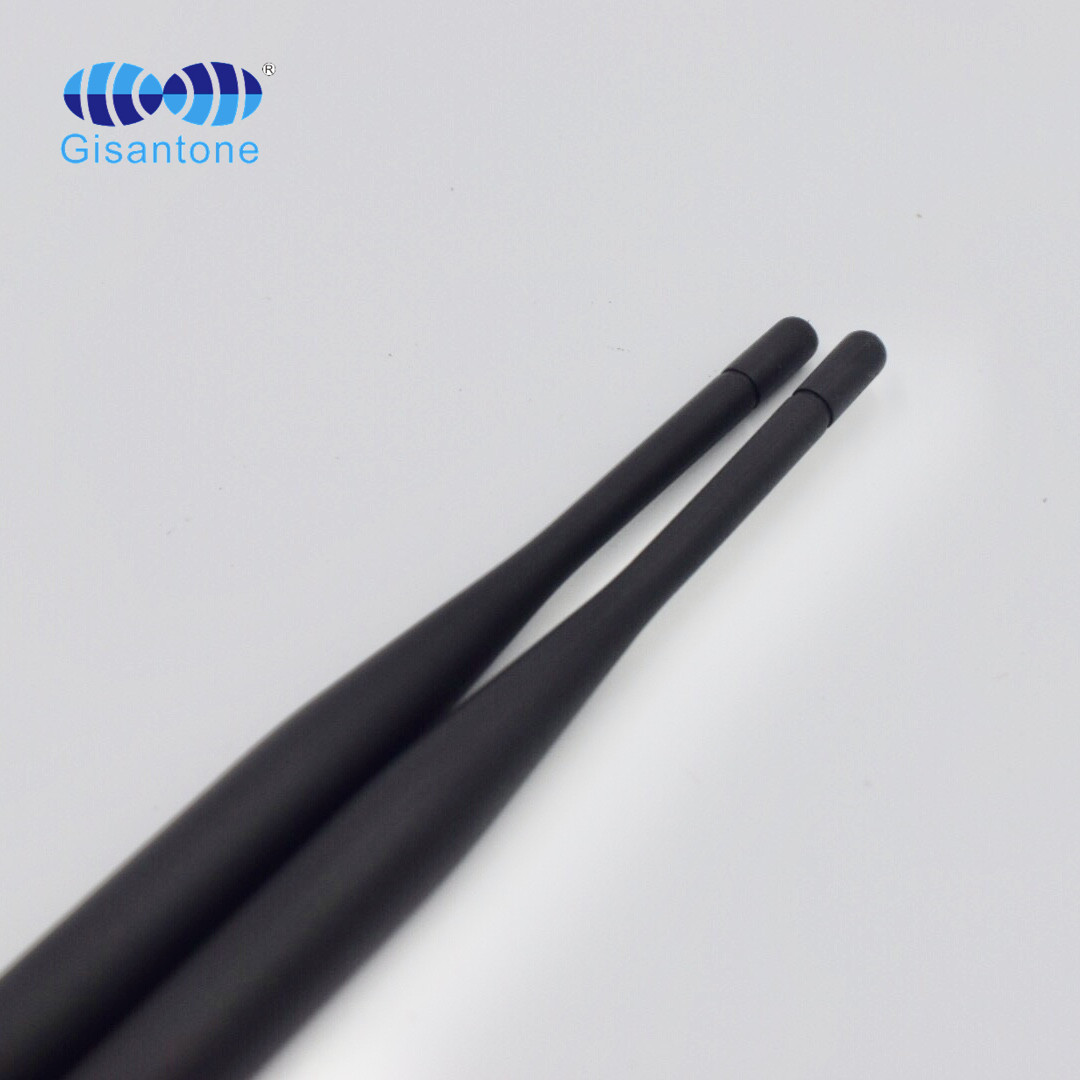

Production photos
Download

Electrical Specifications

Model No.

G15512B

Frequency Range

930-960MHz

Gain

3Dbi

VSWR

≤1.5

Input Impedance

50Ω

Polarization

Vertical

Horizontal Half Power Angle

360°

Max Input Power

30W

Lightning Protection

DC Ground

Mechanical Specifications

Connector Type

SMA-J

Working Temperature

-40~65

Antenna Weight

17g

Size

Φ13*(205±1)mm

Color

Black

Package Size

43*27*24CM

Package Weight

8KG
