- Name：

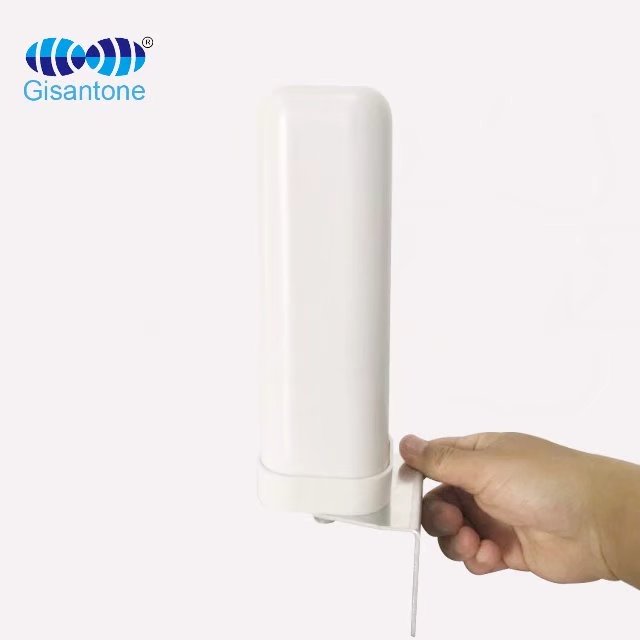

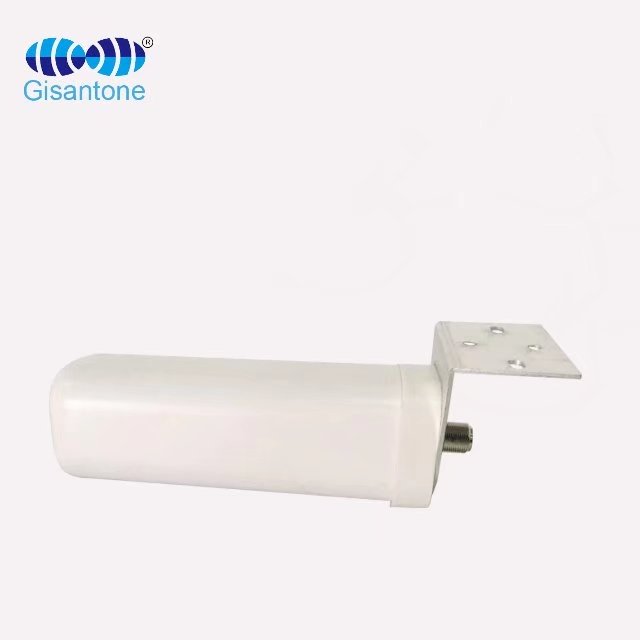

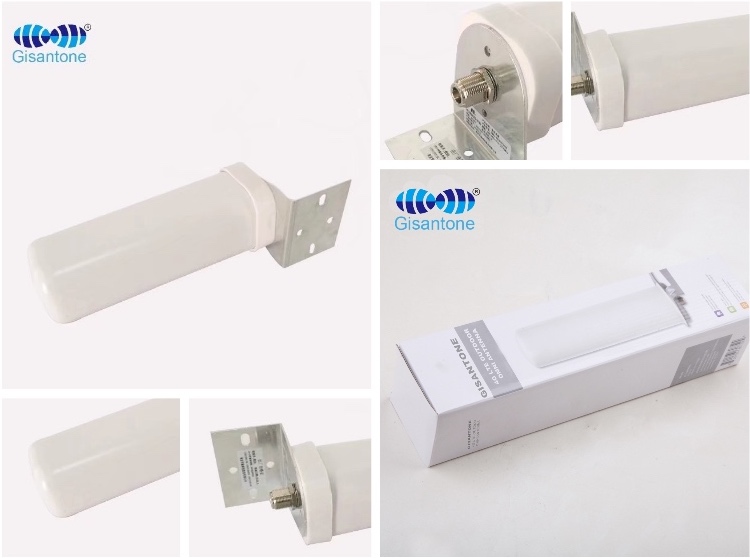

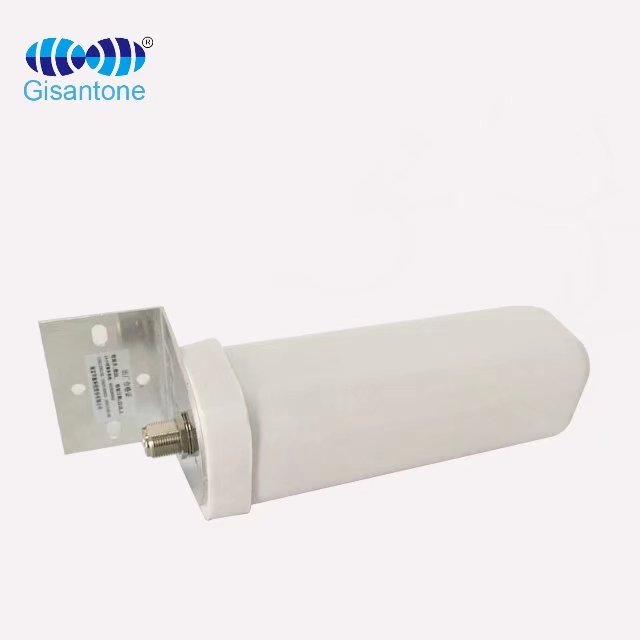

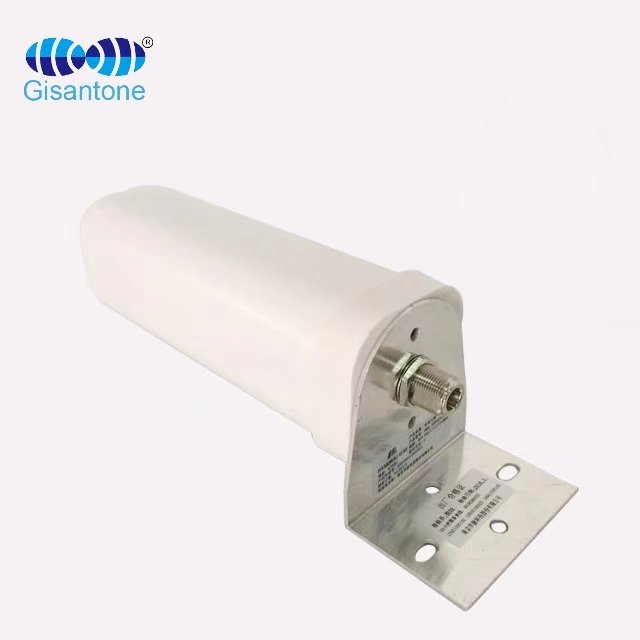

800/2700MHz 3/5DBI Fiberglass Antenna
- Model No.：
G14110B
- Frequency Range ：
800-960/1710-2700MHz
- Gain：
3/5DBi
- Connector：
N-K
|
Electrical Specifications |
|
|
Model No. |
G14110B |
|
Frequency Range |
800-960/1710-2700MHz |
|
Gain |
3/5dBi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
PIMD 3th(2*33dBm) |
≤-107dBm |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
70/50° |
|
Max Input Power |
100W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Connector Type |
N female |
|
Antenna Weight |
0.37kg |
|
Size |
Φ75x250x85mm |
|
Pole Diameter |
Φ35~55mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna Cover Material |
ABS |
|
Color |
White |
|
Package Size |
54*46*41CM / 40PCS |
|
Weight |
14KG |
800/2700MHz 3/5DBI Fiberglass Antenna
