- Name：

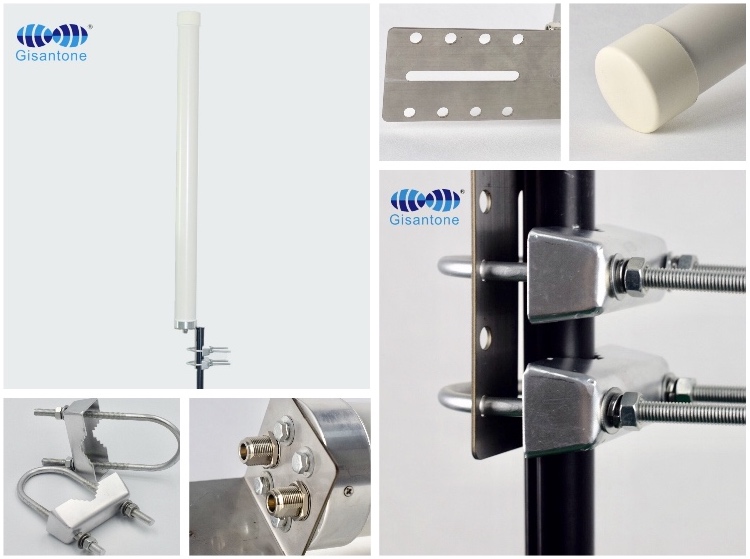

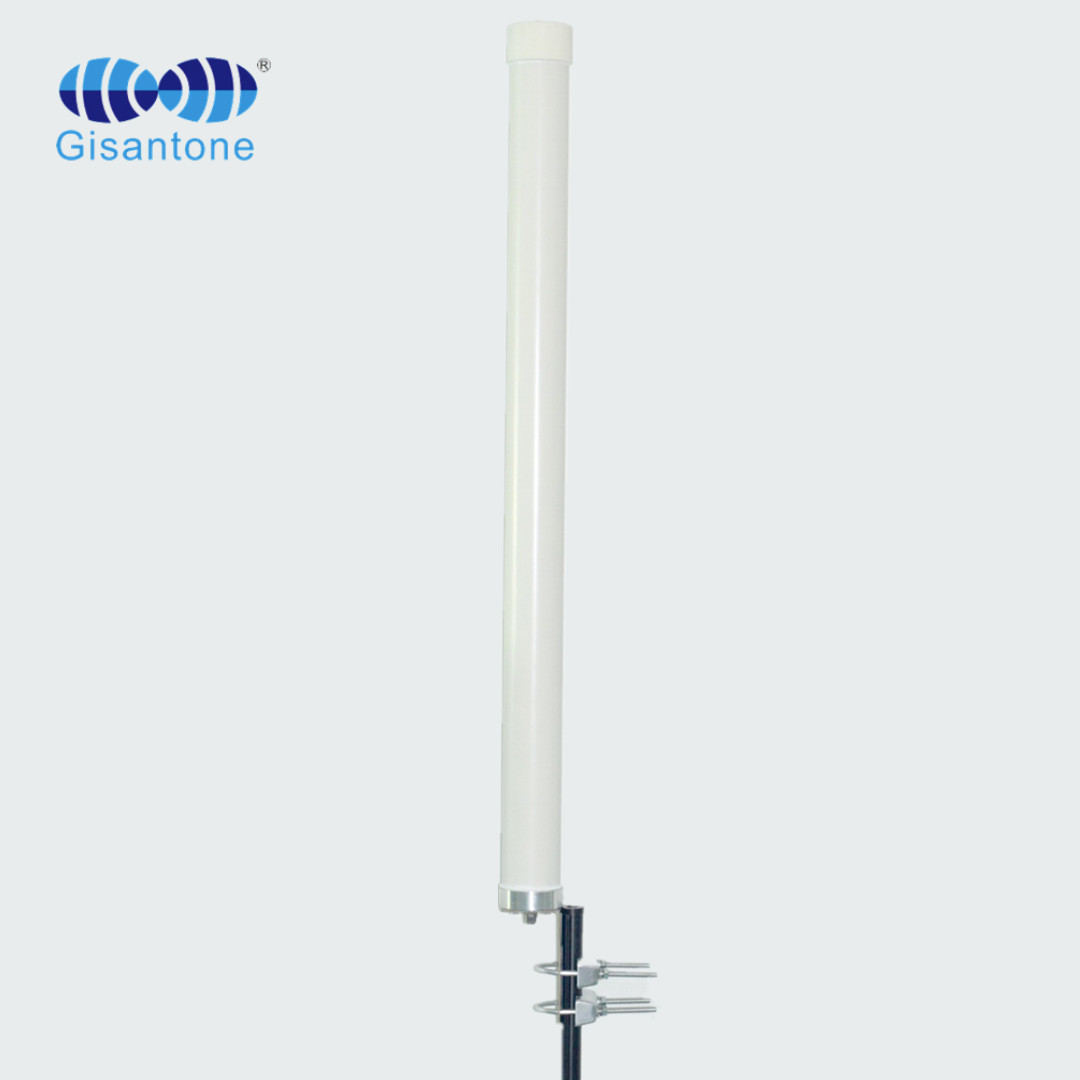

2.4MHz 15DBI MIMO fiberglass antenna
- Model No.：
G17103A
- Frequency Range ：
2400-2500MHz
- Gain：
2*15DBI
- Cable Length：
/

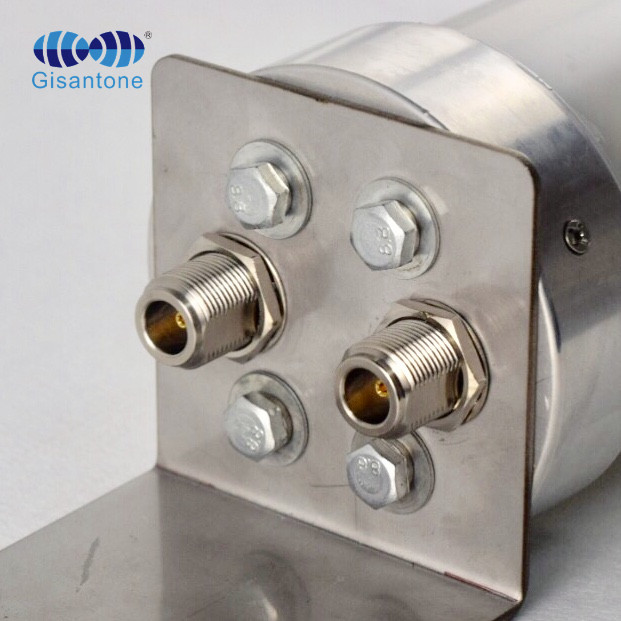

- Connector：
2* N female
|
Electrical Specifications |
|
|
Model No. |
G17103A |
|
Frequency Range |
2400-2500MHz |
|
Gain |
2*15Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
6° |
|
Front to Back Ratio |
≥15dB |
|
Max Input Power |
100W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
2*N female |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
2.85kg |
|
Size |
Φ75*1265mm |
|
Rated Wind Velocity |
210km/h |
|
Cover Material |
PVC |
|
Color |
White |
2.4MHz 15DBI MIMO fiberglass antenna
